Maintenance 5
Controls
Controls

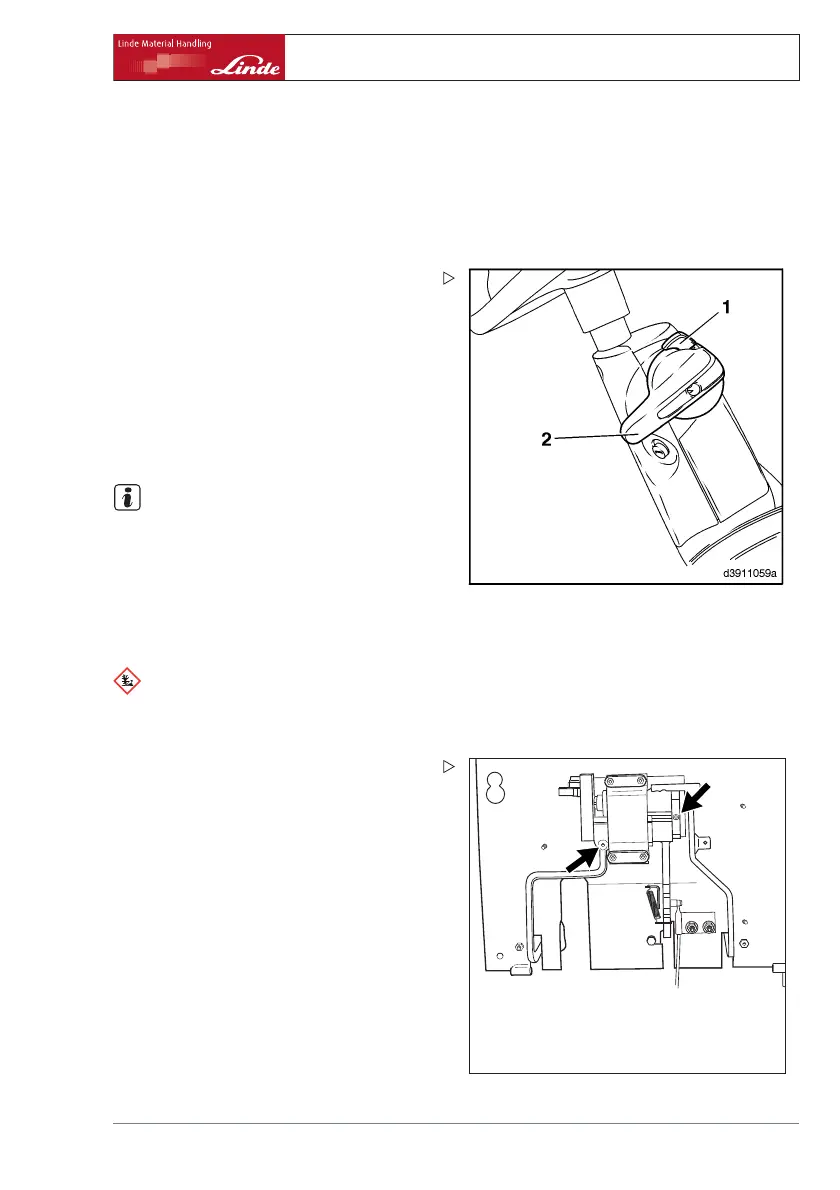

Checking the parking brake for
correct operation
¾ Drive the fork lift truck, carrying its maximum
load, up a gradient of 15 %.
¾ Place the parking brake (2) in a horizontal
position.
The vehicle must remain st
ationary.
¾ Switch off the engine.
¾ Press the button (1) and unlock the parking
brake lever (2).
¾ Move the parking brake 9
0° downwards.
The vehicle must remain stationary.
NOTE
If the parking brake fa
ils this test, contact your
authorised dealer.
Checking the pedals
ENVIRONMENT NOTE
Observe information regarding working with
consumables.
d3921378
¾ Lift up the floorplate and secure in place.
¾ Unscrew the 4 nuts of the pedal box.
¾ Check pedals for smooth action.
¾ If necessary, grease the bearings slightly.
¾ Re-attach the pedal box.
Operating Instructions – 394 807 10 01 EN – 07/2011 169
