3 Overview
Switch panel
Switch panel

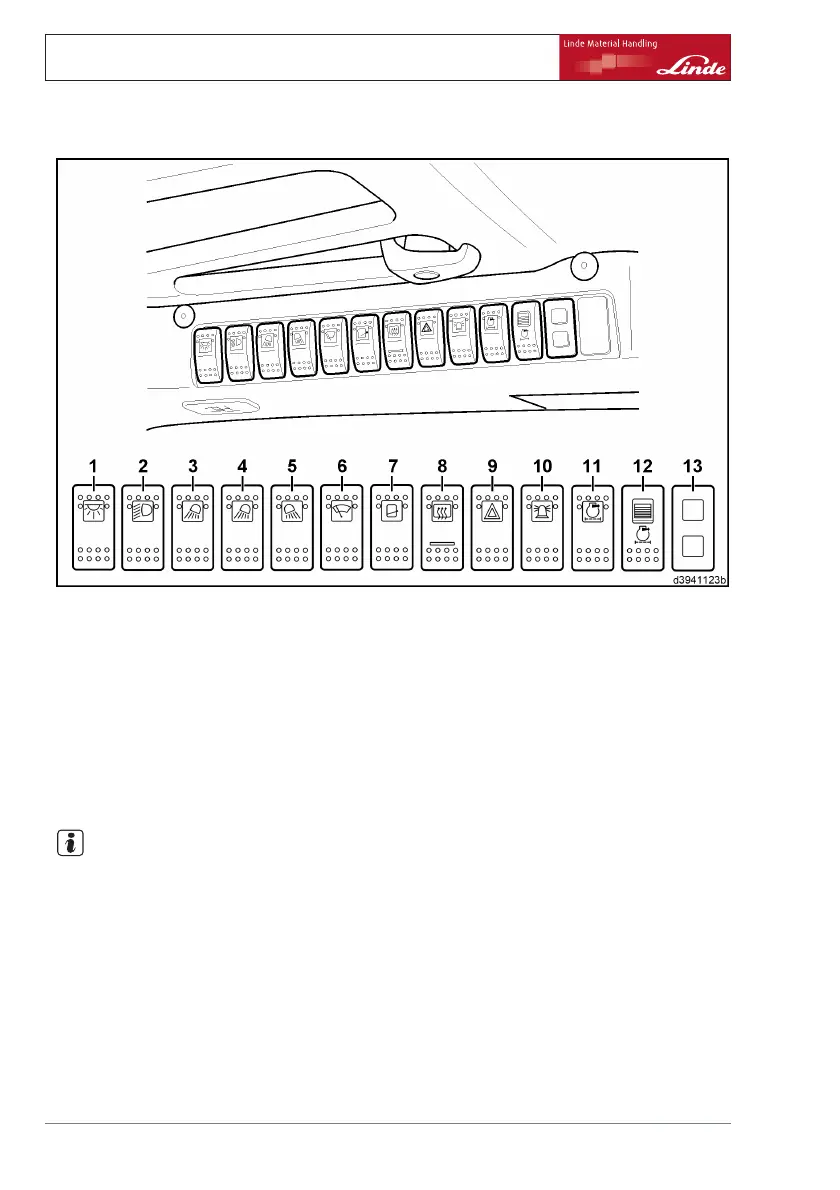

The switch panel is mounted at the top right of the
overhead guard.
1 Interior lighting
2 Standard or higher lighting
3 Working spotlight position 1/2
4 Working spotlight position 3/4 or working
spotlight position 5/6
5 Working spotlight position 7/8
6 Front windscreen wiper and rear window
wiper — continuous operation on/off (inter-
val depends on the drive direction and the
washer system is always activated)
7 Roof panel wiper - intermittent mode or
continuous operation on/off (washer system
is activated)
8 Rear window heating
9 Hazard warning light
10 Rotating beacon or flashing beacon
11 Particle filter starting switch
12 Particle filter stop/reset switch
13 Changing particle filter system error light
NOTE
The configuration of the switch panel and
arrangement of individual switches may vary,
depending on the version. Observe the switch
symbols.
28 Operating Instructions – 394 807 10 01 EN – 07/2011
