Linde H45D - General View

3 Overview

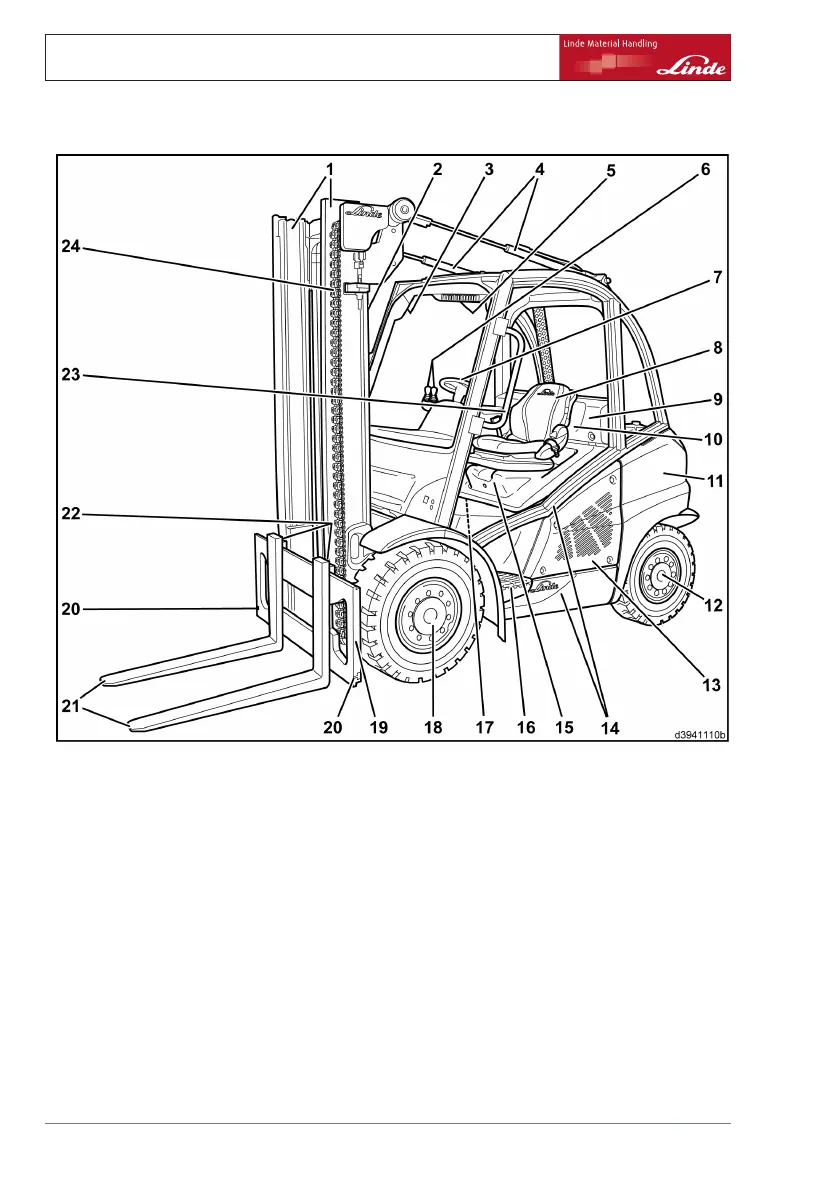

General view
General view
1Liftmast
2 Lift cylinder
3 Composite instrument
4 Tilt cylinders
5 Switch panel for toggle switch (special
equipment)
6 Joystick
7 Steering wheel/hydrostatic power steering
8 Operator’s seat
9 Electrical system cover
10 Fuses (behind the electrical system cover)
11 Counterweight
12 Steering axle
13 Access cover
14 Chassis and overhead guard
15 Bonnet
16 Step for mounting and dismounting
17 Fuses (in the engine compartment)
18 Left drive unit
19 Fork carriage
20 Fork quick-releases
21 Forks
22 Fork stops
23 Handhold for entering and exiting the truck
(special equipment)
24 Lift mast chain
20 Operating Instructions – 394 807 10 01 EN – 07/2011
