Operation 4
Working under load

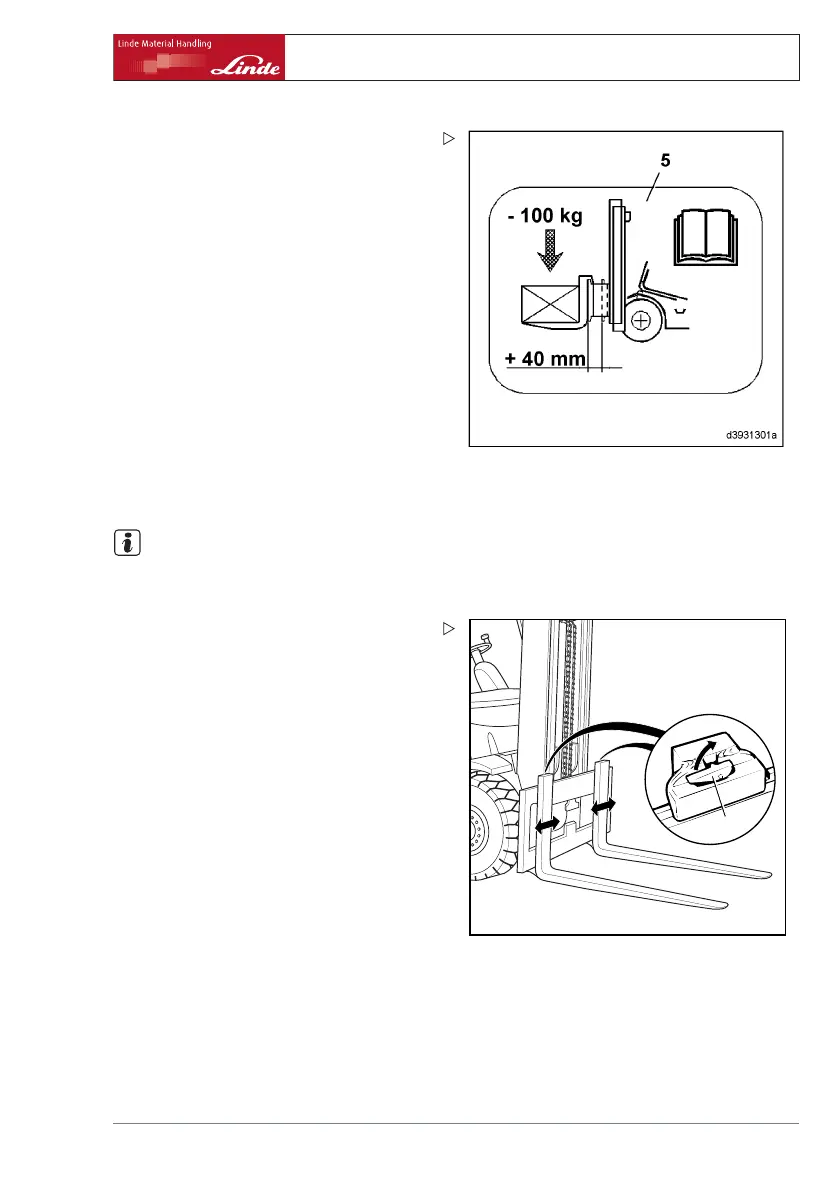

¾ In addition, affix the label (5) next to the
basic load capacity diagram.
Adjusting the fork
spread
NOTE
The load centre should be in the centre
between the forks.
d3921429
1
¾ Raise the fork quick-release levers(1).
¾ Move the forks f
urther apart or closer
together depen
ding to the size of the load to
be lifted.
Make sure that both forks are equally distant
from the truck centre.
¾ Allow the quick-release levers to engage in
a notch on the fork carriage.
Operating Instructions – 394 807 10 01 EN – 07/2011 93
