Maintenance 5
Engine
d3941380

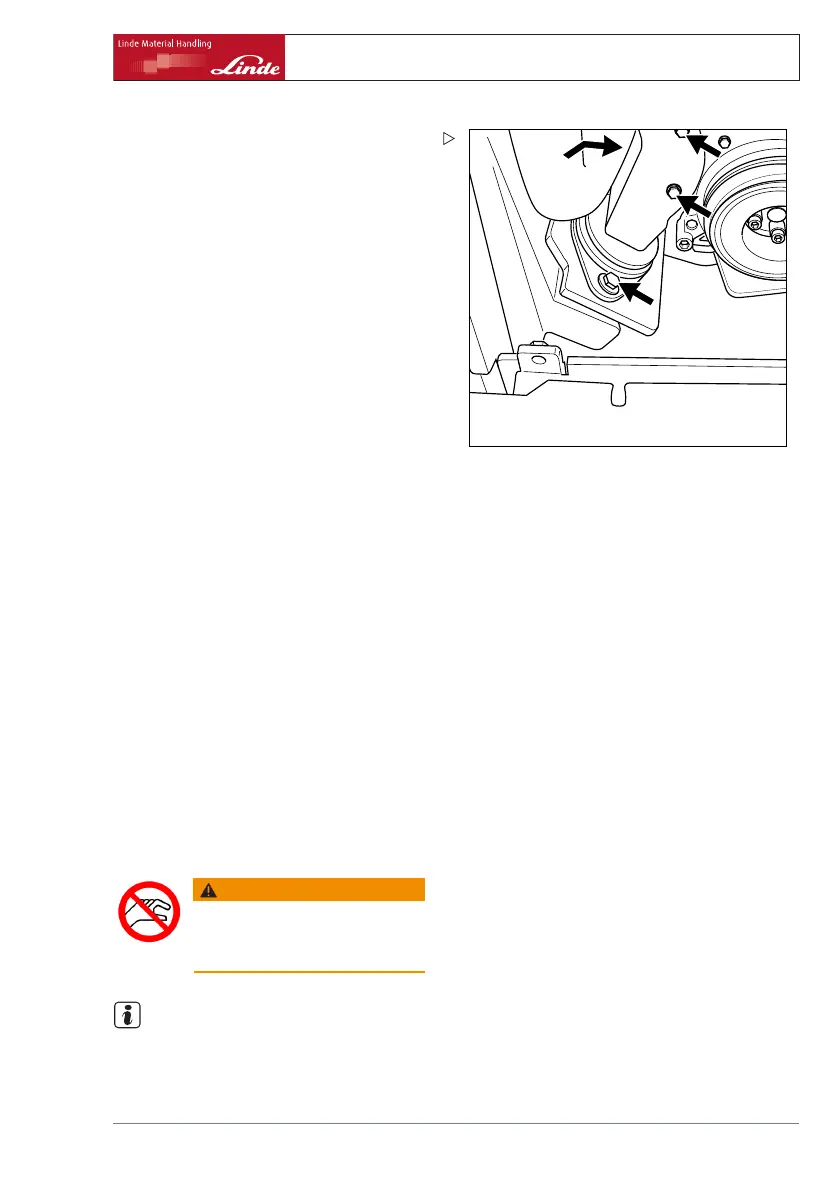

¾ Check rubber elements for cracks and se-
vere deformation; if necessary, exchange
them.
Please contact your authorised dealer.
¾ Check all screws and nuts in the
engine
support and engine mounts for d
amage.
Check that they are securely
attached.
Tightening torques of the mounting screws
and nuts:
Engine, right:
1 SKS M 8 (rear)
23 Nm
2 ZS M 10 (rear)
46 Nm
2 ZS M 10 (side)
46 Nm
1 SKM M 12 (bottom)
110 Nm
2 SKS M 12 (spring element)
80 Nm
Engine, left:
1 SKS M 12 (spring element)
80 Nm
1 SKM M 12 (bottom)
110 Nm
Engine, top middle:
1 spherical collar nut A 14
(rod)
110 Nm
2 SKS M 12 (spring element)
80 Nm
Check condition of the ribbed vee
belt
WARNING
Do not touch rotating parts!
Switch off the engine and take the
key out of the ignition switch.
NOTE
A defective or loose ribbed vee belt will cause
the vehicle electrical voltage to be too low.
Operating Instructions – 394 807 10 01 EN – 07/2011 135
