Additional capacity rating plate for attachments
Additional capacity rating plate
for attachments
DANGER
The entries in the following capacity rating plates
are examples. The information will vary depending
on the truck series, lift mast series, truck equipment
and attachment. If an attachment is fitted, an
additional capacity rating plate must be attached
to your truck within the driver’s field of vision.
If the plate is missing or the information about
the truck equipment, attachments, load data etc.
is not accurate, please contact your authorised
dealer, who will calculate the data using a program
authorised by Linde.

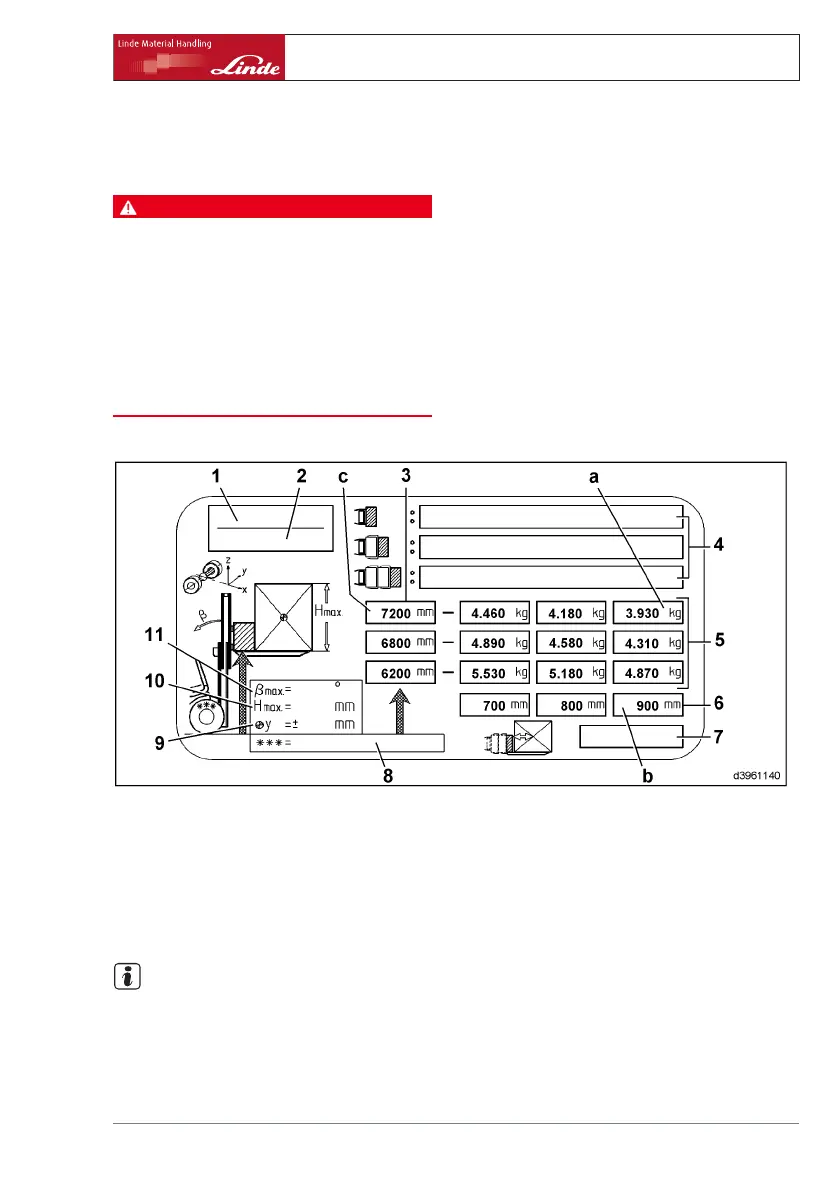

Additional capacity rating plate for attachments with loads that are not clamped
1 Truck series (year of manufacture, from - to)
2 Liftmasttype(series)
3 Lift heights
4 Attachments
5 Load capacities
6 Load centres of gravity
7 Reference number and note about person
calculating the load capacity
8 Front tyres
9 Maximum permissible centre offset of load
10 Maximum permissible load height
11 Maximum permissible backward tilt of lift
mast
NOTE
Example for reading the load capacity:
•
a = 3930 kg at load centre of gravity b =
900 mm to lift height c = 7200 mm.
