2 Safety
Emergency exit with attached rear window
1
3
2
d3941386

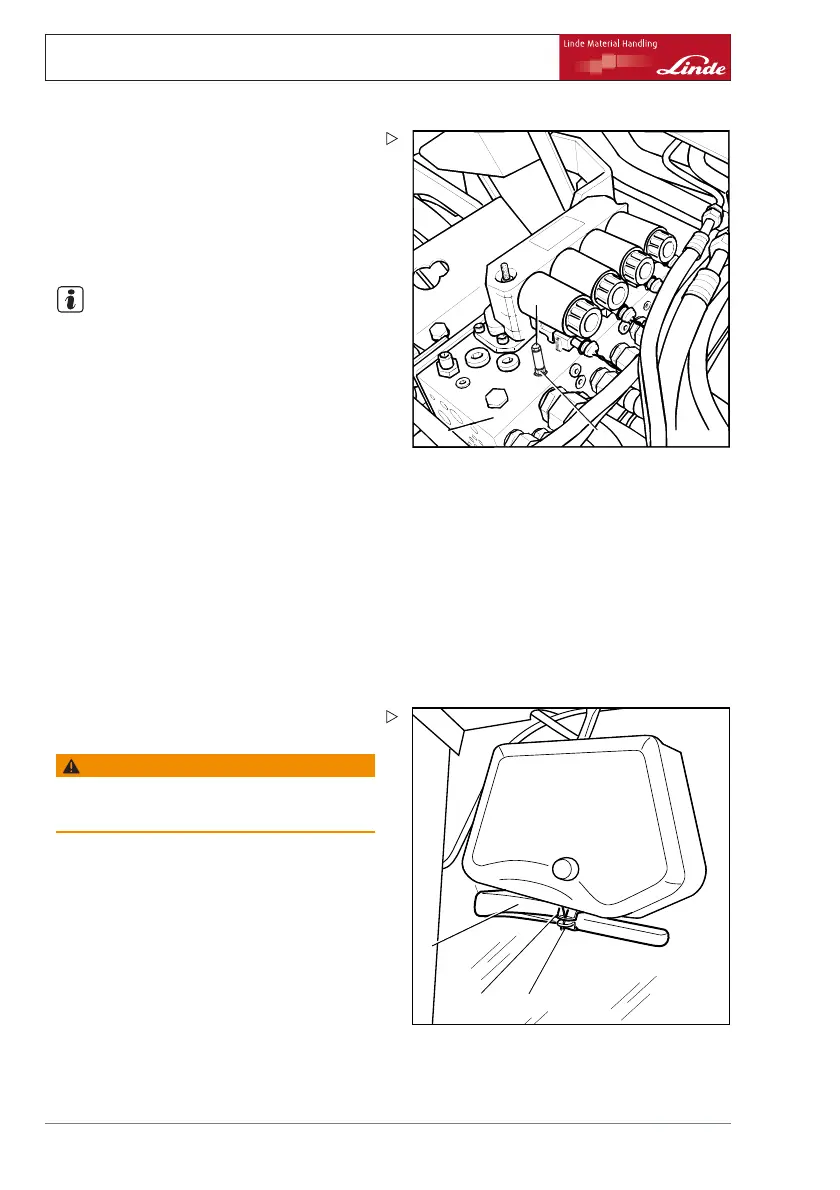

¾ Screw the threaded stud (1) back in clock-
wise. Otherwise it will not be possible to lift
the fork carriage using the joystick.
Tightening torque 10 Nm.
¾ Retighten the self locking nut
(2).
Tightening torque 9.5 Nm
NOTE
After emergency lowering
has been perfor-
med three times, a new thre
aded stud with self
locking nut must be used.
¾ Close the bottom plate and bonnet.
¾ Insert the floormat.
Emergency exit wi
th attached
rear window
If a truck with a
n attached front and rear
window breaks d
own in a narrow aisle, the
driver may poss
ibly be unable to exit the truck
at the side. In t
he event of acute danger, the
driver can exit
the truck via the rear window.
For this purpos
e, the rear window must be
broken with an e
mergency hammer.
t3921371
1
2
3
¾ Bend open split pin (1) from the support
mounting (2) under the rear wiper motor.
WARNING
Glass splinters may cause injuries.
Remove glass splinters carefully.
¾ Take the emergency hammer (3) out of the
support mounting and carefully break the
rear window.
¾ Climb out carefully.
16 Operating Instructions – 394 807 10 01 EN – 07/2011
