Maintenance 5
Load lift system
d3921482
1
2

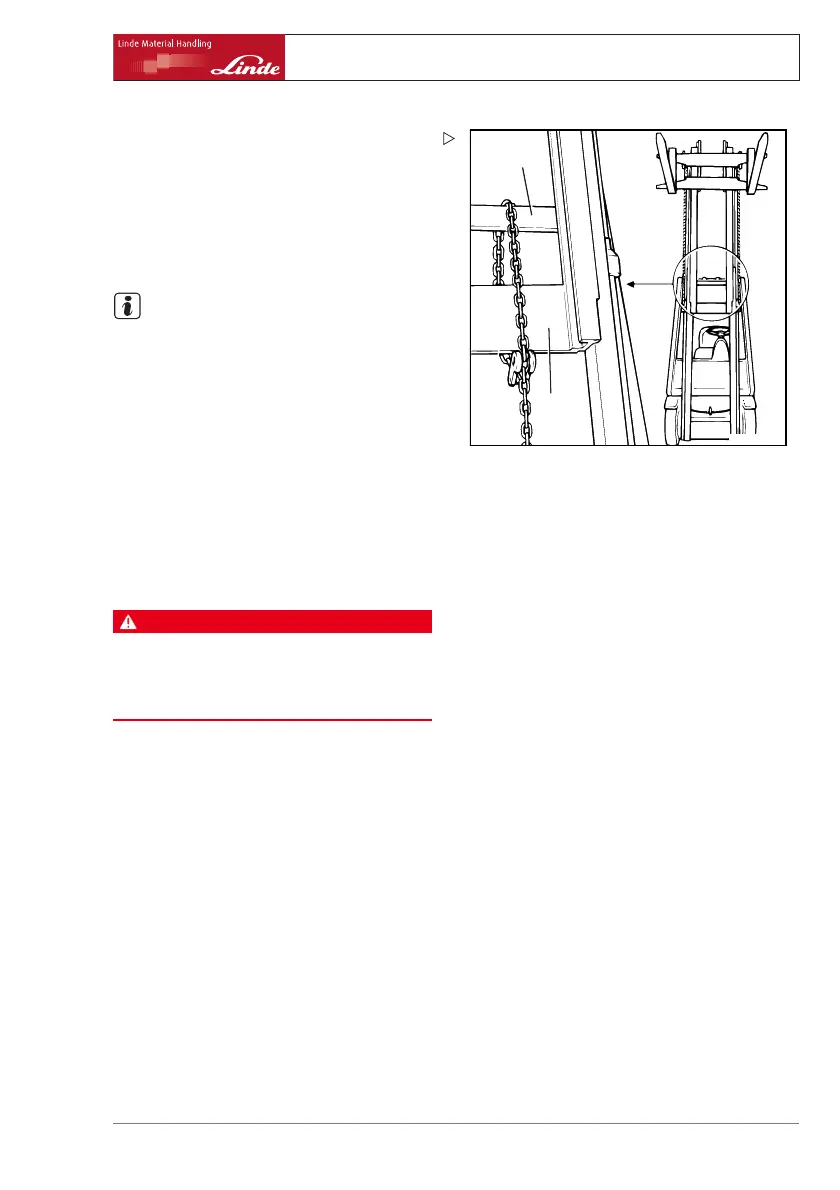

¾ Connect the chain over the cross beam of
the outer mast (1) and under the cross beam
of the inner mast (2).
¾ Lower the inner mast until it reaches the
chain.
Duplex lift mast
NOTE
The advantage of this version is that full
advantage is taken of the special free lift height
even in very low rooms (cellars, wagons,
ships).
FUNCTION: The fork carriage is lifted to the
special free lift height via the chain guide pulley
of the centre cylinder. Here it moves twice as
fast as the centre cylinder. The inner mast is
then lifted via the two outer cylinders, taking
the fork carriage with it. The centre cylinder is
positioned on the extendable inner mast.
Securing the raised duplex lift mast
DANGER
Check chain load!
Select the safety chain with sufficient load-bearing
capacity for the respective lift mast. Take the
maximum lift height into account.
¾ Extend the lift mast.
Operating Instructions – 394 807 10 01 EN – 07/2011 183
