CHAPTER 3B ENGINE 50cc/80cc ATV SERVICE MANUAL09.0
CHAPTER 3B ENGINE PAGE 3B - 45 -

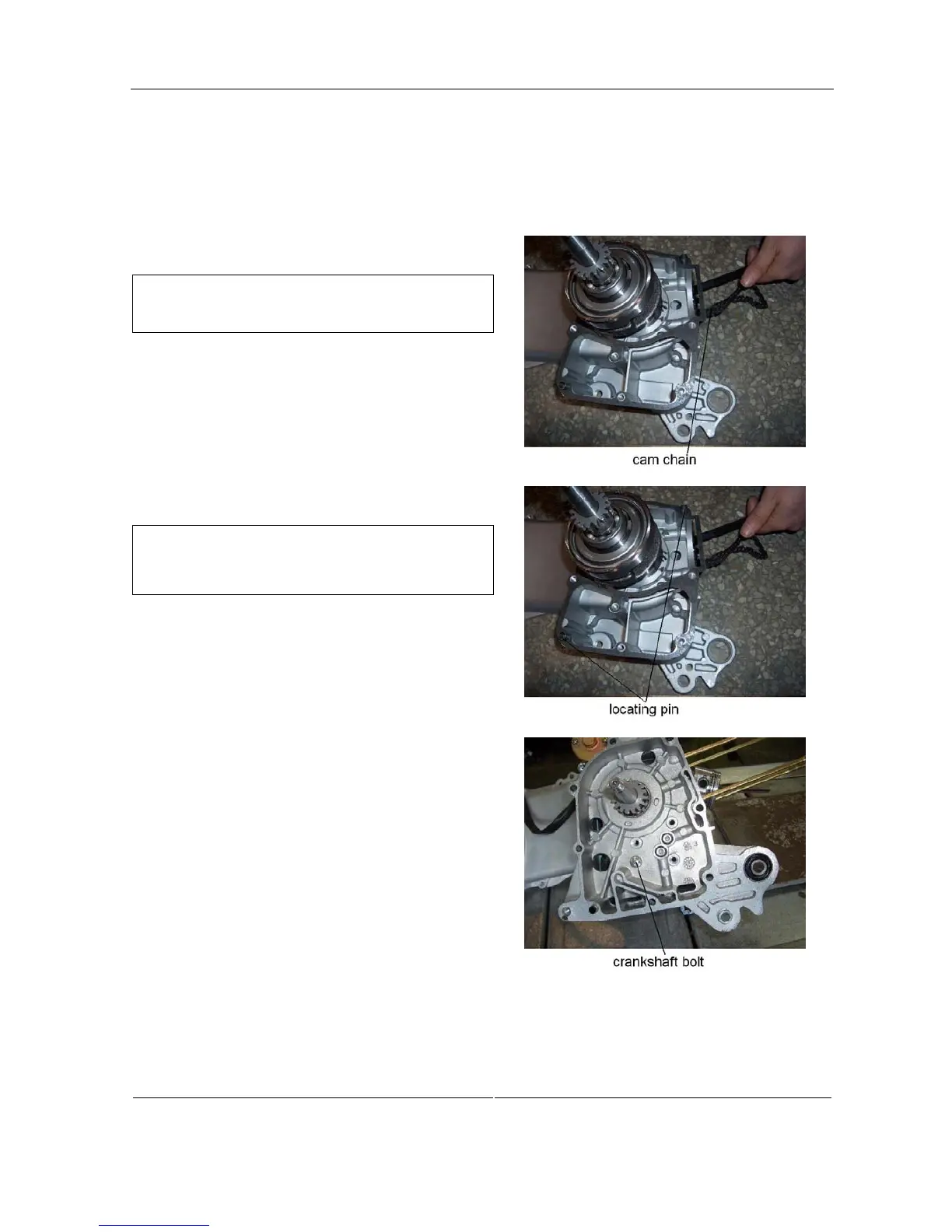

Install the cam chain into the left crankcase.
Assemble the crankshaft into the left crankcase.
Attention:
Be sure not to let the chain damaged the oil seal.
Put the new locating pin and gasket onto the left
crankcase.
Attention:
Keep the left crankcase downward to assemble
with the right crankcase.
Tighten the bolts of the crankcase.
Torque:9N.m 6.6ft.lbs
Install the cam chain adjusting lever.
Install the O-ring onto the bolt of the chain
adjusting lever.
Coat the O-ring with oil, then lock it.
Torque:10N.m 7.4 ft·lbs
