CHAPTER 8 ELECTRICAL ATV SERVICE MANUAL 09.0
CHAPTER 8 ELECTRICAL PAGE.8-
3

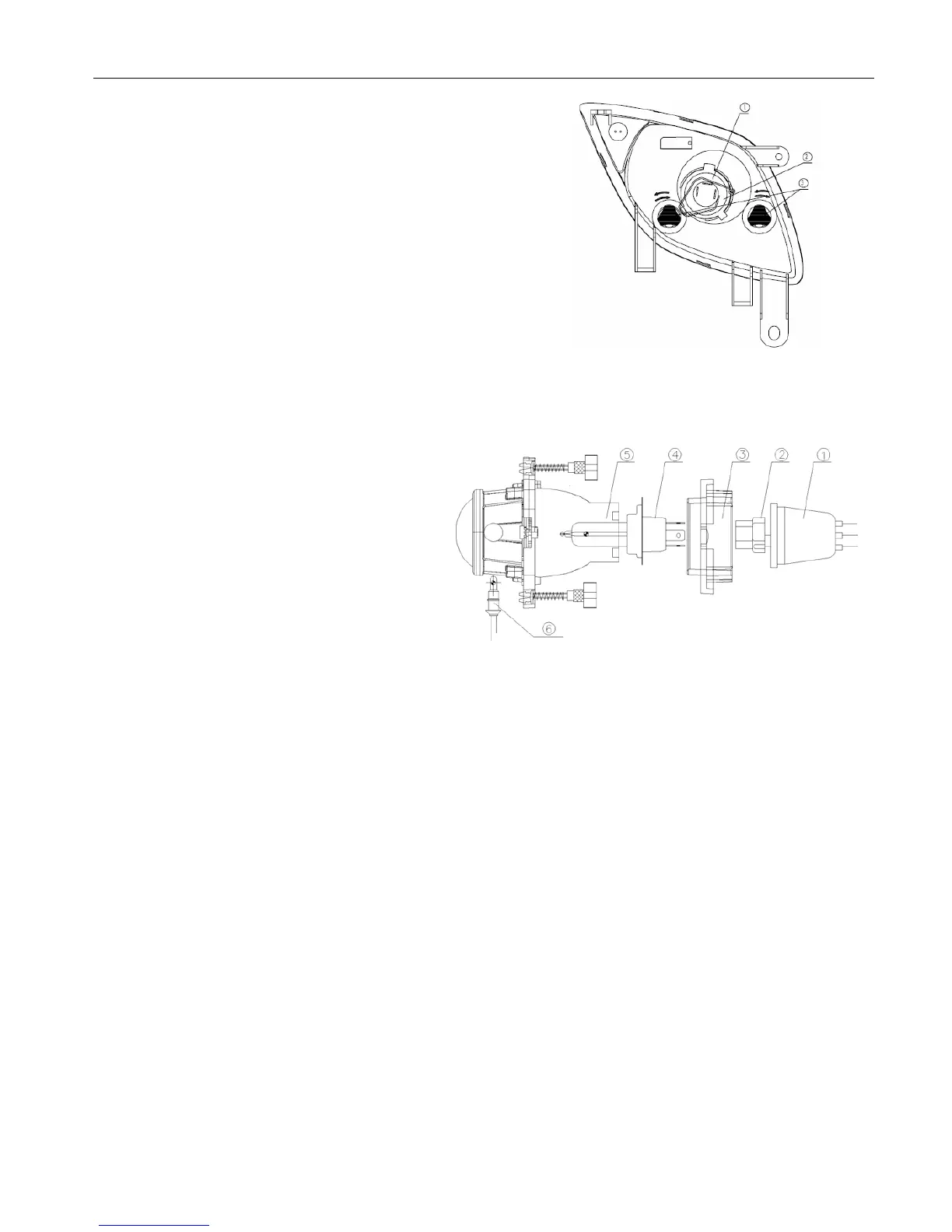

D. Special Edition – Anniversary and B-Type
/400ATV-2
1. Use bulb 12V 35W/35W.
2. Pull the cable plug off the conducting
strip in the socket, remove the clip① before
dismounting the bulb.
3. Fit a new bulb into the socket, sitting
properly in the three slots, install the
clip as shown in the fig. and connect
the cable plug to the conducting strip.
4. Change the bulb.
E. ATV400-2B
1. Use bulb 12V 35W/35W.
2. Pull the cable plug off the conducting
strip in the socket, remove the clip①
before
dismounting the bulb.
3. Fit a new bulb into the socket, sitting
properly in the three slots, install the
clip as shown in the fig. and connect
the cable plug to the conducting
strip.
4. Change the bulb.
HEADLIGHT ADJUSTMENT
1. The headlight beam can be adjusted vertically (all models) and horizontally (except the light on
handlebar).
2. Place the vehicle on a level surface with the headlight approximately 25’(7.6m) from a wall.
3. Measure the distance from the floor to the center of the headlight and make a mark on the wall at
the same height.
4. Start the engine and turn the headlight switch to high beam.
5. Observe headlight aim. The most intense part of the headlight beam should be aimed 2’ (51mm)
below the mark placed on the wall in step 2. NOTE : Riding weight must be included on the
seat.
6. Loosen but not remove pivot bolt/ screw and adjust beam to desired position.
7. Tighten nut and bolt / screw.
