CHAPTER 3A ENGINE 260/ 300 / 400 cc ATV SERVICE MANUAL09.0
CHAPTER 3 ENGINE PAGE. 3A- 15
5. Fill:
zCrankcase
Oil quantity:
1.4L
6. Check:
zEngine oil level
Refer to "ENGINE OIL LEVEL INSPECTION"
section

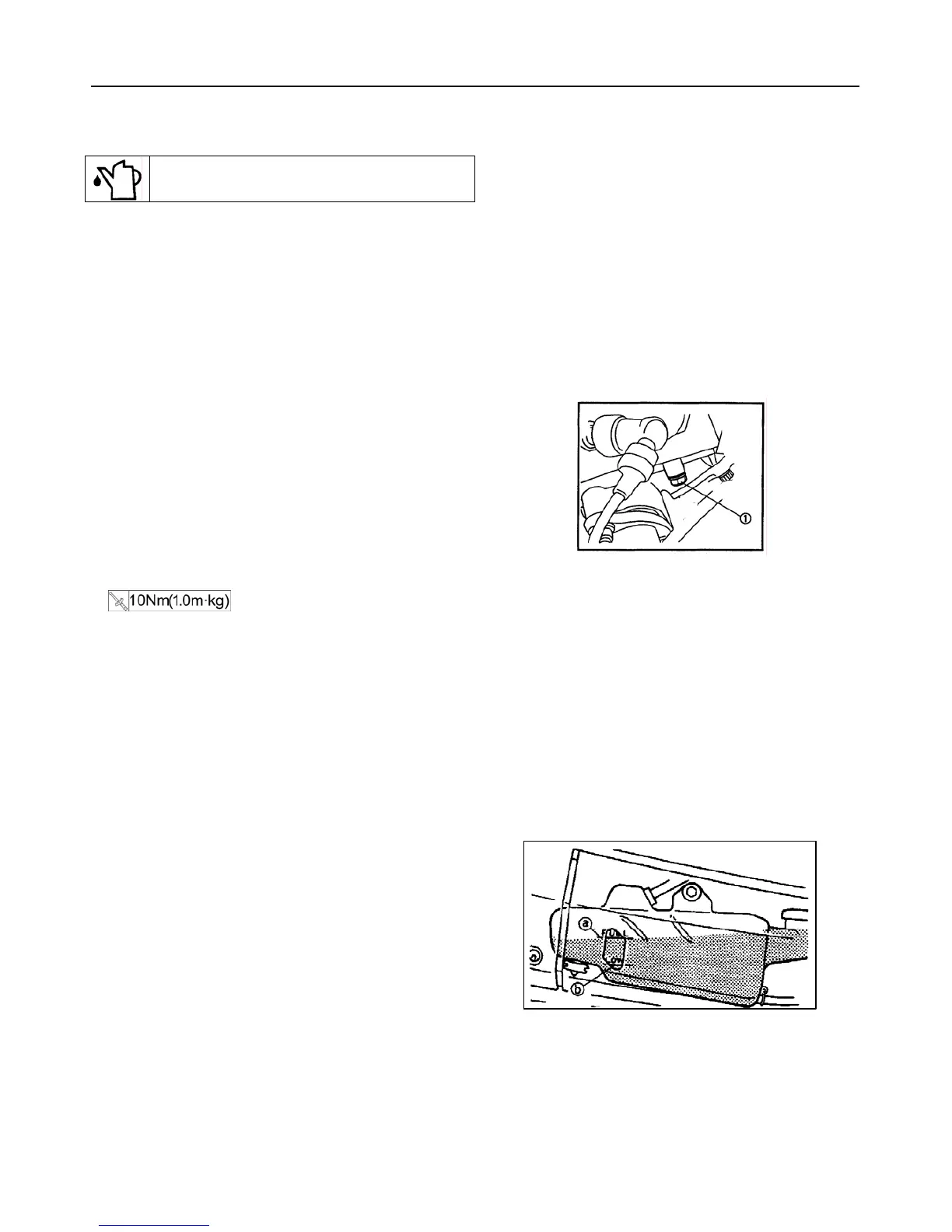

ENGINE OIL PRESSURE INSPECTION
Inspection steps:
zSlightly loosen the oil check bolt c
zStart the engine and keep it idling until the oil
begins to seep from the oil check bolt. If no oil
comes out after one minute, turn the engine off
so it will not seize.
zCheck oil passages and oil pump for dam age
or leakage.
zStart the engine after solving the problem (s),
and recheck the oil pressure.
zTighten the oil check bolt to specification.
CAUTION:
zStart the engine and check the oil pressure
with the oil check bolt loosened.
zDo not apply at high speeds more than
specified when checking the pressure.
NOTE:
Wipe any spilled oil off the engine.
3.2.6COOLANT LEVEL INSPECTION
Inspect:
zCoolant level
Coolant level should be between the
maximum○
a
and minimum○
b
marks.
Coolant level is below the "LOWER " level line
Add soft water (tap water) up to the proper level.
CAUTION:
Hard water or salt water is harmful to engine
parts. Use only distilled water if soft water is not
available. If you use tap water, make sure it is
soft water.
To Next Page
