CHAPTER 4B CHASSIS ATV SERVICE MANUAL09.0
CHAPTER 4 CHASSIS PAGE. 4B-
7
8. Securely tighten the mounting bolts.
Torque Specifications: 41-44Ft.Lbs (55-60N.m)
9. Recheck the chain tension: At the center point between the two sprockets, push and pull
the chain and note total flex. If flex is more than 1/2’’ (12mm), readjust chain.
10. Apply proper type spray-on chain lubricant thoroughly inside and outside plates and
rollers of chain. Move ATV as needed to access entire chain.

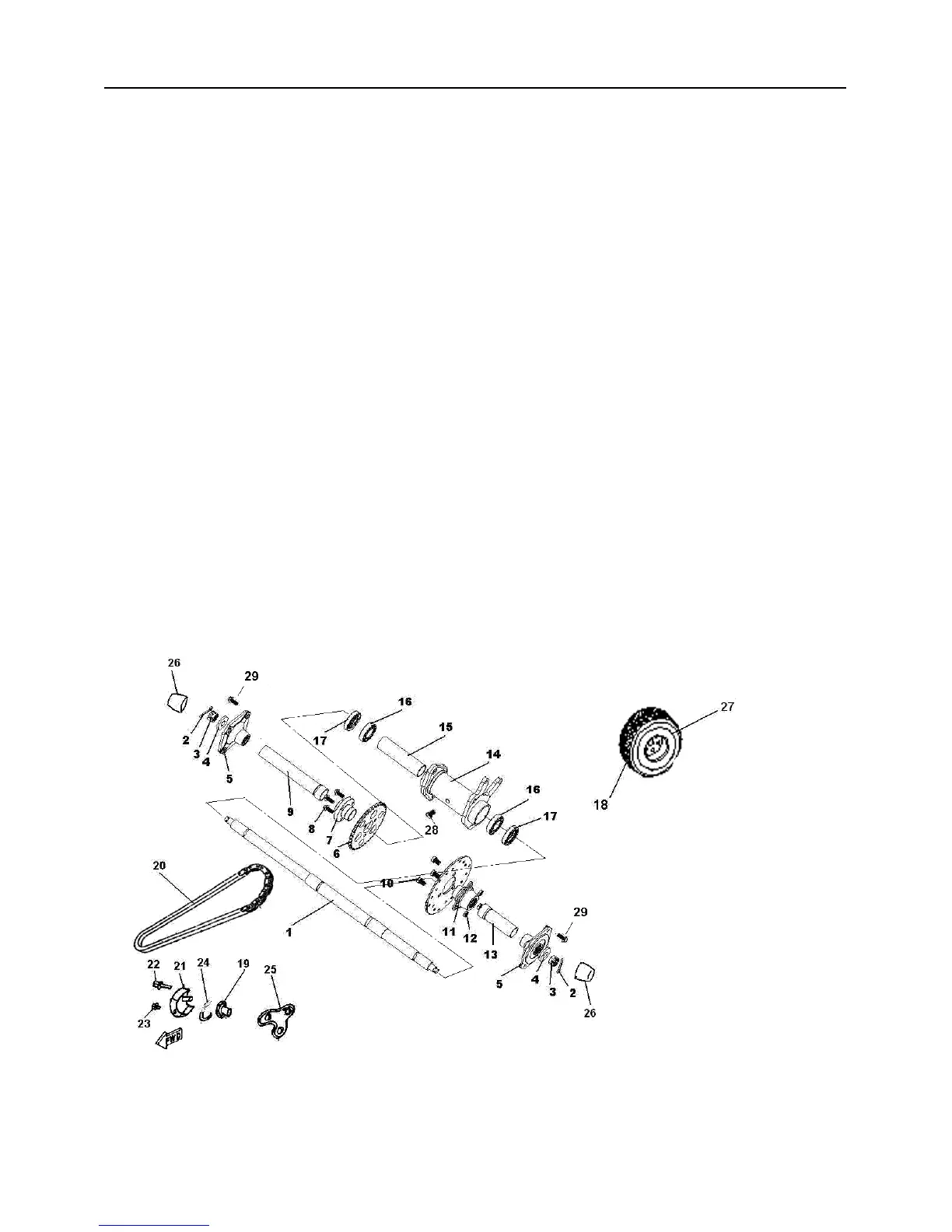

FINAL DRIVE
Removal
1. Remove wheels, chain as described above.
2. Remove the 4 M12X1.25X28 mounting bolts.
3. Remove the final drive assembly from the swing arm,
Installation
Reverse the removal procedure for installation. Adjust chain tension as described above.
Securely tighten the mounting bolts (1).
Torque Specifications: 41-44Ft.Lbs (55-60N.m)
Final Drive Disassembly
