CHAPTER 4B CHASSIS ATV SERVICE MANUAL09.0
CHAPTER 4 CHASSIS PAGE. 4B-
5
INSTALLATION

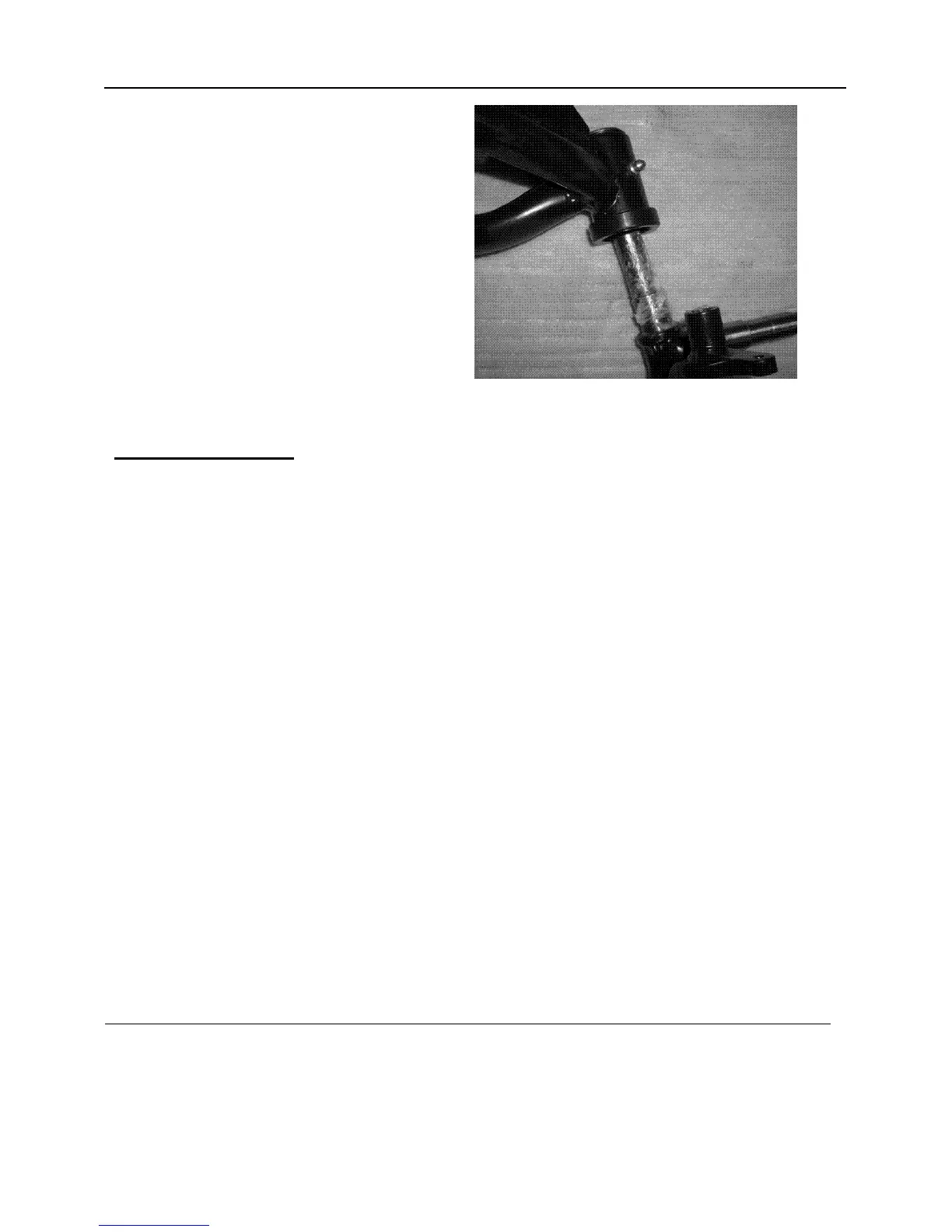

NOTE: Always use new A-ARM PIVOT
SHAFT SEALED RING for re-installation.
Apply grease on A-ARM PIVOT SHAFT
Reverse the hub removal procedure for
installation.
4.3 FINAL DRIVE
REAR WHEEL
Removal
1. Place the vehicle on level ground with engine off and fuel off, set the front parking brake,
2. Loosen the 4 bolts (3), but not removal.
3. Elevate rear end and safely support machine under frame area, Removal the bolts.
4. Removal the wheel.
Inspection
Inspect all wheels for runout and damage.
Installation
Reverse the wheel removal procedure for installation.
DRIVE CHAIN
Chain Removal
1. Place the vehicle on level ground with engine off and fuel off, set the front parking brake,
2. Rotate rear wheel to place master link in accessible position between two sprockets.
3. Remove the rear wheels as described above.
4. Loosen, but not removal the four mounting bolts. Loosen the chain adjuster.
5. Slide the retaining clip of the master link and remove clip and side plate.
6. Slide master link out and remove the chain.
