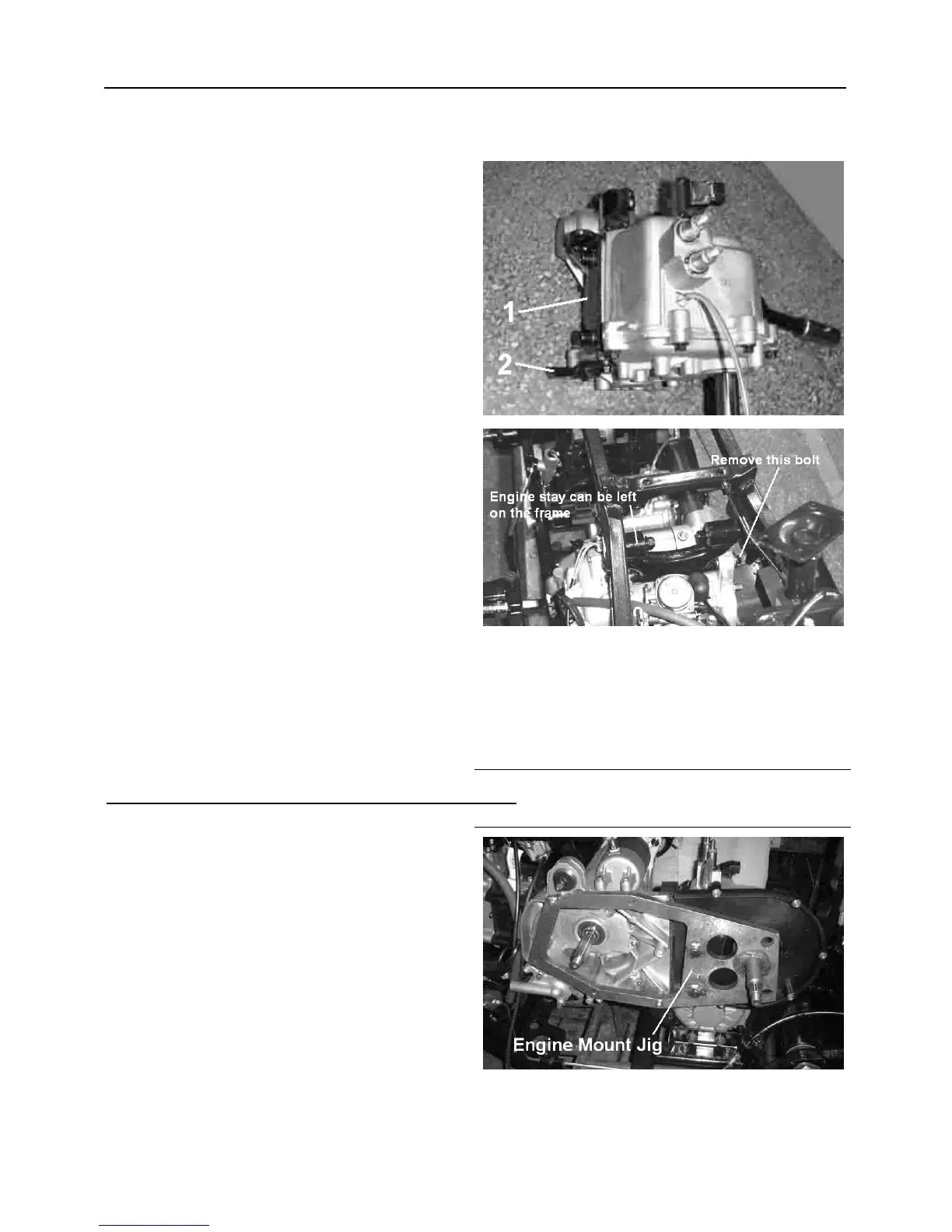

connect the engine/ transmission between
the frame, except the 2 brackets between
the engine and transmission and left them
on the transmission. See picture.
10. Remove right and left side engine mount
bolts, and remove engine from engine
stay.
11. Remove front drive shaft (4WD, see
chapter 5).
12. Remove lower left bracket, rear bracket
and right mount bolts .(M 10x1.25x70 )
13. Remove transmission from frame and
remove drive shaft.
2 brackets between the engine and
transmission
6.7 ENGINE AND TRANSMSSION INSTALL
Transmission
1. Position transmission in frame, Align rear
drive shaft and slide shaft into the yoke.
2. Install all brackets, loosely install new
fasteners.
3. Tighten fasteners in “right -left– rear”
order.
NOTE: While tightening, it is important to turn
the rear drive shaft by hand to check the
position of transmission. If the rear drive axle
can not turn freely, it is necessary to loose (but
not remove) the fasteners to re-position the
transmission by tightening the fasteners in
To Next Page
