CHAPTER 6 TRANSMISSION ATV SERVICE MANUAL 09.0
CHAPTER 6 TRANSMISSION PAGE. 6-
7
different order.
Transmission Mounting Bolts Torque: 25 ft.
lbs. (35 Nm ).
4. Drive in a new roll pin.
Engine
5. Position Engine in frame, Install all
brackets, loosely install new fasteners, but
not tighten fasteners.
6. Make sure those spacers are in correct
position.
7. Install rear inside cover components on
transmission (in new model there is no
removable rear inside cover).

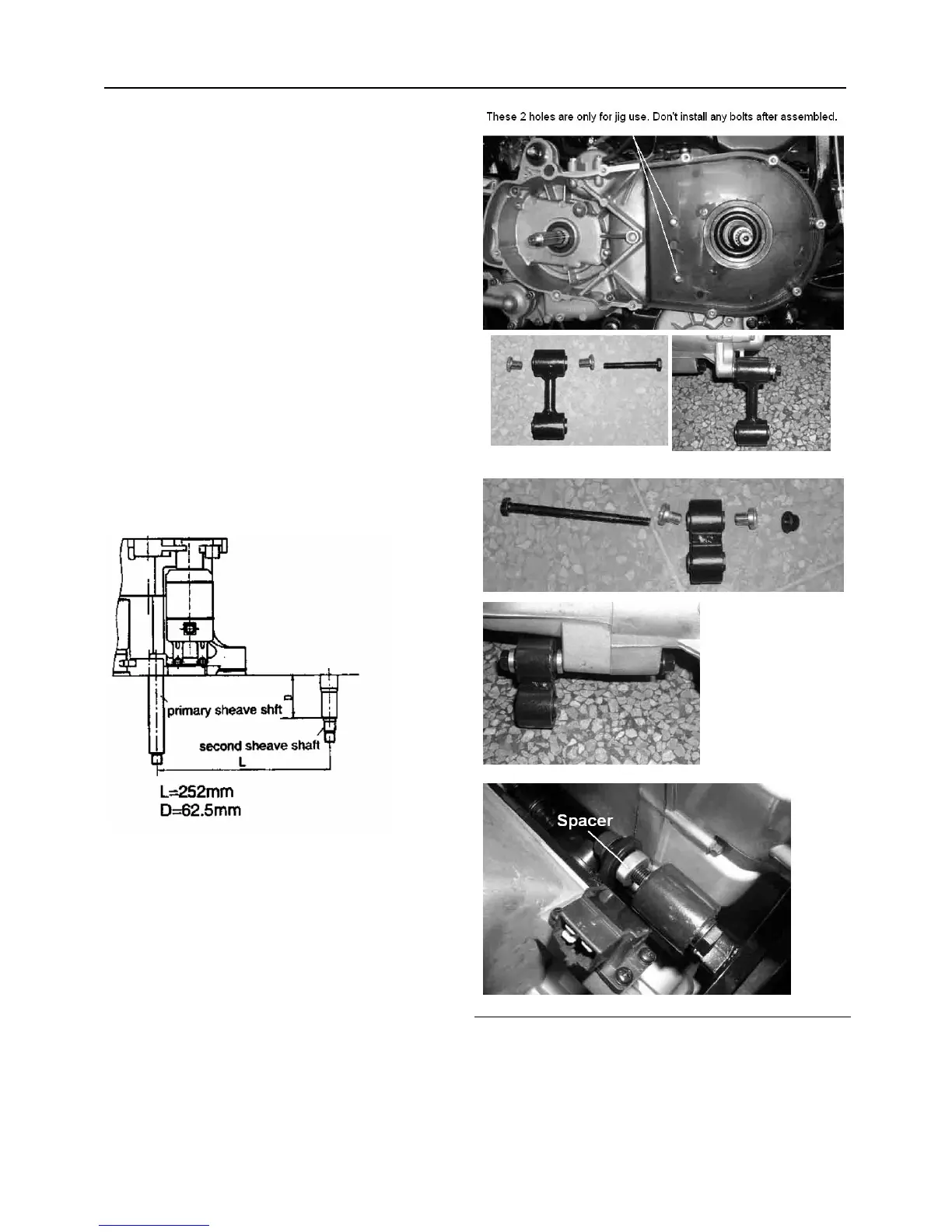

8. Link engine and transmission together
with engine mount jig, (center distance of
engine shaft and transmission main shaft
is 252 mm and distance of side surface
and shaft shoulder 62 .5 mm)
9. Tighten engine mounting fasteners in
top-to bottom order.
10. Remove jig.
14. Install both drive and driven clutches and
outer CVT cover.
Engine Mounting Bolts Torque:
25 ft. lbs. (35 N.m).
