CHAPTER 8 ELECTRICAL ATV SERVICE MANUAL 09.0
CHAPTER 8 ELECTRICAL CTRICAL PAGE 8-
34

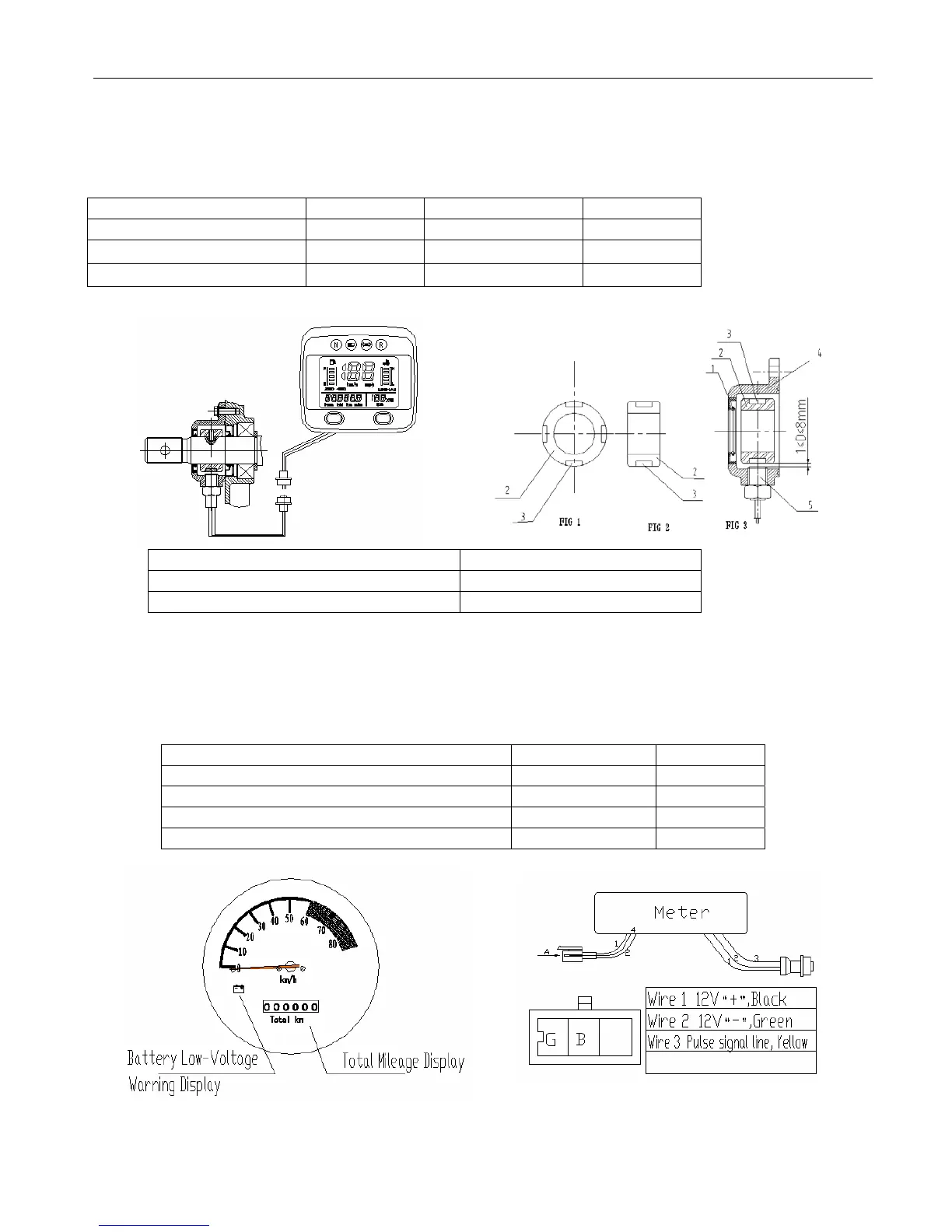

Speed Sensor on the Transmission Out Put Shaft.
Operation Instructions of LCD Meter and Speed Sensor
Main Technical Parameter：
Item Code Vol value Unit
Operating voltage Vcc 5-20 V
Operating current Icc
≤15
mA
Operating distance D
1mm≤D≤8mm
mm
The following is the graphic illustration for sensor installation。
1. OIL SEAL 4. THE COVER
2. DOWEL PIN 5. THE HALL SENSOR
3. MAGNET
METER
Dial Meter
Item Vol value Unit
Operating voltage 10V~18V V
Operating current ≤ 500mA A
Operating Environmental temperature -10 ~65℃℃ ℃
Battery warning voltage ≤11.5V V
