CHAPTER 5 FINAL DRIVE ATV SERVICE MANUAL 09.0
CHAPTER 5 FINAL DRIVE. 5-
18
install new bearing (s), retaining ring and
seals reversing steps of rear axle bearing
removal..
2. Torque brake caliper, rear hub nut, and
rear wheel nuts to specifications.

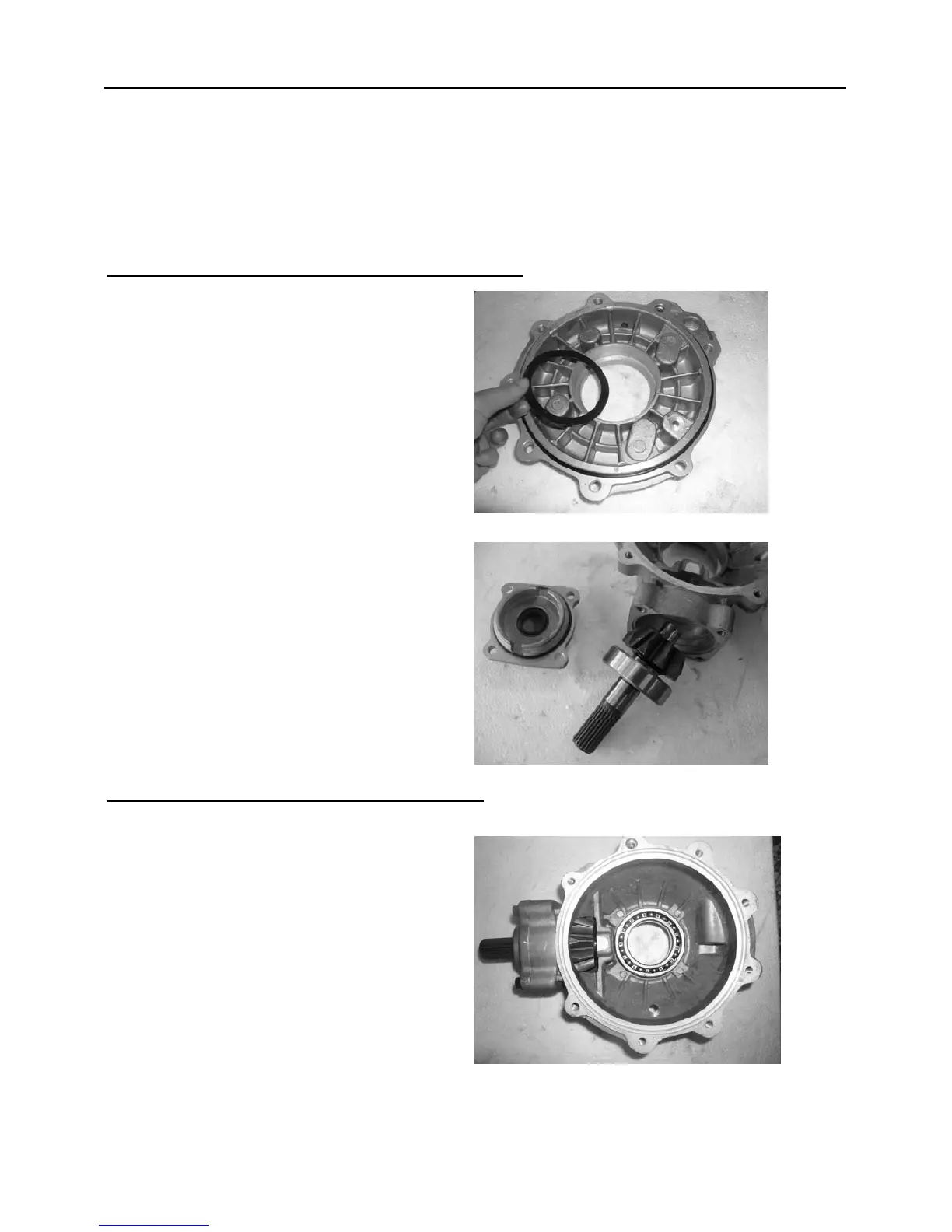

5.14 REAR GEARCASE DISASSEMBLY
1. Drain and properly dispose of used oil.
2. Remove bolts and output shaft cover.
3. Remove ring gear assembly from the act
put cover.
4. Remove ring gear bearing shim from the
cover and retain for re-assembly.
5. Remove and discard the output cover seal
and O- ring.
6. Remove input cover and O- ring.
Remove pinion shaft assembly. Inspect
pinion gear for chipped, broken or missing
teeth .Replace assembly if necessary.
5.15 REAR GEARCASE ASSEMBLY
1. Replace all O-rings, seals, and worn
components.
2. Press pinion shaft seal into input cover
until flush with sealing surface.
3. Inspect pinion shaft bushing.
4. Inspect bearings on rear axle and pinion
shafts. To replace, press new bearing on
to.
NOTE
Due to extremely close tolerances and
minimal wear, the bearings must be
inspected visually, and by feel. While
rotating bearings by hand, inspect for
