CHAPTER 3B ENGINE 50cc/80cc ATV SERVICE MANUAL09.0
CHAPTER 3B ENGINE PAGE 3B - 60 -

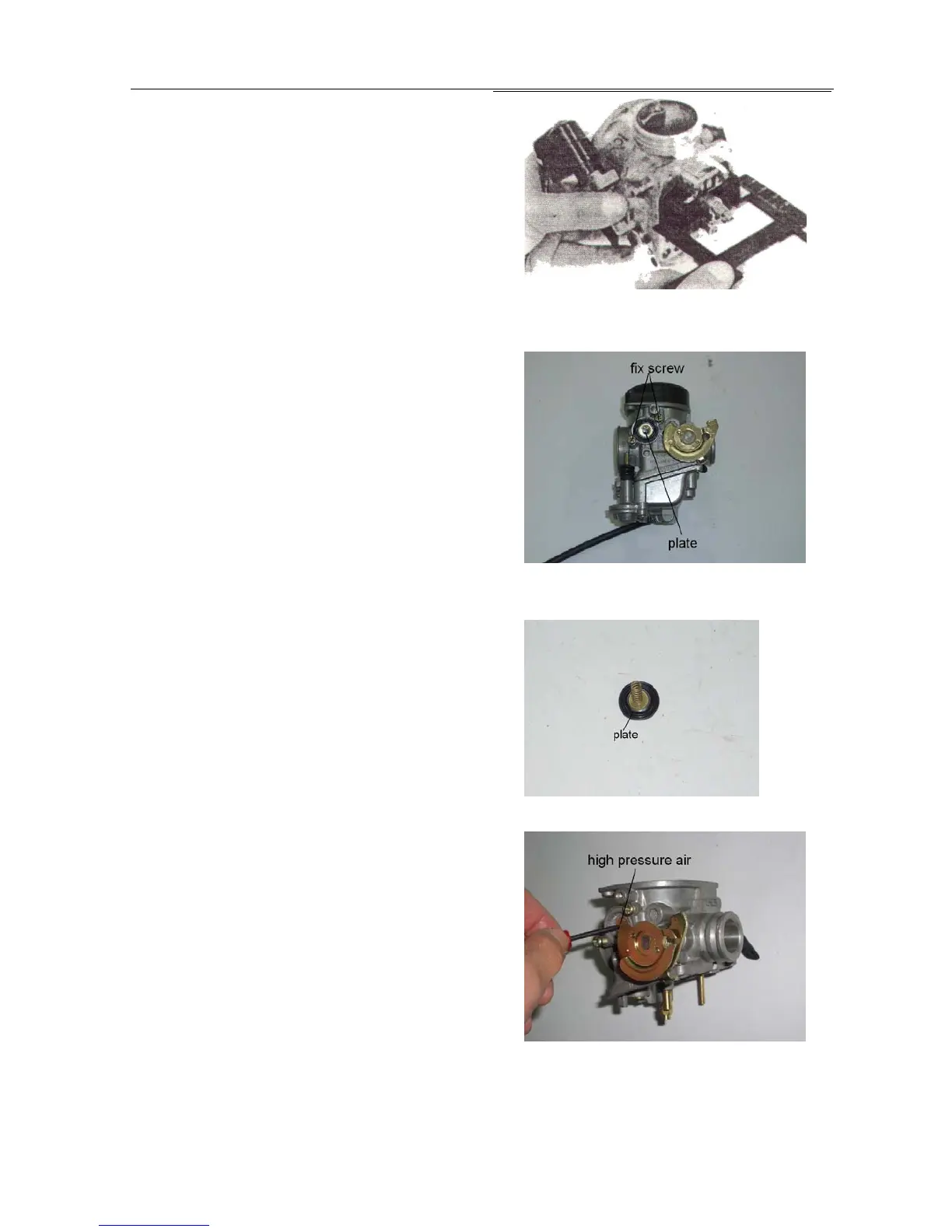

Accelerator pump disassembling
Remove two screws on pump and take off cover.
Take off spring and acceleration pump plate.
Checking
Check acceleration pump plate for cracks or
hardening of the rubber.
Replace if necessary.
Check for blocked fuel passages.
Clean by high pressure air.
Reverse steps to reassemble.
Take special care with the accelerator pump plate
to avoid damage.
3.8.3 Assembly of carburetor
Slide carburetor carefully into the manifold making
sure to align the tab on the manifold with notch on
the carburetor.
