CHAPTER 3B ENGINE 50cc/80cc ATV SERVICE MANUAL09.0
CHAPTER 3B ENGINE PAGE 3B - 68 -

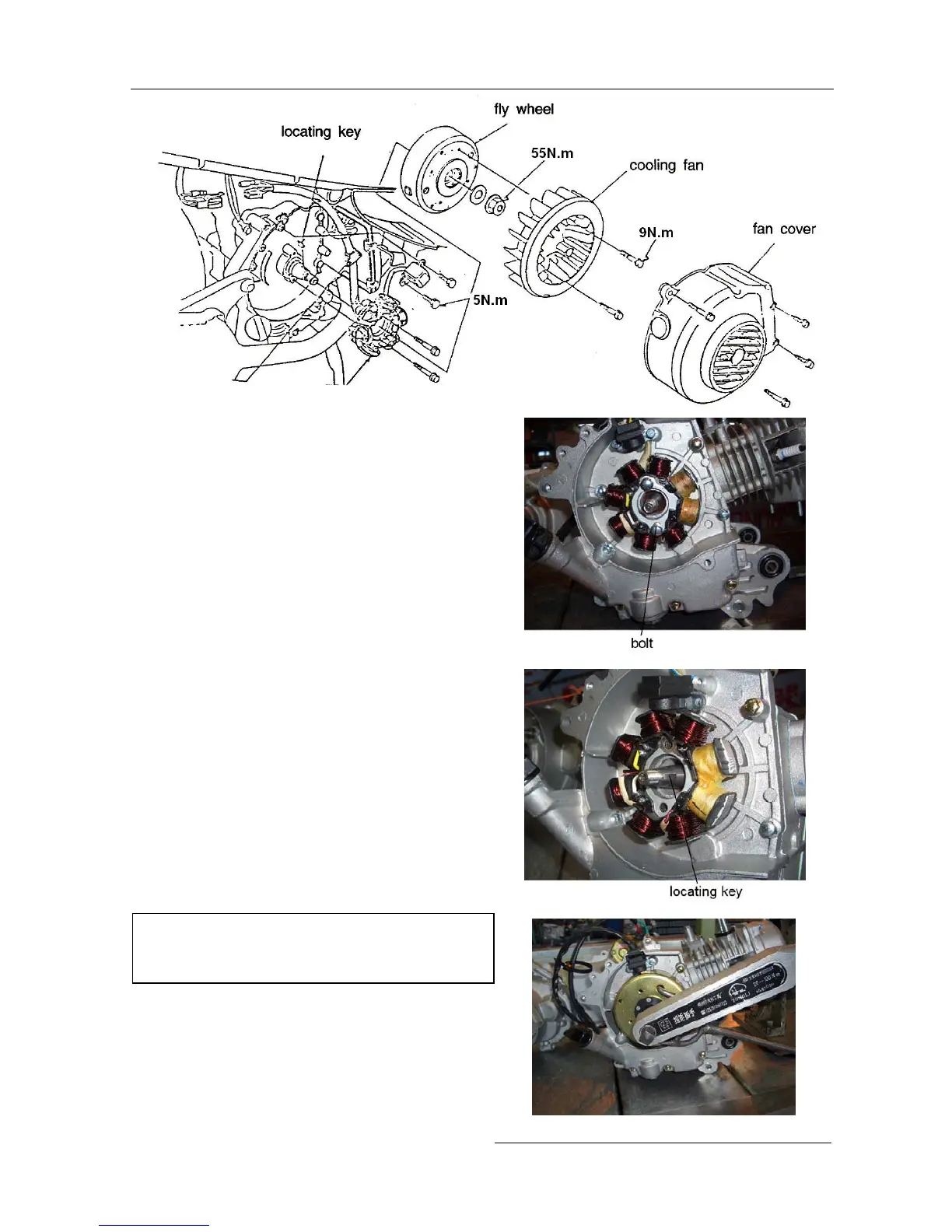

Attach the triggering coil to the right crankcase.
Lock the fix bolts of the triggering coil.
Torque:
The triggering coil:5N.m 44in.lbs
the staror:9N.m 6.6ft.lbs
Set up the rubber sleeve of the magneto wire.
Clean the cone part of the crankshaft and of the
flywheel.
Be sure to lay the locating key of the flywheel into
the keyway on the crankshaft precisely.
Point the groove of the flywheel to the locating key
on the crankshaft and then assemble it.
Attention:
Make sure that there is no bolt/nut inside the
flywheel, then assemble it.
Use a universal solid wrench to hold the flywheel,
then lock the nut.
Torque:55N.m
Universal tool
