CHAPTER 3C ENGINE 100/125/150/200 SERVICE MANUAL09.0
CHAPTER 3C ENGINE PAGE.3C - 33 -
High Tension Voltage Intermittent
● Faulty main switch
● Poor CDI terminal connection
● Poor CDI ground
● Faulty pickup coil
● Poor high tension lead terminal connection
● Faulty CDI unit
High Tension Voltage Normal but No Spark
● Faulty spark plug
● Faulty spark plug cap
No High Tension Voltage
● Faulty main switch
● Faulty Ignition coil
● Faulty CDI unit
No or Intermittent High Tension Voltage
● Faulty Ignition coil

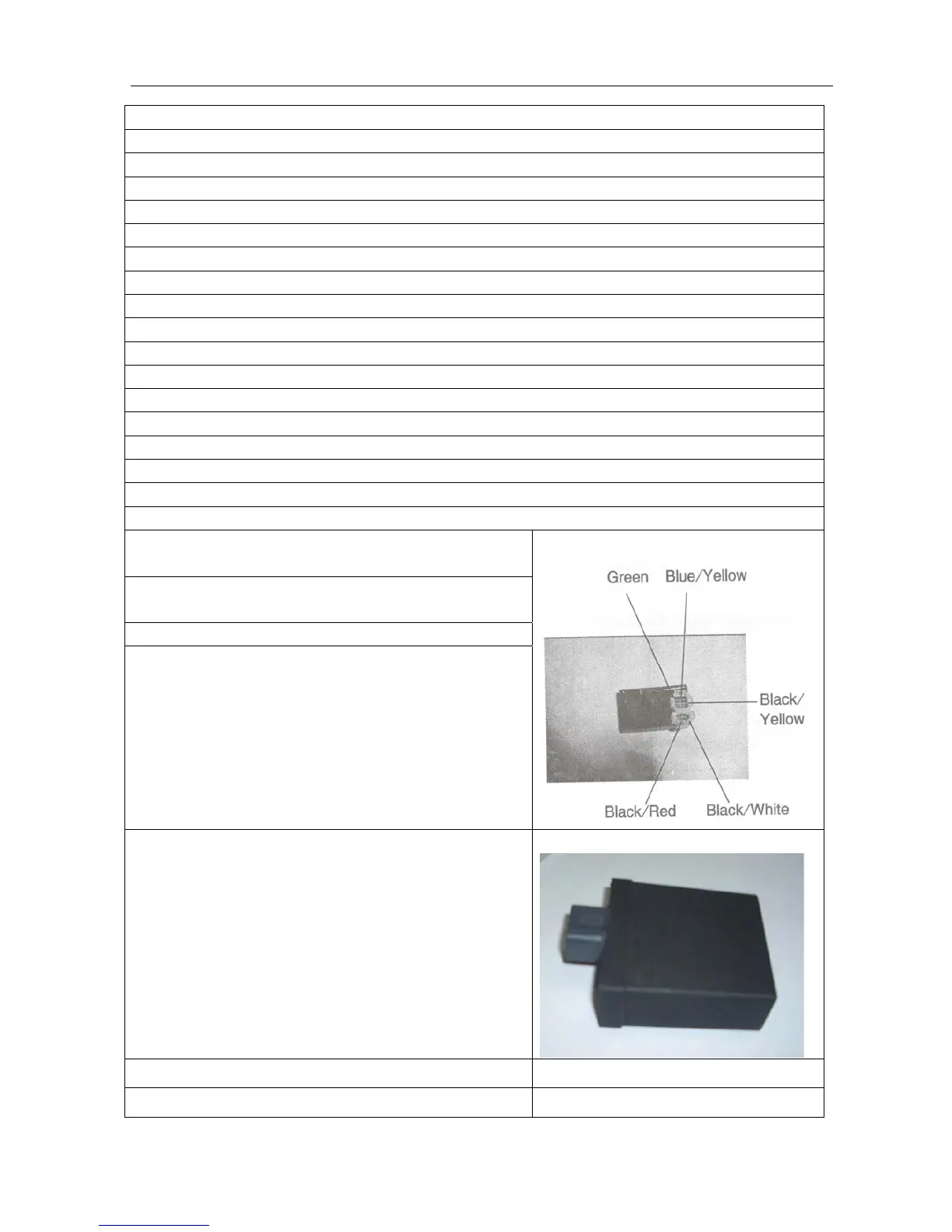

3.7.3 CDI INSPECTION
Disconnect the CDI module from the wire
harness
Test resistance of the terminals with an
multi-meter.
● Since there is semiconductor in return circuit,
testing result may be significantly different if
different multi-meter are used.
● If the pointer on the dial flickers and finally
stops at ∞in testing, it should be regarded as
normal. Because the capacitor in the CDI
module is charged while being tested and it
cannot discharge at this time.
(CDI for MINI ATV100/150)：
(CDI for B-type 150/200):
To Next Page
