CHAPTER 5 FINAL DRIVE ATV SERVICE MANUAL 09.0
CHAPTER 5 FINAL DRIVE. 5-
23

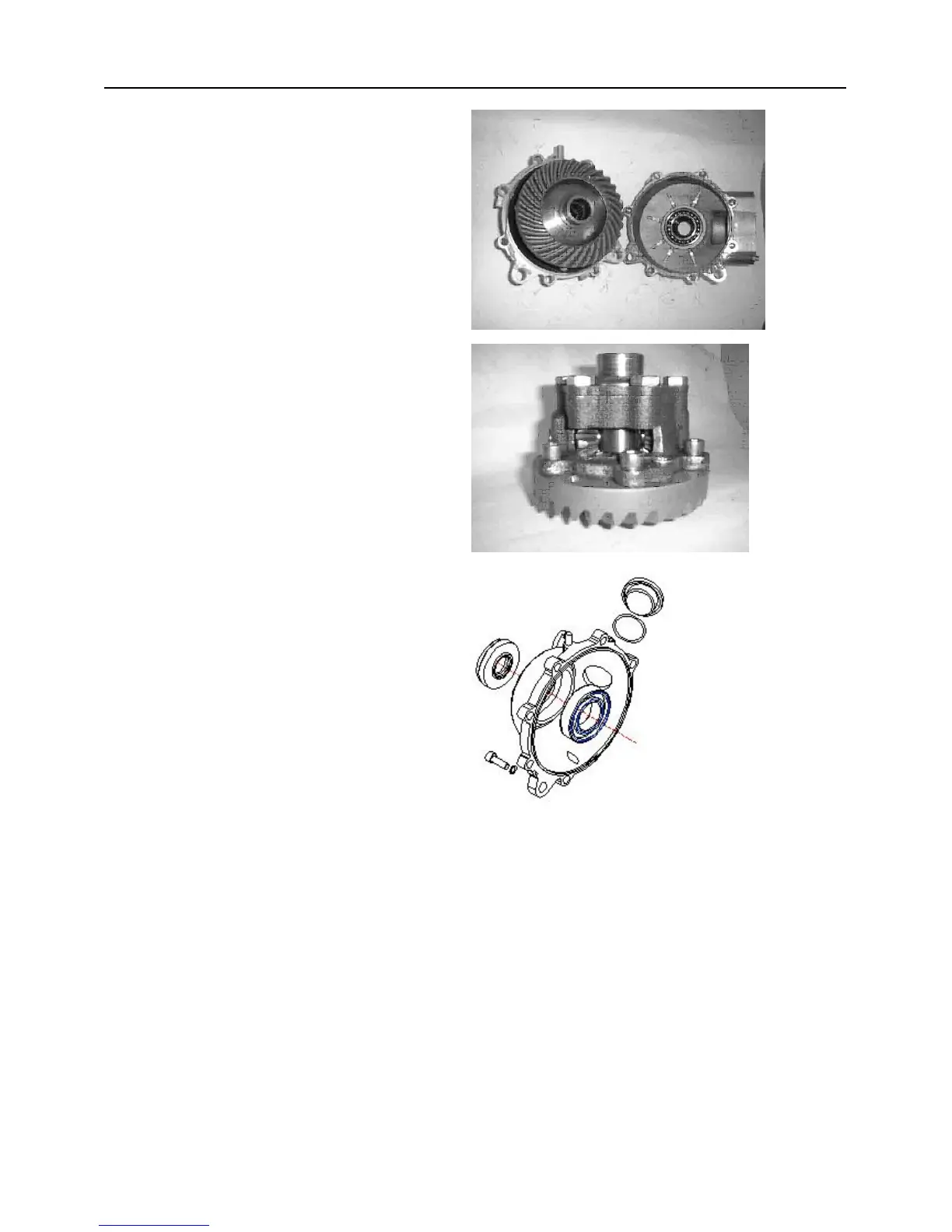

12. Remove bolts, left cover and differential.
Differential →
13. Remove seal from left cover.
14. Clean all components and inspect for wear. Inspect gears for wear, cracks, chips or broken
teeth. Inspect engagement dogs and detent ball housing, replace if edges are rounded. Inspect
casting for crack. Inspect bearings for smooth operation. Check for excessive play between
inner and outer race. Inspect detent spring and finger spring for wear, cracks, relaxation.
Replace part with any defects.
IMPORTANT: New seals should be installed after the transmission is completely assembled.
