CHAPTER 7 BRAKES ATV SERVICE MANUAL 09.0
CHAPTER 7 BRAKES PAGE. 7-

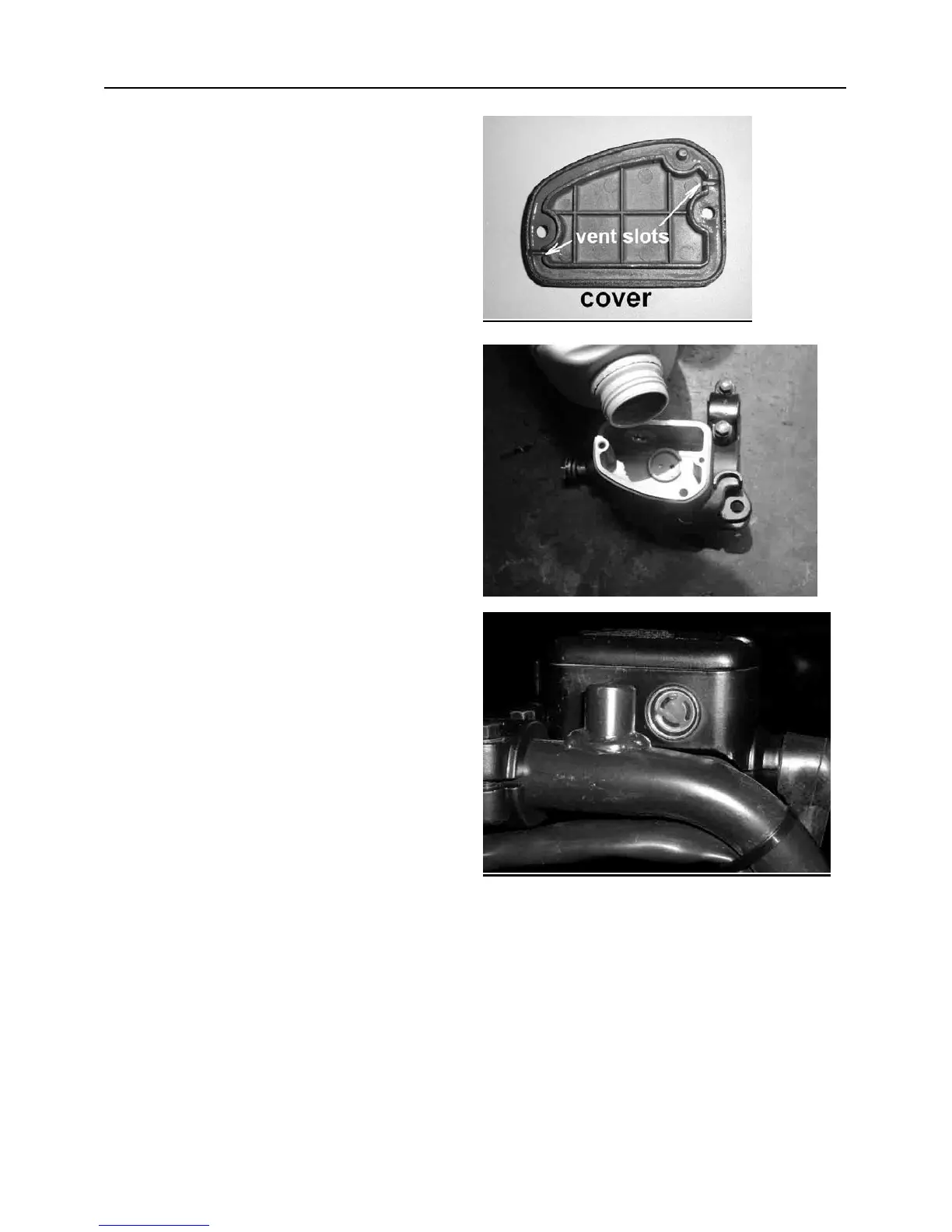

4
1. Clean reservoir cover thoroughly.
2. Remove screws, cover and diaphragm
from reservoir.
3. Inspect vent slots in cover and remove any
debris or blockage.
4. If changing fluid, remove old fluid from
reservoir with a brake fluid pump or
similar tool.
NOTE: Do not remove brake lever when
reservoir fluid level is low.
5. Add brake fluid up to the indicated MAX
level on the reservoir.
6. Begin bleeding procedure with the caliper
that is farthest from the m aster cylinder.
Install a box end wrench on the caliper
bleeder screw. Attach a clean, clear hose
to the fitting and place the other end in a
clean container. Be sure the hose fits
tightly on the fitting.
NOTE: Fluid may be forced from supply port
when brake lever is pumped. Place
diaphragm in reservoir to prevent spills. Do
not install cover.
DOT 3 Brake Fluid
Reservoir Cover Torque
5 in. lbs. (.6 Nm )
7. Slowly pump brake lever (D) until
pressure builds and holds.
8. While maintaining lever pressure, open
bleeder screw. Close bleeder screw and
release brake lever.
NOTE: Do not release lever before bleeder
screw is tight or air m ay be draw n into
caliper.
NOTE: In some versions of brake, there are 2
hydraulic circulates in one caliper for foot
brake and hand brake. Make sure you bleed
the right circulate.
9. Repeat procedure until clean fluid
appears in bleeder hose and al air has
been purged. Add fluid as necessary to
maintain level in reservoir.
CAUTION:
