CHAPTER 3A
ENGINE
260/
300
/
400
cc
A
TV
SERVICE
MANUAL09.0
CHAPTER
3
ENGINE P
AGE.
3A-
40

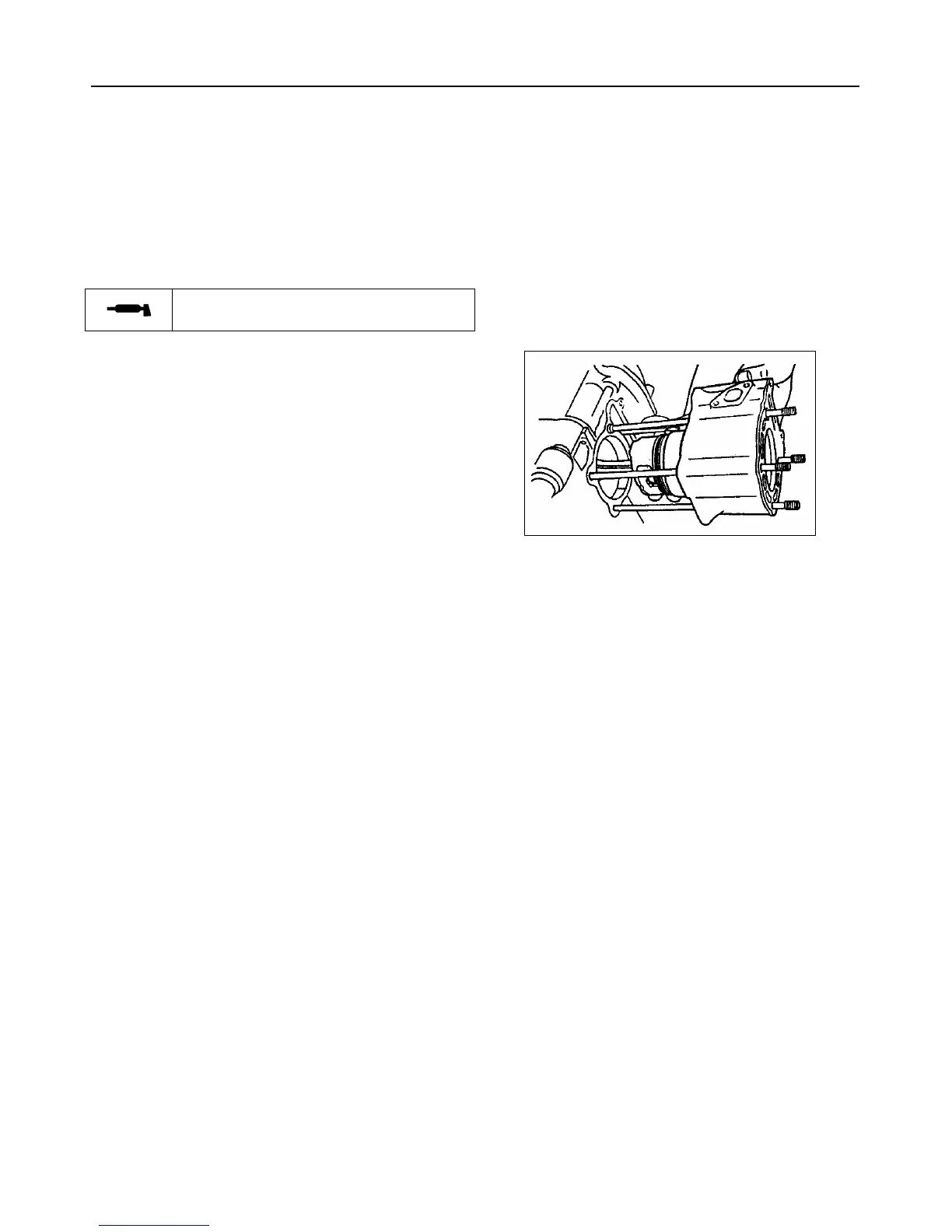

5. Lubricate:
z
Piston outer surface
z
Piston ring
z
Cylinder inner surface
Engine oil
6. Install:
z
Cylinder
NOTE:
z
Install the cylinder
with one hand while com
pressing the piston rings with the other hand.
z
Pass the timing chain and timing chain guide
(exhaust side) through the timing chain cavity
.
78
80
Table of Contents
Default Chapter
3
Contents
3
Chapter 1 General Page
5
General Information
5
Bearings and Oil Seals
6
Important Information
6
Preparation for Removal Procedures
6
Replacement Parts
6
Checking of Connections
7
Conversion Table
8
Mini / Youth
9
V.I.N. and Engine Serial Number
9
Vehicle Dimensions
10
Demon ATV 260 / 300 Europe
12
B-Type 260/ 300
13
Special Edition - Anniversary
13
Atv 400-2
14
B-Type 150/ 200
14
Atv 400-2B
15
Atv 520
15
Atv 520-B
16
Maintenance
18
Periodic Maintenance
19
Periodic Maintenance Schedule
19
Fuel System
24
Lubrication Recommendations
24
Fuel Filter
26
Fuel Lines
26
Vent Lines and Roll over Valve
27
Toe Alignment
28
Brake Pad Inspection
29
Braking System Inspection
29
Foot Brake Adjustment
29
Hose/Fitting Inspection
29
Bleeding
30
Controls
30
Foot Brake Testing
30
To Adjust (Set Up) the Mechanical Parking Brake
31
Brake Drum
32
Brake Shoes
32
Drum Brake Checking
32
Drum Brake for ATV 50-150
32
Front Suspension
34
Rear Suspension
34
Suspension Spring Preload Adjustment
34
Wheel Installation
35
Wheel Removal
35
Wheel, Hub Torque Table
35
Wheels
35
Tire Inspection
36
Tire Pressure
36
Tire Pressure Inspection
36
Tire Tread Depth
36
Frame, Nuts, Bolts, Fasteners
37
Chapter 3 Engine Page. 3A
40
Maintenance Specifications
41
Tightening Torques
46
Chapter 3 Engine Page
48
Parts Inspection and Service
48
Valve Clearance Adjustment
48
Idling Speed Adjustment
49
Spark Plug Inspection
50
Compression Pressure Measurement
51
Compression Pressure
52
Engine Oil Level Inspection
52
Engine Oil Replacement
53
Recommended Engine Oil
53
Coolant Level Inspection
54
Engine Oil Pressure Inspection
54
Coolant Replacement
55
Recommended Coolant
56
Handling Notes for Coolant
57
Cylinder Head
58
Cylinder Head Removal
60
Cyinder Head Installation
61
Cylinder Head Inspection
61
Camshaft and Rocker Arms
64
Cam Shaft Inspection
65
Rocker Arm and Rocker Arm Shaft Removal
65
Rocker Arms and Rocker Arm Shafts Inspection
65
Camshaft and Rocker Arm Installation
66
Valves and Valve Springs
68
Valve and Valve Springs Inspection
69
Valves and Valve Springs Removal
69
Valve Seats Inspection
70
Valves and Valve Springs Installation
72
Cylinder and Piston
74
Cylinder Inspection
75
Piston and Piston Rings Removal
75
Piston and Piston Pin Inspection
76
Piston Rings Inspection
77
Piston Rings, Piston and Cylinder Installation
77
V-Belt,Clutch and Secondary/Primary Sheave Crankcase Cover (Left)
80
Primary Sheave
81
Secondary Sheave
82
Primary Sheave Removal
83
Secondary Sheave and V-Belt Removal
83
Clutch Inspection
84
Secondary Sheave Disassembly
84
V-Belt Inspection
84
Primary Sheave Assembly
85
Secondary Sheave Inspection
85
Weight Inspection
85
Secondary Sheave Installation
86
A.C. Magneto and Starter Clutch
89
Magneto Cover and Stator Coil
89
Magneto Rotor Removal
91
Magneto Rotor Installation
92
Oil Pump
94
Oil Pump Inspection
95
Crankcase and Crankshaft
96
Crankshaft Inspection
98
Crankshaft Removal
98
Crankcase Installation
99
Cooling System
100
Radiator
100
Inspection
101
Water Pump
103
Thermostat
106
Carburetor
108
Carburetor Removel
108
Carburetor Disassembly/Inspection
109
Float and Jets
110
Vacuum Chamber
110
Accererating Pump
112
Air Cut-Off Valve
112
