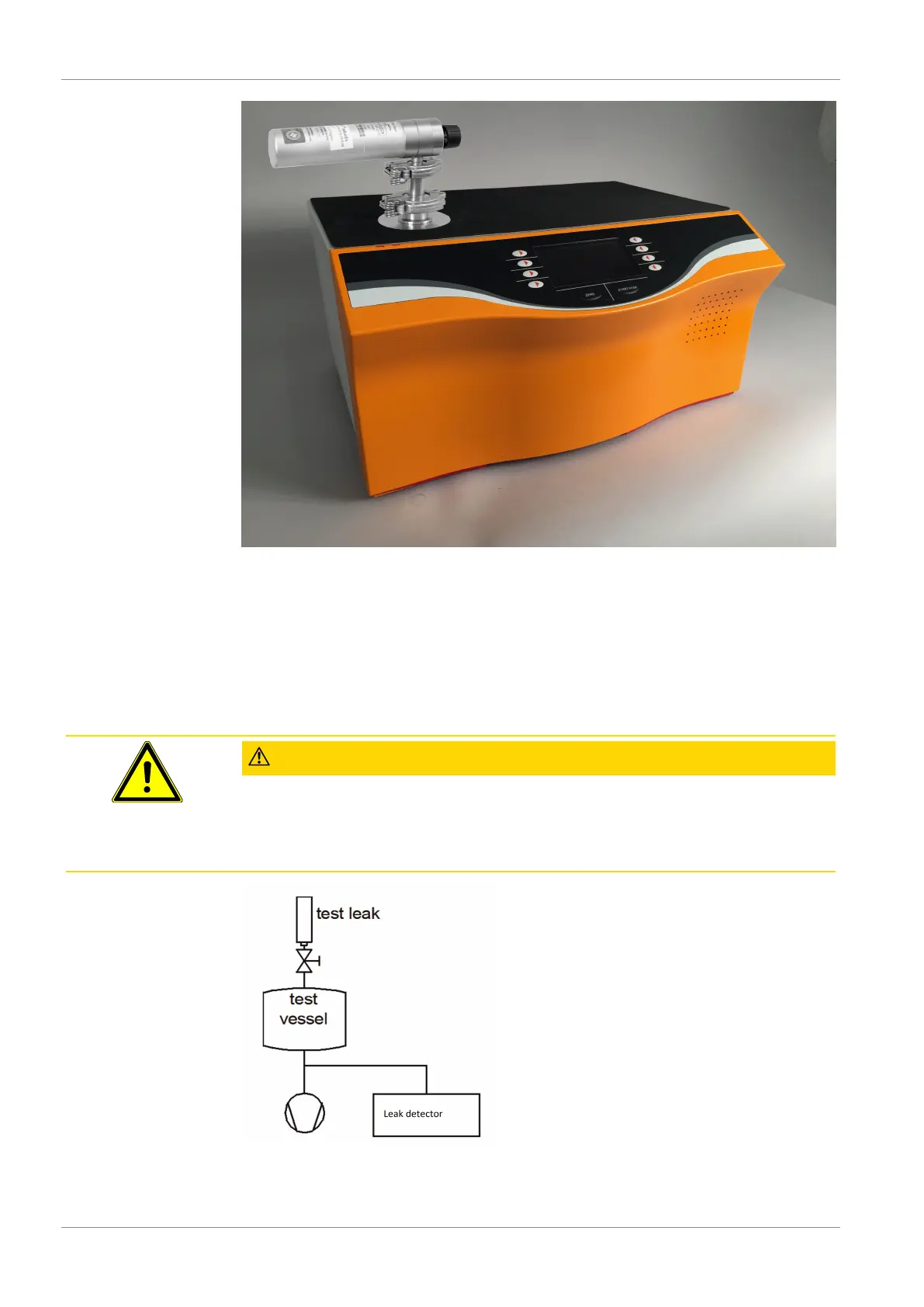

Fig.15:
Checking an external calibration leak
1. Is the displayed value equal to the value on the rating plate of the calibration leak?
Change if necessary!
2. Connect the calibration leak.
3. The valve of the calibration leak must be open.
4. Confirm with OK.
CAUTION
Part flow arrangement
If the device is connected to a vacuum system with its own pump, the calibration leak
must be connected to its test container.
Fig.16:
Calibration
The calibration runs through the following sequences:
