Operating manual and inspection booklet
Overview
3435216 101
Quick-closing valves

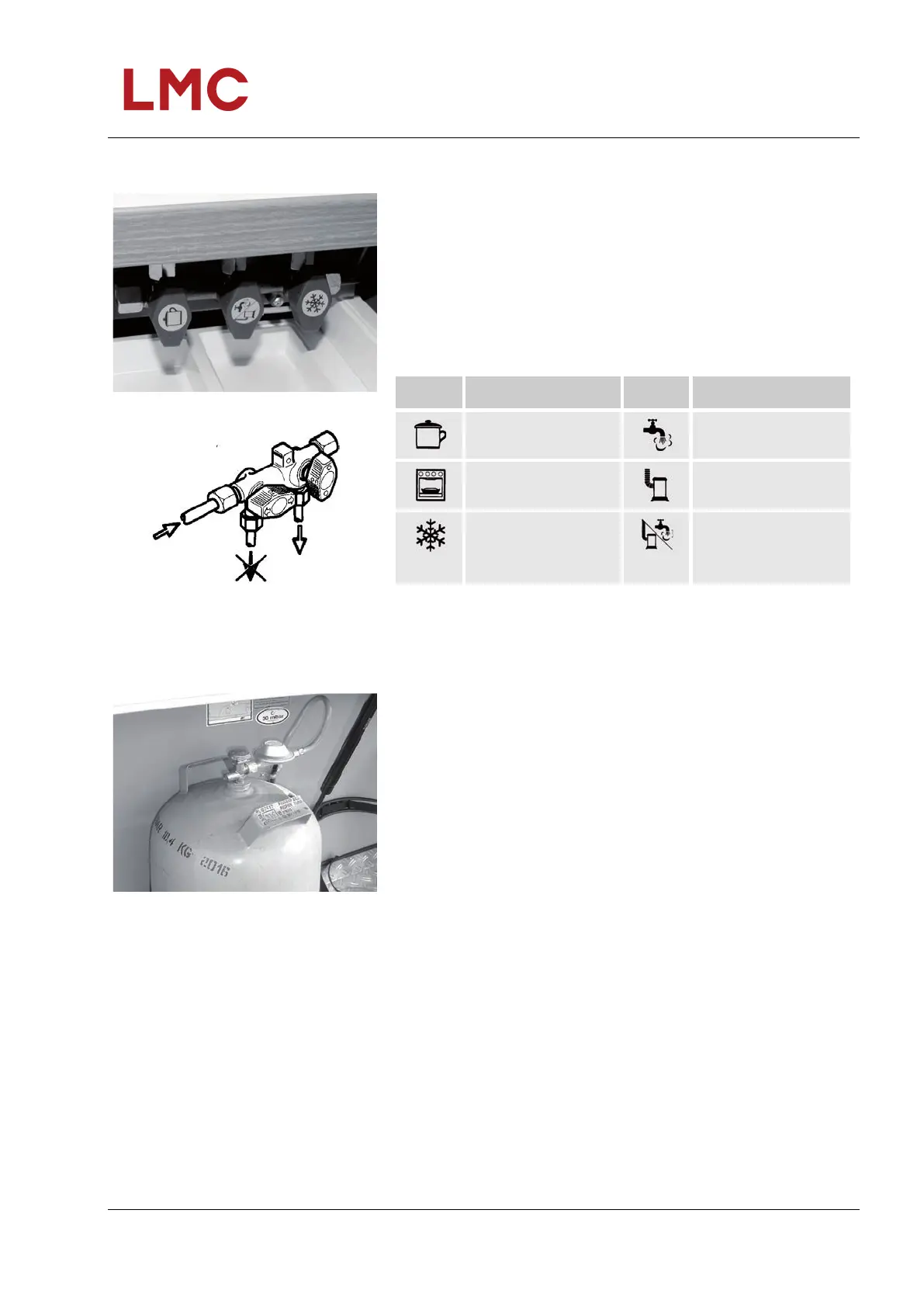

Fig. 71: Quick-closing valves
Fig. 72: Shut-off and release position
The quick-action valves for the gas appliances are located in the
caravan body, either in the drawer under the counter-top (as
shown in the Fig.) or in the lower cabinet in the kitchen. The
quick-closing valves must be accessible at all times.
Each gas appliance has its own quick-action valve.
The arrow on the quick-action valve indicates whether gas flow to
the gas appliance is open or shut off.
The quick-action valves are marked as follows:
Symbol
Meaning Symbol
Meaning
Hob
Hot water boiler
Oven
Heater
Refrigerator
Combination device
hot-water boiler with
heating system
Always close the quick-action valves prior to fuelling, and after
using the gas appliance!
Gas supply with low pressure regulator and low pressure hose
Fig. 73: Gas bottle with low pressure
regulator and low pressure hose
For connection of a gas bottle, a flexible gas hose with pressure
reducing valve is installed. The pressure reducing valve is fitted
with a sleeve nut with left-hand thread, and should only be
screwed hand-tight with the gas bottle. Gas hose and pressure
reducer must be examined for leaks at each gas test, and
replaced if the status is deficient, at the latest, however, the gas
hose and pressure reducer must be replaced at the end of the
permissible service life.
Place the gas bottle in the gas locker and lash the bottle tight
with the securing belt.
Screw the pressure reducing valve directly onto the thread of
the discharge valve on the gas bottle and hand tighten.
