Operating manual and inspection booklet
Camping
148 3435216
Idle position

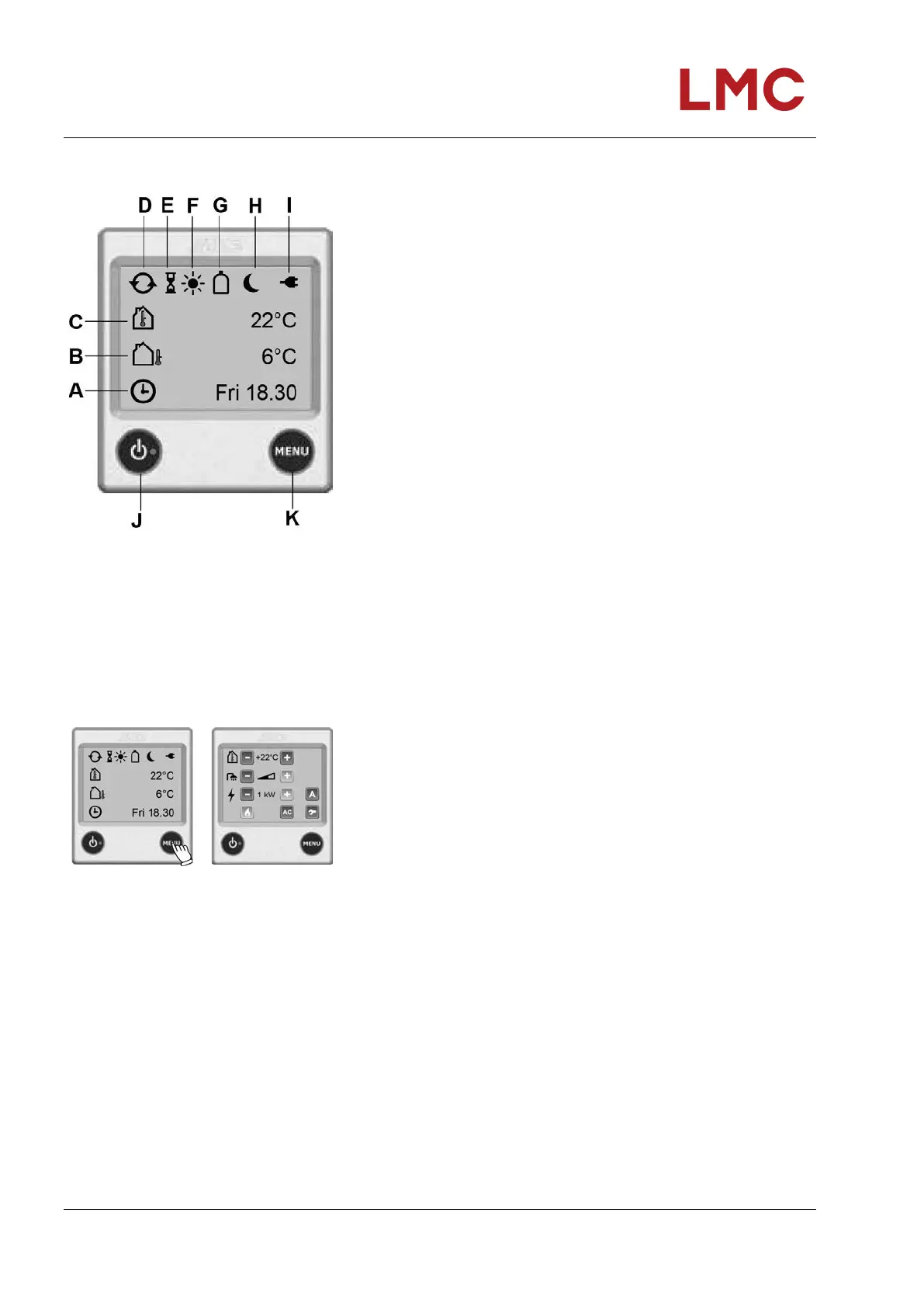

Fig. 144: Controls
A Clock. The clock displays date and time (if activated). For its
setting, please see the ALDE operating manual.
B Outside temperature*. The outside temperature is
displayed.
C Inside temperature. The inside temperature is displayed.
D Recirculating pump. This symbol is displayed when the
recirculating pump is operating.
E Automatic start of the heater. This symbol is displayed
when the function has been activated.
F Day automatic. This symbol is displayed when the function
has been activated and the time is within the set period.
G Liquefied gas bottle full/empty*. This symbol is displayed
when the sensor at the gas regulator is connected to the
bottle and activated. If "Eis-Ex" is installed, the symbols for
the set mode is shown with the bottle symbol.
H Night automatic. This symbol is displayed when the
function has been activated and the time is within the set
period.
I 230 Volt. This symbol is displayed when 230 V voltage is
applied to the heater.
J On/Off button. Main switch for the heater.
K MENU button. Button to open the Settings menu.
The functions identified with (*) are optional equipment.
Settings menu
Fig. 145:
Operating unit in
idle state
Fig. 146:
Operating unit with
Settings menu
1. Press the MENU button to open the Settings menu.
2. The background illumination activates and the adjustable
functions are displayed.
The operating unit switches to idle if you don't touch the screen
within 30 seconds.
