Operating manual and inspection booklet
Malfunctions
198 3435216

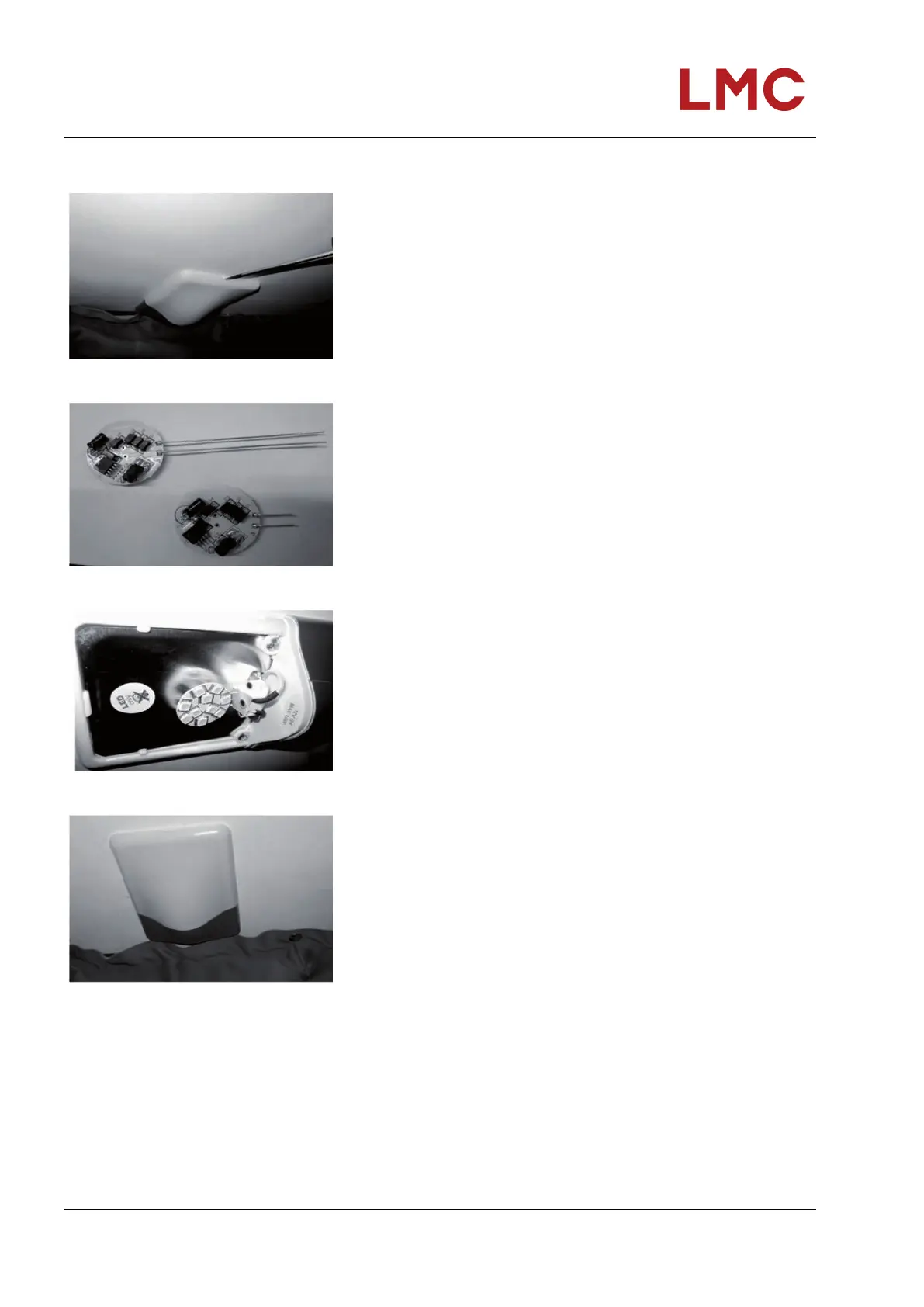

Changing the (optional) light above the lift-up bed
Fig. 192: Remove the cover
1. Lower the lift-up bed.
2. Use a screwdriver and carefully remove the cover of the lift-
up bed.
3. Remove the light bulb.
Fig. 193: Shortening the contacts
4. Shorten the contacts of the LED light to 10 to 15 mm.
Fig. 194: Inserting the LED light
5. Insert the LED light.
Fig. 195: Mounting the light cover
6. Install the light cover in the same position as it was before.
