Replacing the LED

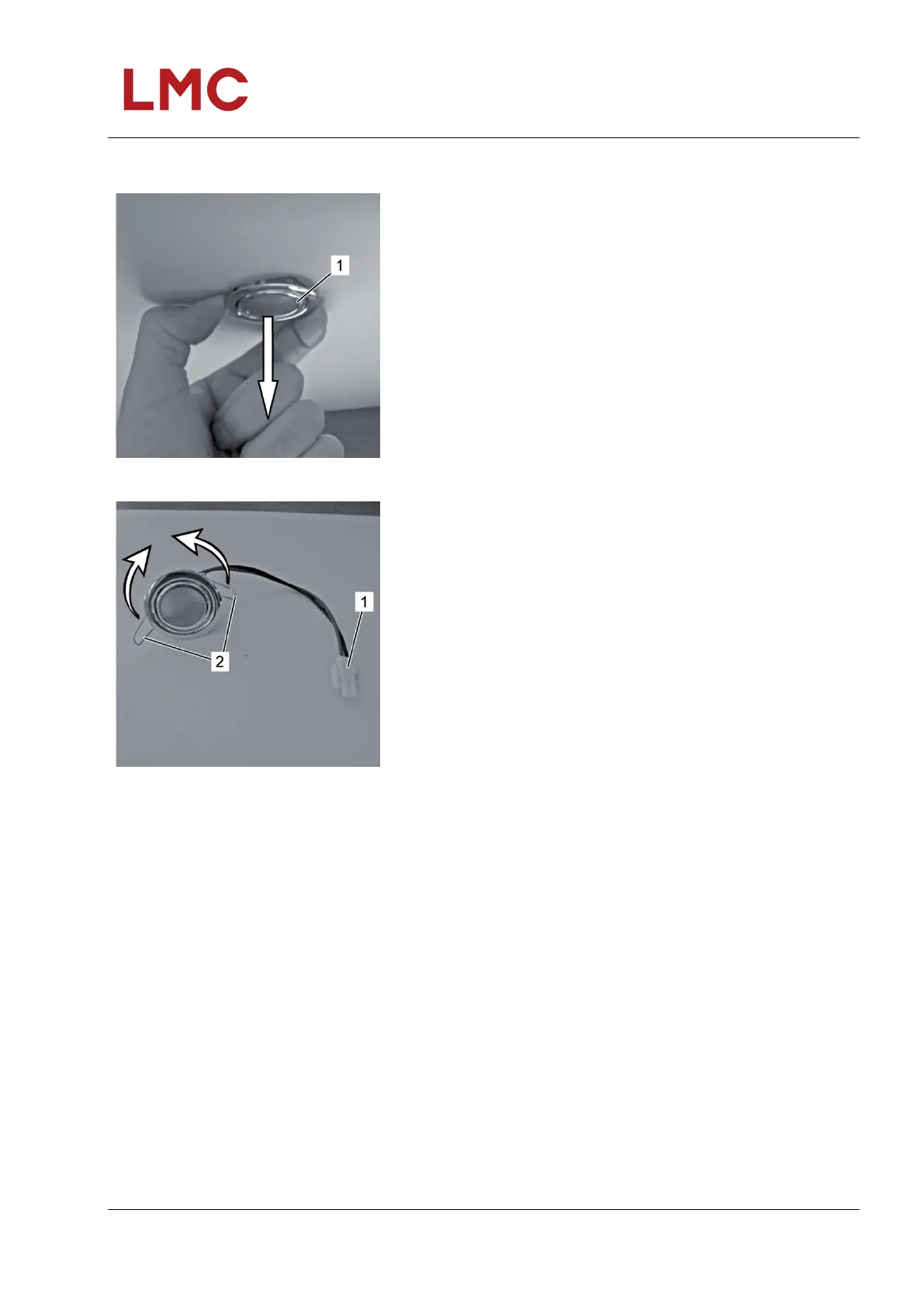

Fig. 196: Pull out the LED
1. Carefully pull the LED (1) and the wire from the recess.
2. Pull the plug from the socket, this will disconnect the LED
from the cable.
Fig. 197: LED general arrangement
3. Insert the plug (1) into the socket.
4. Push the retainer brackets (2) of the new LED up (arrows)
and keep them depressed.
5. Insert the LED into the recess.
The retainer brackets snap into place and the new LED
is placed firmly into the recess.
