WSDA
®
-2000 User Manual
3.2 System Connections
To acquire sensor data the following components are needed: a LORD Sensing wireless sensor node,
a LORD Sensing data gateway, and a host computer with access to the data acquisition software.
The sensor, node, gateway, and software selection are application-dependent, but the basic interfaces
are the same. The WSDA-2000 gateway utilizes Ethernet communications and can be used with
SensorConnect and SensorCloud™, although system configuration is completed using
SensorConnect. For a connections overview using the WSDA - 2000 refer to
Figure 4 - System
Connections
.

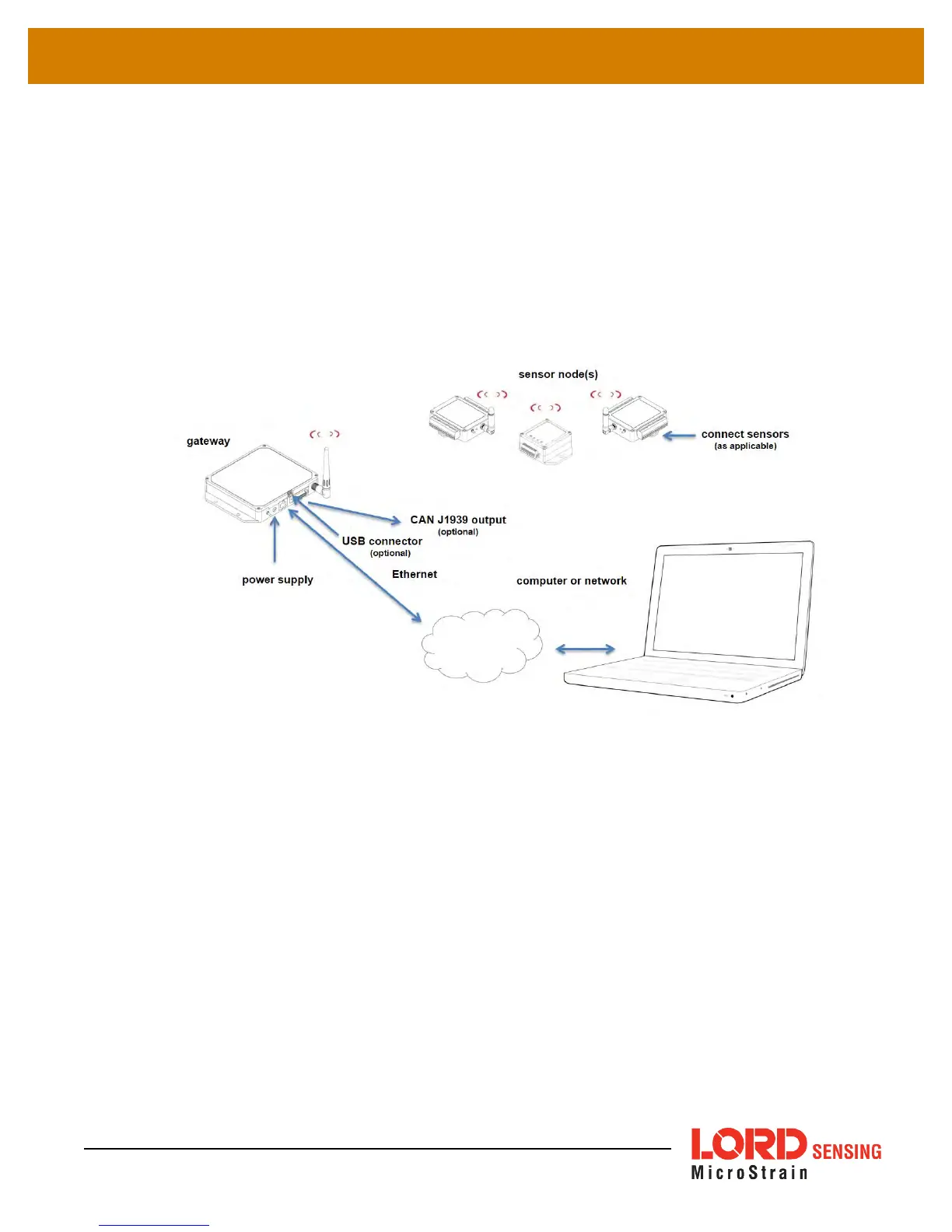

Figure 4 - System Connections
11
