WSDA
®
-2000 User Manual
3.5.2 Change Transmit Power
From the Base Station, select Configure > Transmit Power for a drop down menu of five power options
ranging from 0 dBm to 20 dBm.

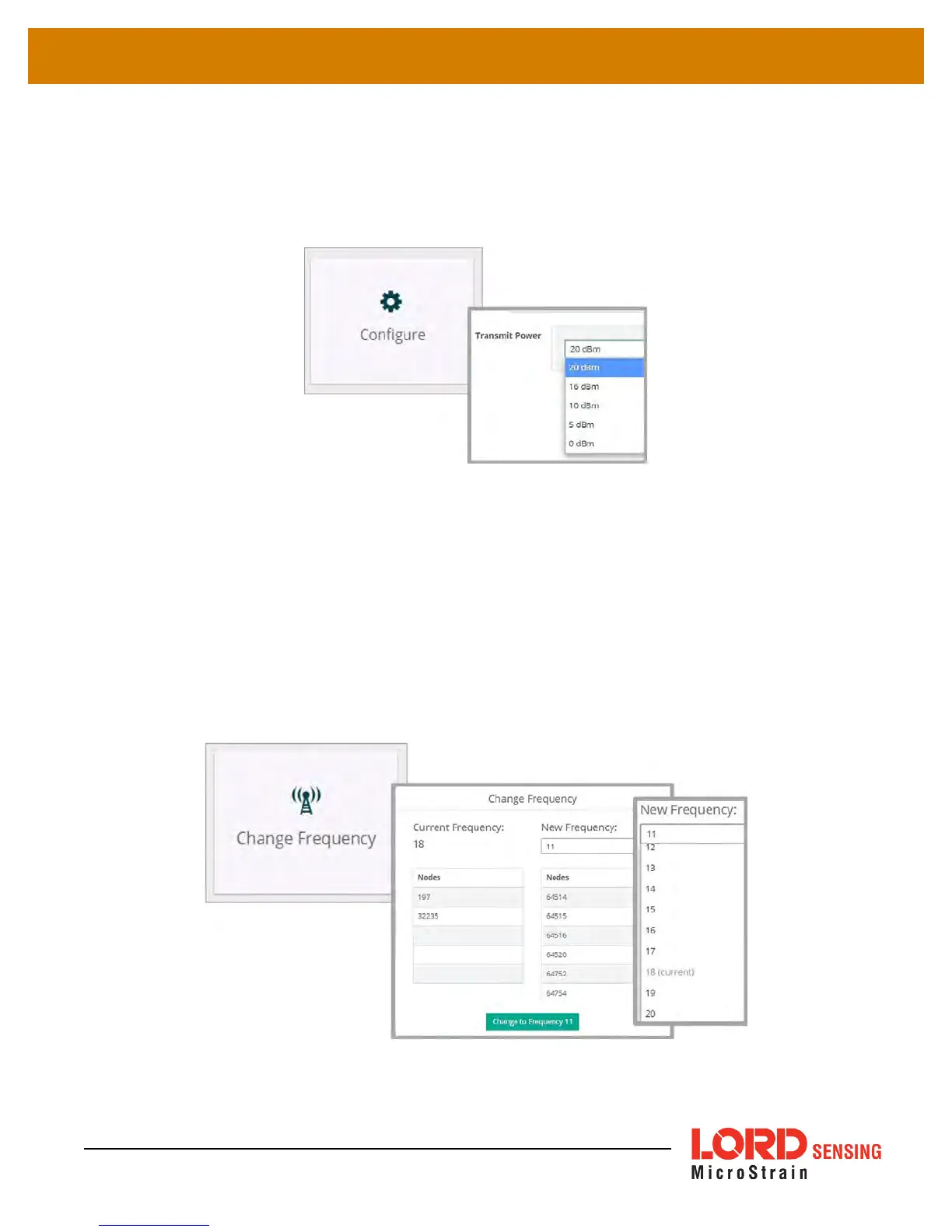

Figure 9 - Transmit Power Setting
3.5.3 Change Frequency
There are 16 available frequency channels between 2.405 and 2.480 GHz. Wireless nodes and the
gateway must be on the same frequency channel to communicate.
To move the gateway to a different frequency, select Base Station and then the Change Frequency
tile. To move the node to the same frequency, select the Nodes on Other Frequencies tile after the
gateway has been changed.
Figure 10 - Gateway Frequency
16
