WSDA
®
-2000 User Manual
7. Sensor Node Access
7.1 Connect to Nodes
Several methods can be used in SensorConnect to establish communication with the nodes: the
automatic node discovery on the same frequency, automatic node discovery on a different frequency,
and add node manually.
7.1.1 Automatic Node Discovery on Same Frequency
If the base and node are on the same operating frequency, the node will populate below the
Base Station listing when powering on the WSDA-2000.

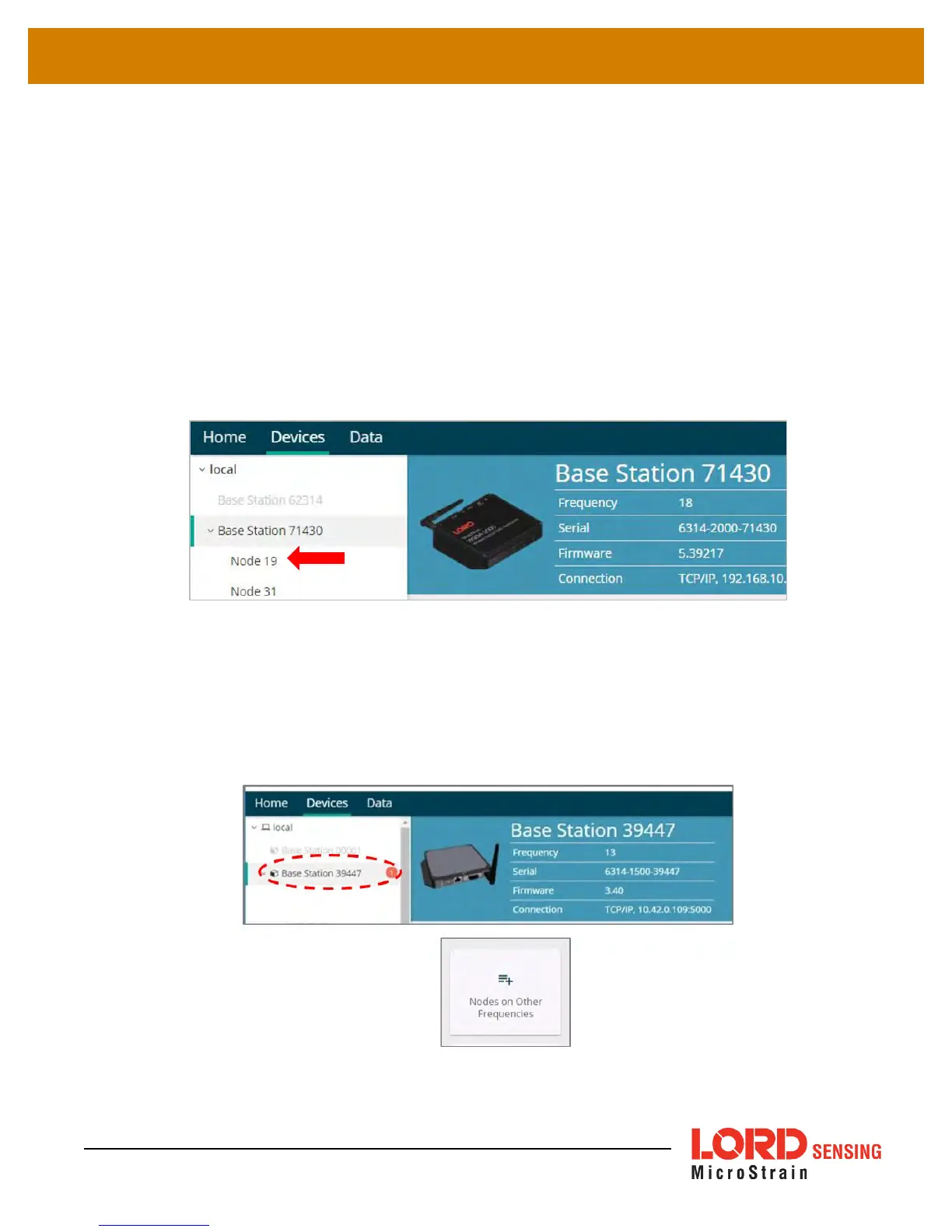

Figure 30 - Node Discovered On Same Frequency
7.1.2 Automatic Node Discovery on Different Frequency
If a red circle with a number appears next to the Base Station, the node is operating on a
separate radio channel. Select the Base Station and then select the Nodes on Other
Frequencies tile.
Figure 31 - Node On Other Frequency
49
