Camera Installation
5

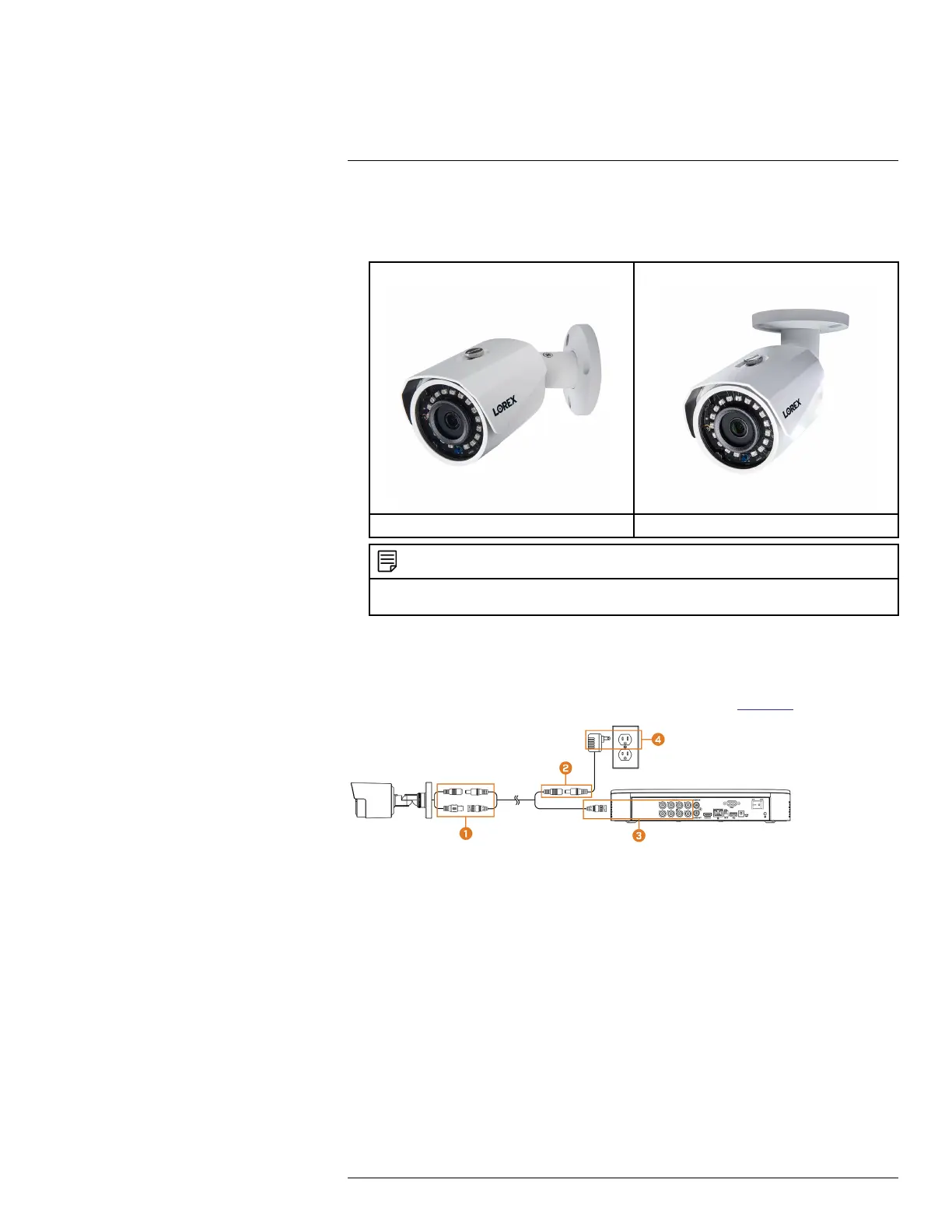

2. Adjust the camera stand to ensure that the camera has a satisfactory view of the area you
would like to monitor. Stand configuration depends on the mounting surface you have chosen
(see below for suggested stand configurations).
Wall Mount Ceiling Mount
NOTE
Counter / table top mounting is not recommended if you are planning to utilize Person and Vehicle detection
due to limited accuracy.
5.5 Connecting Camera Extension Cables
The extension cable must be a single stretch of cable between the recorder and camera. You cannot
connect multiple extension cables to each other. For all extension cable options, including maxi-
mum extension cable length, refer to your camera’s documentation at lorex.com.
1. Connect the male power connector on the BNC extension cable to the female power connector
on the camera. Connect the BNC connector to the camera.
2. Connect the female power connector on the BNC extension cable to the power adapter.
3. Connect the BNC connector to one of the Video Input ports on the rear panel of the recorder.
4. Plug the camera power adapter to a power outlet.
#LX400111; r. 5.0/56647/56647; en-US 13
