L200 Series - Front
6. MENU / EXIT BUTTON - Press the MENU key to enter the System Menu. Press the button again to
exit the System Setup or Search Menus.
7. USB - One USB 2.0 port is provided to connect a USB flash drive to the DVR.
8. PTZ BUTTON - Accesses the PTZ (Pan/Tilt/Zoom) Menu. Refer to Appendix 6 for Pan/Tilt/Zoom
options
NOTE: The PTZ option will only work with PTZ type cameras (not provided with this unit). Visit the
Lorex website at http://www.lorexcctv.com for a full range of Pan/Tilt/Zoom Cameras.
9. PLAYBACK CONTROLS - The Playback Controls have two sets of functions: Live View Functions
and Menu Functions:
• Live View Functions - Pressing the keys during Live View Mode will perform the
following functions:
o Reverse - Opens the System Information window.
o Play/Pause - Opens the Search Menu.
o Fast Forward - Sets the Live View to Sequence Mode.
o Record - Starts manual recording mode.
• Menu Functions - Pressing the keys when in the Main or Search Menus will perform
the following functions:
o Reverse - Reverses the playback of the selected Video (2x,4x,8x).
o Play/Pause - Starts or Pauses the playback of the selected video.
o Fast Forward - Fast Forwards the playback of the selected Video (2x,4x,8x).
o Stop - Stops the playback of video, and returns to the Live View screen.
o Record - Starts manual recording mode.
10. SEARCH BUTTON - Press the key to open the Search Menu

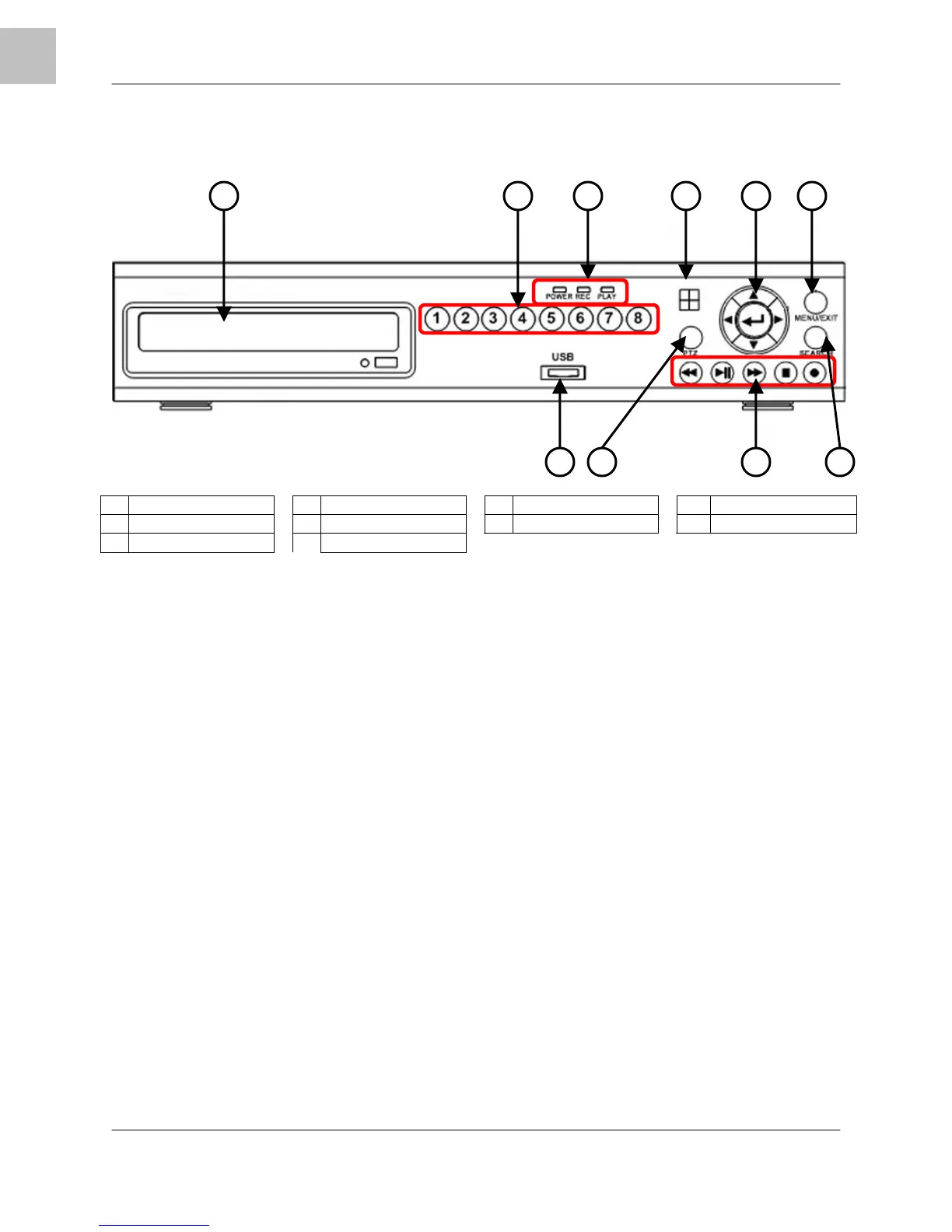

1 2 3 4 5
78 9 10
6
1 CD-DVD-RW* 4 IR Receiver 7 USB Port 9 Playback Controls
2 Channel Buttons 5 Navigation Control 8 PTZ Button 10 Search Button
3 LED Indicators 6 Menu/Exit Button
*CD-DVD-RW drive optional depending on model
