PTZ (PAN/TILT/ZOOM)
40
EN
PTZ (PAN/TILT/ZOOM)
This DVR supports a PTZ Camera via the RS485 Serial Interface (see Appendix #6 for details).

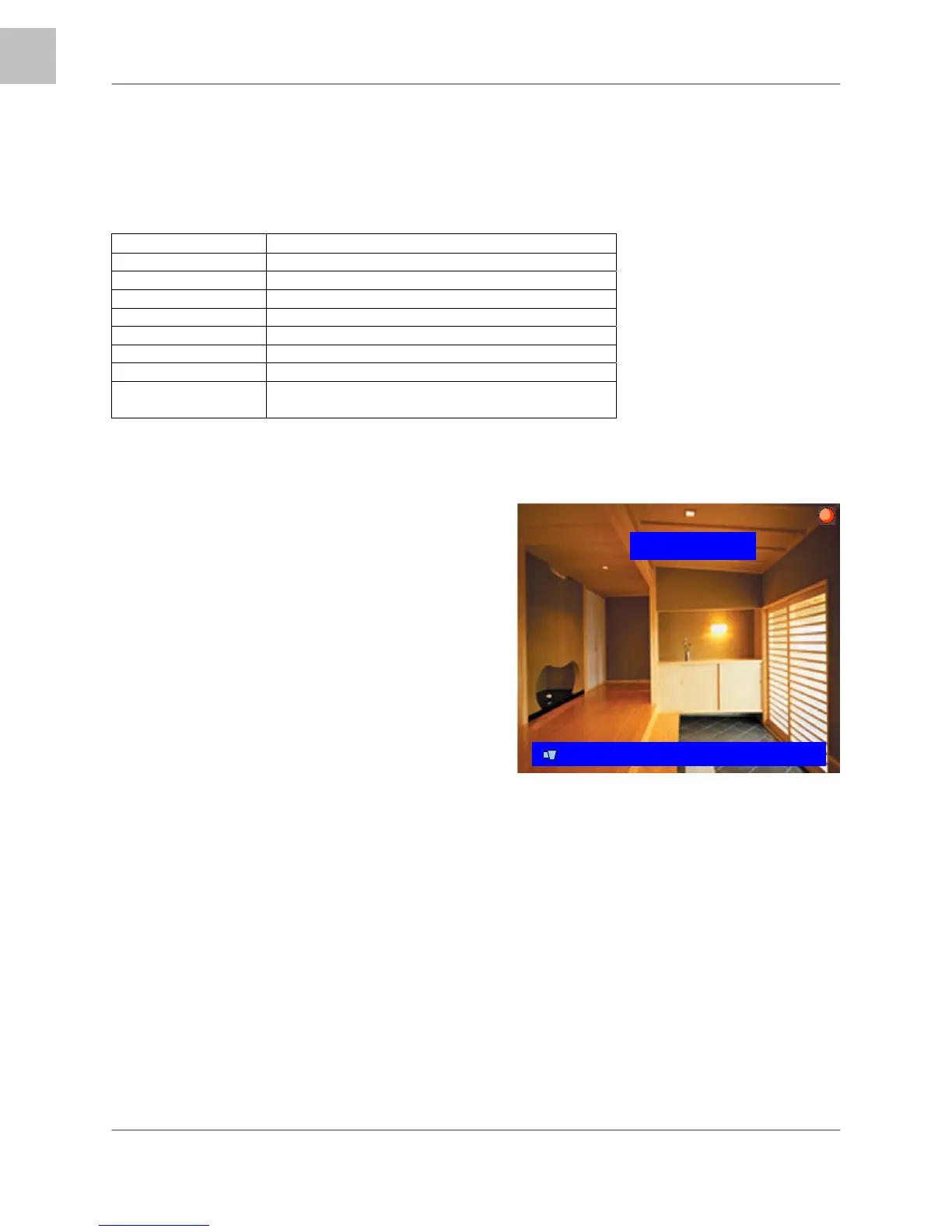

Press the PTZ button in Live Monitoring mode to enter PTZ control mode. PTZ control buttons include:
Button Description
PTZ Enter / Exit PTZ mode.
UP Moves the camera UP.
RIGHT Moves the camera RIGHT.
DOWN Moves the camera DOWN.
LEFT Moves the camera LEFT.
FF ZOOM IN
REW ZOOM OUT
CH1~8
(Select PTZ camera)
Select the camera ID for PTZ control. The
camera ID is the same as channel No.
CH1
PAN / TILT
100%4 07/01/01 01:02:03
By default, a channel is NOT selected with the
PTZ Button is pressed. Select the channel button
CH1~8 that corresponds to the PTZ Camera
Connection and Setup.
i.e. If the PTZ camera is connected to CH1, select
the CH1 button. Press the ▲▼◄► buttons to
control the camera, and press the PTZ button to
exit.
