Full Connectivity Diagram – Appendix #2
61
EN

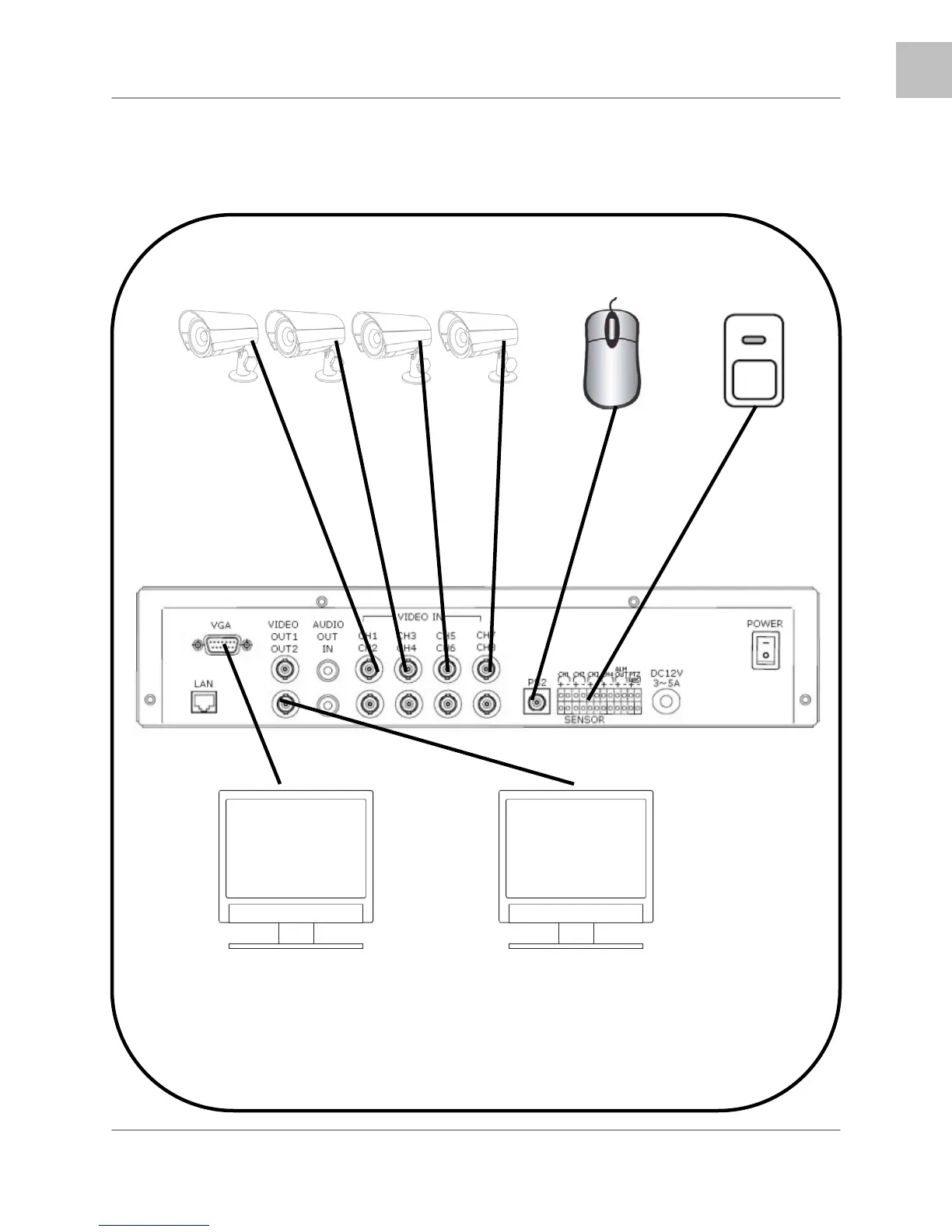

Full Connectivity Diagram – Appendix #2
The following diagram outlines a general set of connections available with the DVR.
DVR
BNC CAMERAS
PC MONITOR SLAVE MONITOR,
TV OR
OBSERVATION
SYSTEM
MOUSE SENSOR
