Appendix #6 – PTZ Control
One PTZ Camera (not included with this system) can be connected to the PTZ Control Block on the back
panel of the DVR, and are enabled through the Menu system. Additional PTZ Cameras are available at
http://www.lorexcctv.com
Installing a PTZ (RS-485 Type) PTZ Camera:
1. Connect the Transmit Cable to the 485+ port on the PTZ Control Block.
2. Connect the Receive Cable to the 485- port on the PTZ Control Block.
3. Connect the Camera to BNC Channel 1.
4. Configure PTZ Menu options.
The PTZ Camera Settings will depend on the Type of Camera - refer to the specific Camera Manual for
your brand and model of PTZ Camera.

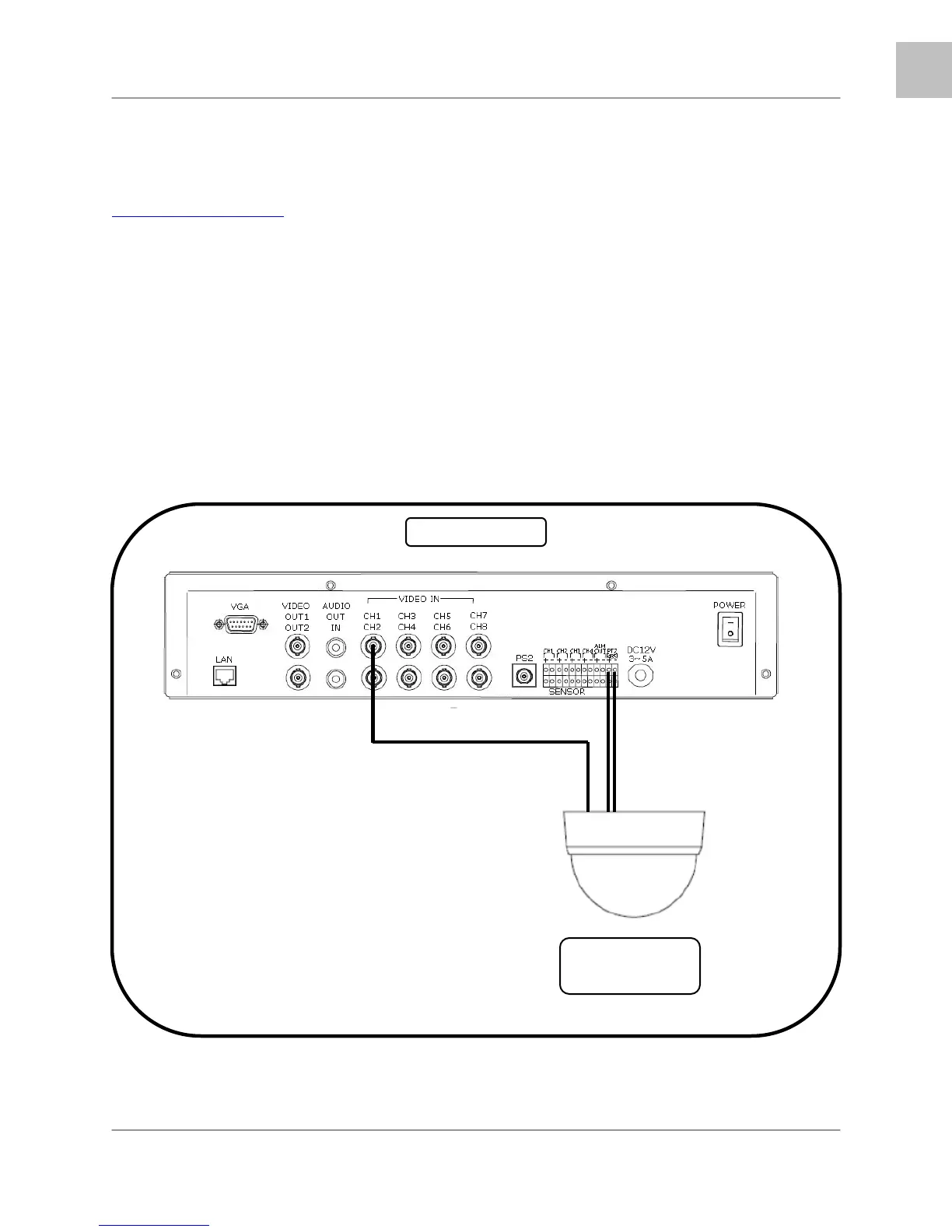

DVR
PTZ CAMERA
(Not Included)
