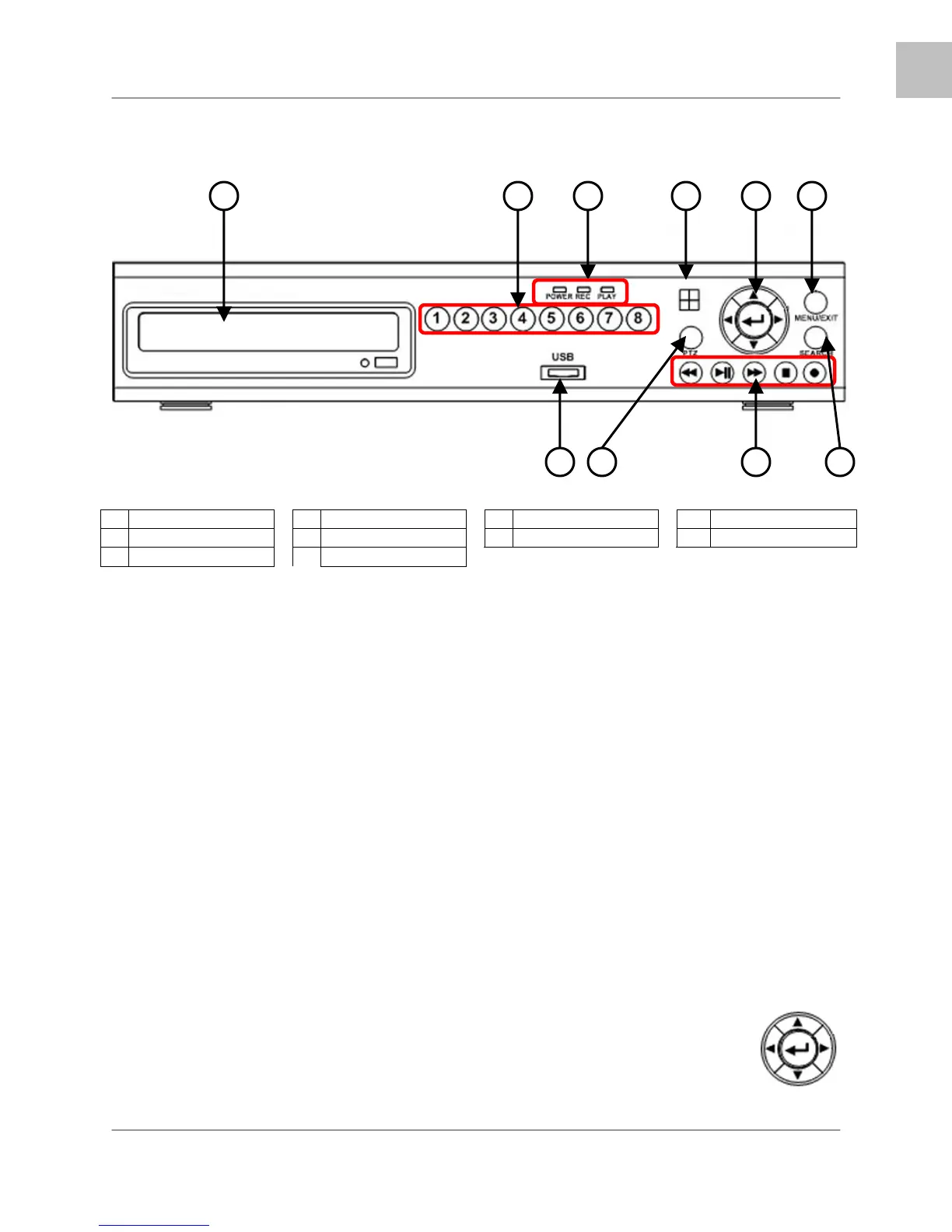

L200 Series - Front

123 4 5

78 9 10

1. CD-DVD-RW DRIVE - *OPTIONAL: CD-DVD-RW drive optional depending on model.

2. CHANNEL DISPLAY – The channel buttons will display channels:

• Channels 1~4 (L204 Series) - Press the 1~4 buttons to display the selected channel in

full screen mode.

• Channels 1~8 (L208 Series) - Press the 1~8 buttons to display the selected channel in

full screen mode.

• Channel 1 Button (L204 / L208 Series) - Press the Channel 1 button once to display

Channel 1, and press it a second time to display Channels 1~4 in QUAD Display mode.

• Channel 5 Button (L208 Series) - Press the Channel 5 button once to display Channel

1, and press it a second time to display Channels 5~8 in QUAD Display mode.

3. POWER / REC / PLAY LEDs –

• POWER LED - The ORANGE POWER LED indicates that the unit is ON.

• REC LED - The RED REC LED will blink, indicating that the unit is currently recording.

• PLAY LED - The GREEN PLAY LED will blink, indicating that previously recorded data

is being played back on the unit.

4. IR RECEIVER - Receives the signal from the Remote Control

5. NAVIGATION CONTROLS / ENTER –

• Press the navigation controls to move Up, Down, Left and Right in the

Main Menu and Search menus.

• Press the ENTER Button to select and change the values in a menu.

• Pressing the ENTER Button when displaying live video will change the

onscreen view to 8 Channel View (L208 Series Only).

1 CD-DVD-RW* 4 IR Receiver 7 USB Port 9 Playback Controls

2 Channel Buttons 5 Navigation Control 8 PTZ Button 10 Search Button

3 LED Indicators 6 Menu/Exit Button
