Basic System Setup4
NOTE
Compatible with Lorex HD IP cameras. For a list of compatible cameras, please visit
lorex.com/compatibility.

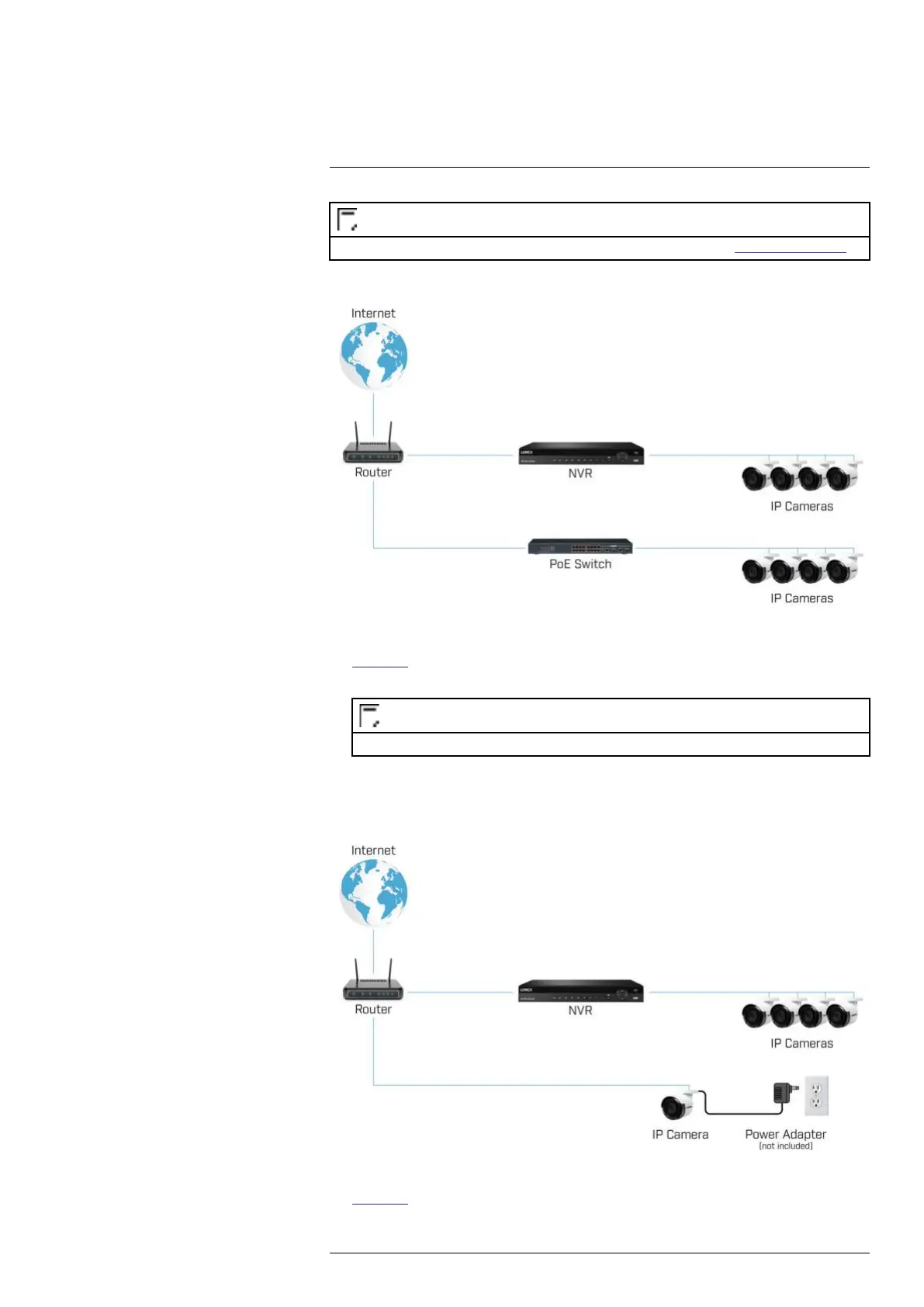

Step 1 of 2 — Option A: Connecting cameras to your local network using a PoE switch:
1. Connect an Ethernet cable from the LAN port on an external PoE switch (sold separately on
lorex.com) to your router using a CAT5e or higher Ethernet cable. Connect the power cable
to the PoE switch and to a power outlet or surge protector.
NOTE
Terminology may vary depending on the model of PoE switch you have.
2. Connect the IP cameras to the PoE switch using the Ethernet extension cables. The PoE
switch will provide power and video transmission the same way as your NVR.
Step 1 of 2 — Option B: Connecting cameras to your local network using power adapters:
1. Connect each camera to a compatible power adapter (check your camera documentation at
lorex.com for compatible power adapters for your cameras).
2. Connect the camera to your router using a CAT5e or higher Ethernet cable.
#LX400117; r. 6.0/57895/57895; en-US 10
