Operation control
Operation control 2-
16

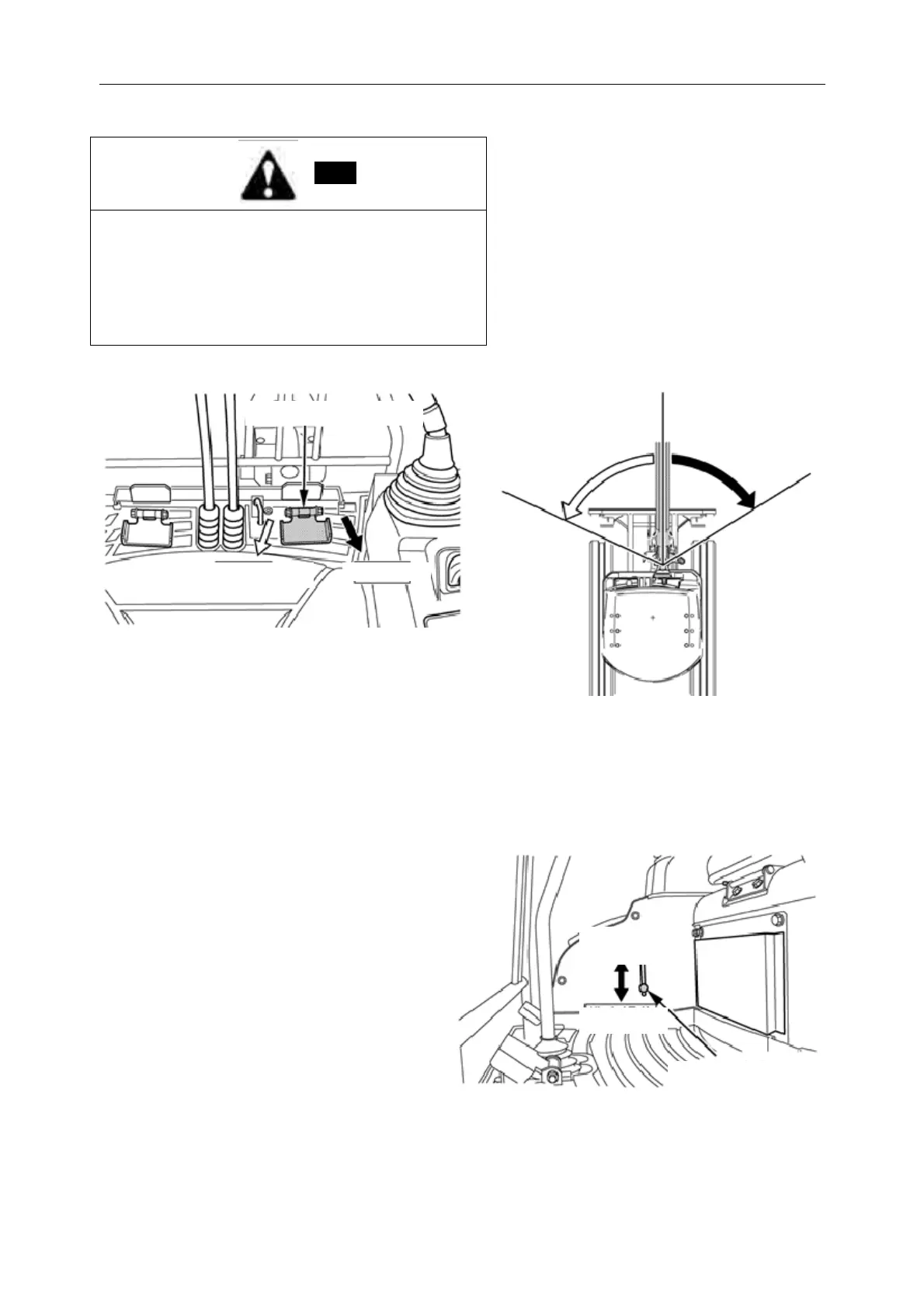

4. Swing operating pedal
Note:
* When the swing operation is n ot carried out, please
reverse the swing operation pedal to the front and lock
it.
▶ If you are negligent ……
It may cause th e machine to swing in the opposite
direction due to operation error, thus causing in jury
accident.
When the swing operation is not carried out, the swing operatio n pedal can b e inverted to the front for use
as a footrest.
5. Changeover handle for wheel base
extension/bulldozing operation
Switch between wheel-pitch ex pansion a nd
bulldozing.
Wheel base expansion... Pull up the switch
handle.
Bulldozing... Drop switch handle.
The left swing Right in
Swing operating pedal
Wheel track
scale
Bulldozin
Changeover handle for wheel
base extension/bulldozing
operation
