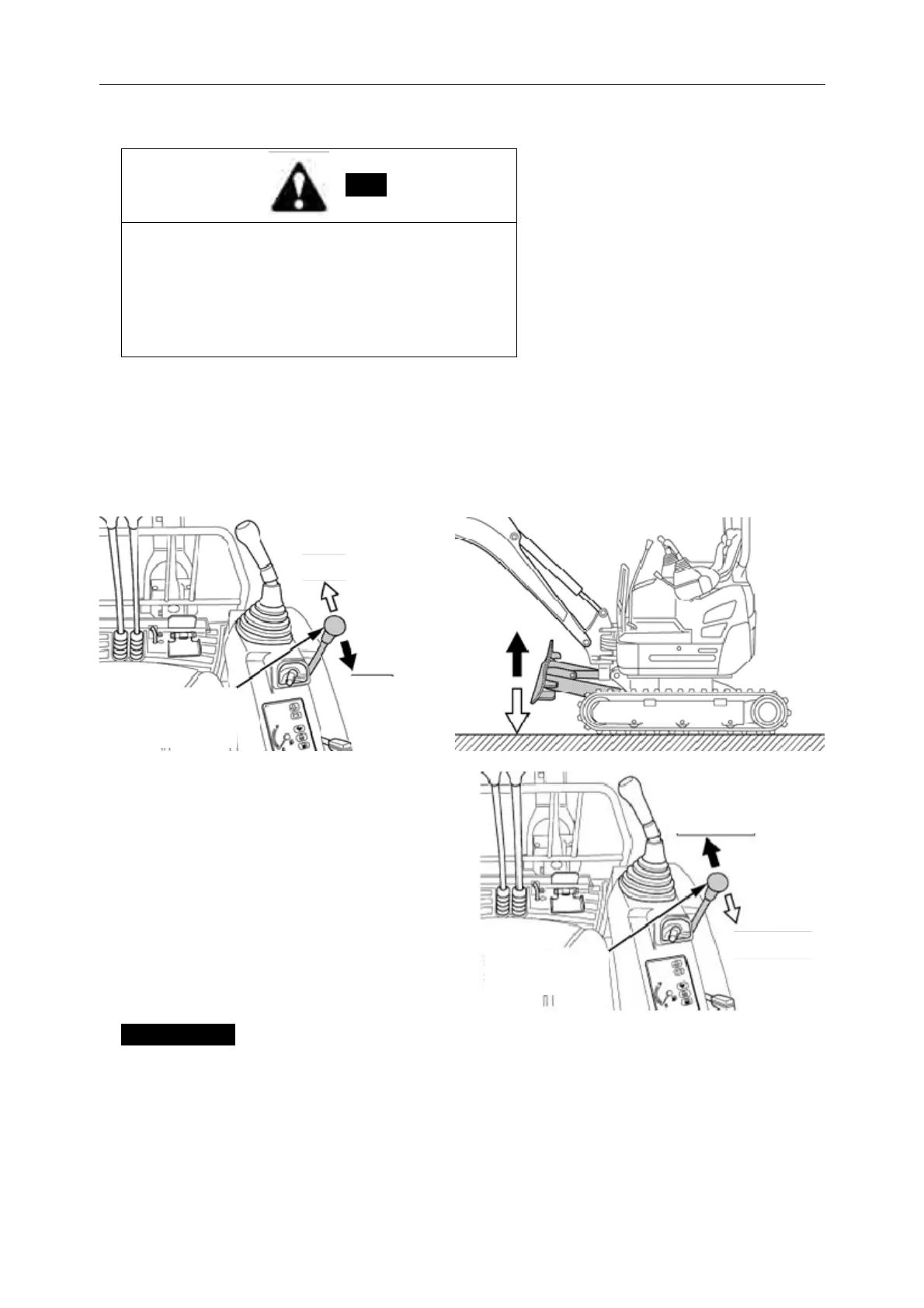

6. Handle for both wheel base extension and earth pushing operation
The operation of bulldozing is as follows:
Note:
* Please switch the handle of the wheel-base
expansion/earth-moving operation switch into place
when switching the wheel-base
expansion/earth-moving operation.
▶ If you are negligent ……
May cause injury accidents due to a ccidental
misoperation.
A. Please sit in the driver's seat and switch the wheel base expansion/bulldozing switch handle to the
"bulldozing" position.
B. The left hand USES the two driving handles for forward and backward operation, and the right hand
USES the wheelbase expansion and contraction/bulldozing operation as well as the handle for up-down
operation of the bulldozing shovel.
The operation of wheel base expansion is as
follows:
A. Please sit in the driver's seat and switch the
wheel base extension/bulldozer switch
handle to the position of "wheel base
extension".
B. Please use the wheel base expansion/earth
pushing operation and handle for wheel
base expansion
IMPORTANT
A. Please keep the chassis in a maxi mum
extension (1280mm) and re traction
(990mm) state. If the telesc opic operatio n is
stopped halfway, the telescopic foot will not
be fixed and the rotating frame will shake.
Lower
Raise
Handle for both wheel base
extension and earth pushing
operation
Wheel base extension
Wheel base shrinkage
Handle for both
wheel base
