Operation control
Operation control 2-
18
B. Use by shrinking the wheelbase only when passing through flat, narrow Spaces
C. Be sure to extend the wheelbase to the maximum width when driving in other p laces, carrying out
digging operations, pushing and crushing operations. Otherwise, driving with a narrow wheelbase
may cause the car to roll over.
D. Do not approach the bulldozer when the wheel base is telescopic. The shoveling may also be carried
out at the same time as the wheelbase is stretched, posing the risk of being clamped.
E. When there are obstacles that are not co nducive to the expansion of the wheel base, remove the
obstacles or move the machine to the ground before the e xpansion of the wheel base. In addition,
remove dirt from the expansion site if it is stuck.

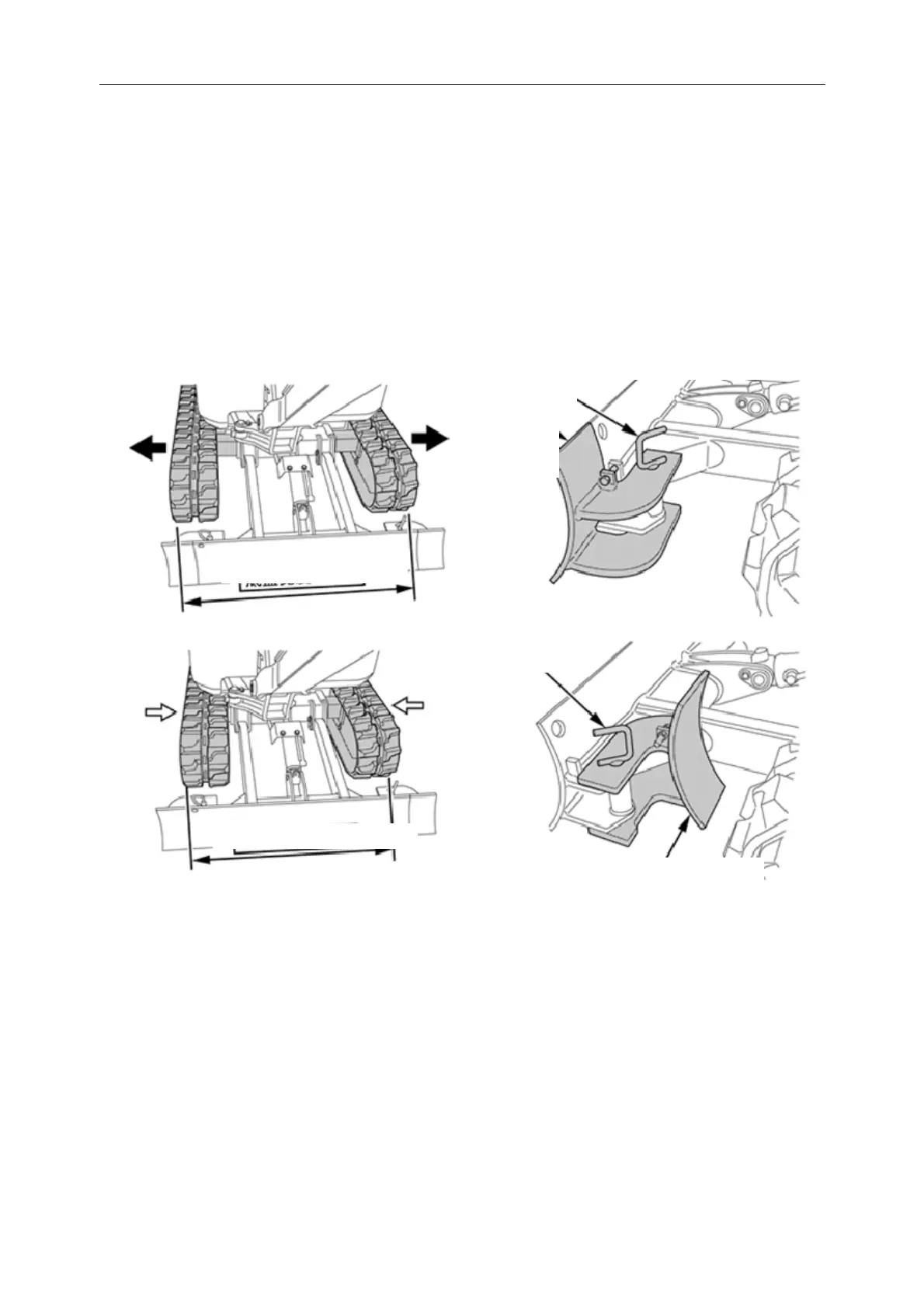

Change the extension plate of the bulldozer to change the width of the bulldozer.
A. When the shoveling width is narrowed by the width, pull out the shoveling pin, reverse the
shoveling lengthening plate, align the pin hole p osition with the narro west width hole, and then
insert the shoveling pin.
B. The same method is used to change the narrowest width to the widest width.
Chassis width 1280mm
Chassis width 990mm
Extension plate for shovel
Plow pin
Extension
late for
shovel
Plow pin
