LPKF MultiPress S - Accessories

What is what?
20 MultiPress S Operating manual 3.0 Rev: 3.6.2009
2.4 Accessories
Included in delivery
Consumables (not included in delivery)
For safe and reliable operation of the multi-press S we recommend the
original LPKF base materials and consumables. These are available as
economical multilayer sets or in single packing for different applications.
Disclaimer LPKF will not be responsible for damage and malfunction caused by the
use of other materials/consumables.

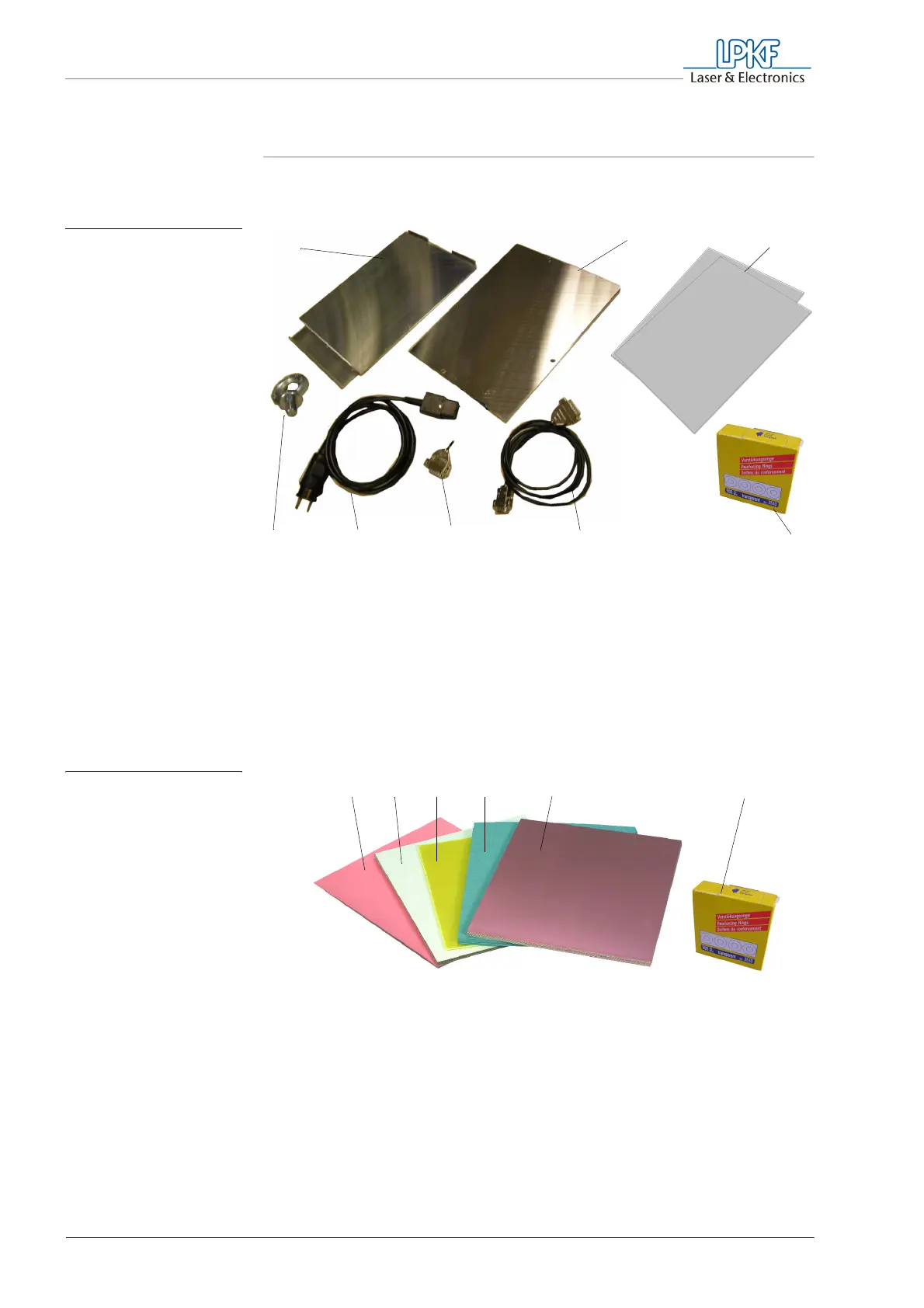

Fig. 5: Accessories
1 Lower press mold
2 Upper press mold
3 Press cushion (gray fibre)
4 Sealing rings
5 Data cable for optional pump
6 Dummy plug
7 Mains cable
8 Lifting ring
1
2
3
56 47
8
Fig. 6: LPKF multilayer set
1 Laminate Multilayer 0/5 µm according to
appliance with or without protection foil
2 Prepreg (yellow)
3 Press cardboard (blue)
4 Core material FR4 18/18 µm
5 Sealing rings
A) press cushions - included in delivery
1A2 3
4
5
