LPKF MultiPress S - Fig. 11: Multilayer in Pressform

What you should know
32 MultiPress S Operating manual 3.0 Rev: 3.6.2009

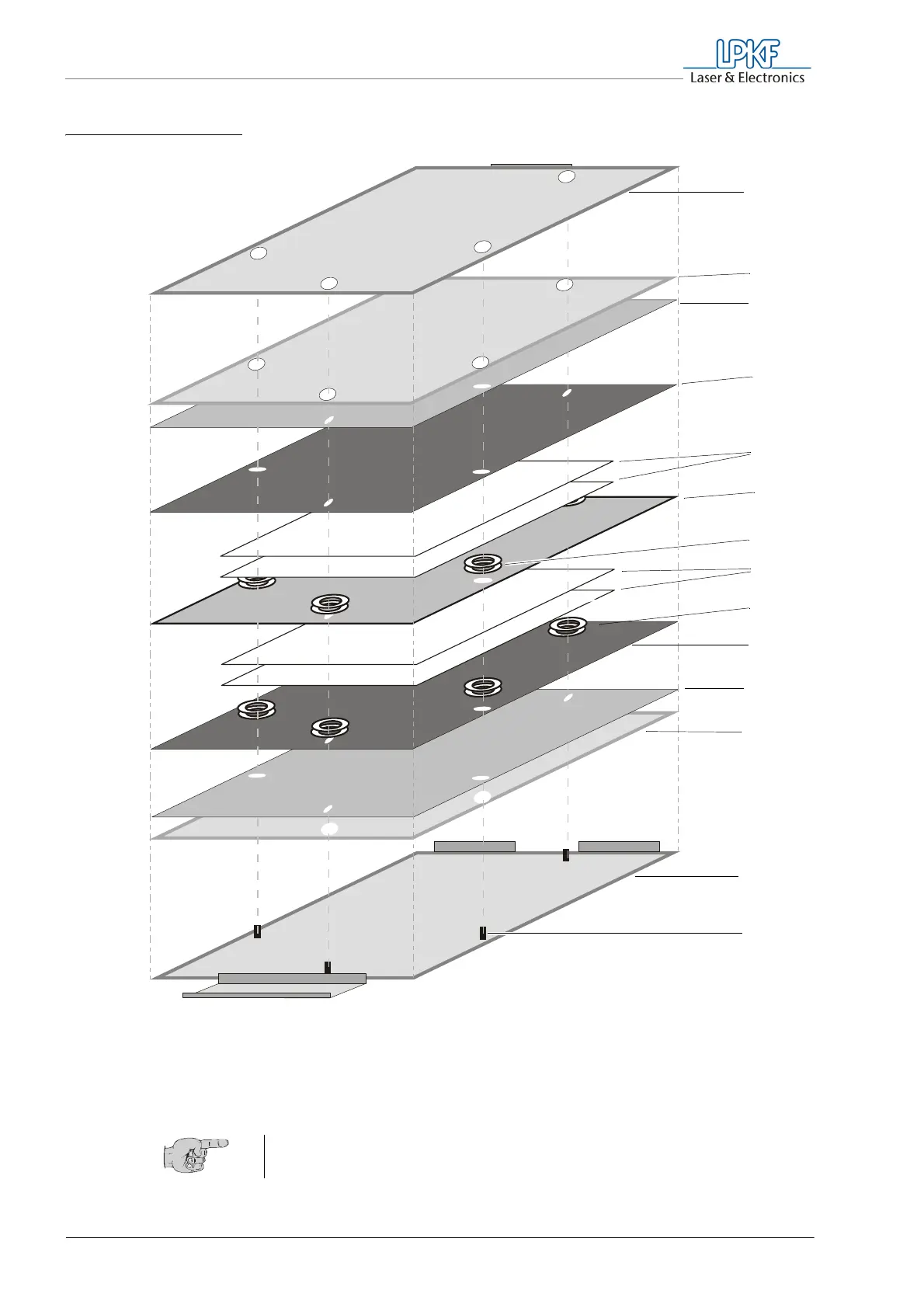

Fig. 11: Multilayer in Pressform
1 Press mold (upper part)
2 Press cushion
3 Press sheet
4 Laminate
(Laminate on upper side)
5 Prepreg (1 or 2 layers)
6 Core material
7 Sealing rings (1-/2 rings
8 )Prepreg (1 or 2 layers)
9 Sealing rings (1-/2 rings
10 Laminate
(Laminate on lower side)
11 Press sheet
12 Press cushion
13 Pressmold (lower part)
14 Passhole pins in press
mold
Tipp: In order to avoid skin fat deposit and dust on the materials, you
should work with fluff-free gloves.
1
2
3
4
5
6
7
8
9
10
11
14
12
13
