Operating the system
ProtoMat E34/E44
48/78
LPKF Laser & Electronics AG | V. 1.0
 Creating fiducials
Fiducials are created in the Fiducial layer and are drilled into the material during the
phase DrillFiducial. They have a defined diameter of 1.5 mm. All drilled holes are
recognized by the system's camera.
It is recommended to create four fiducials. If you use only two fiducials, arrange them
diagonally.
1. Click on Insert > Fiducials > Fiducial.
2. The following dialog is displayed:

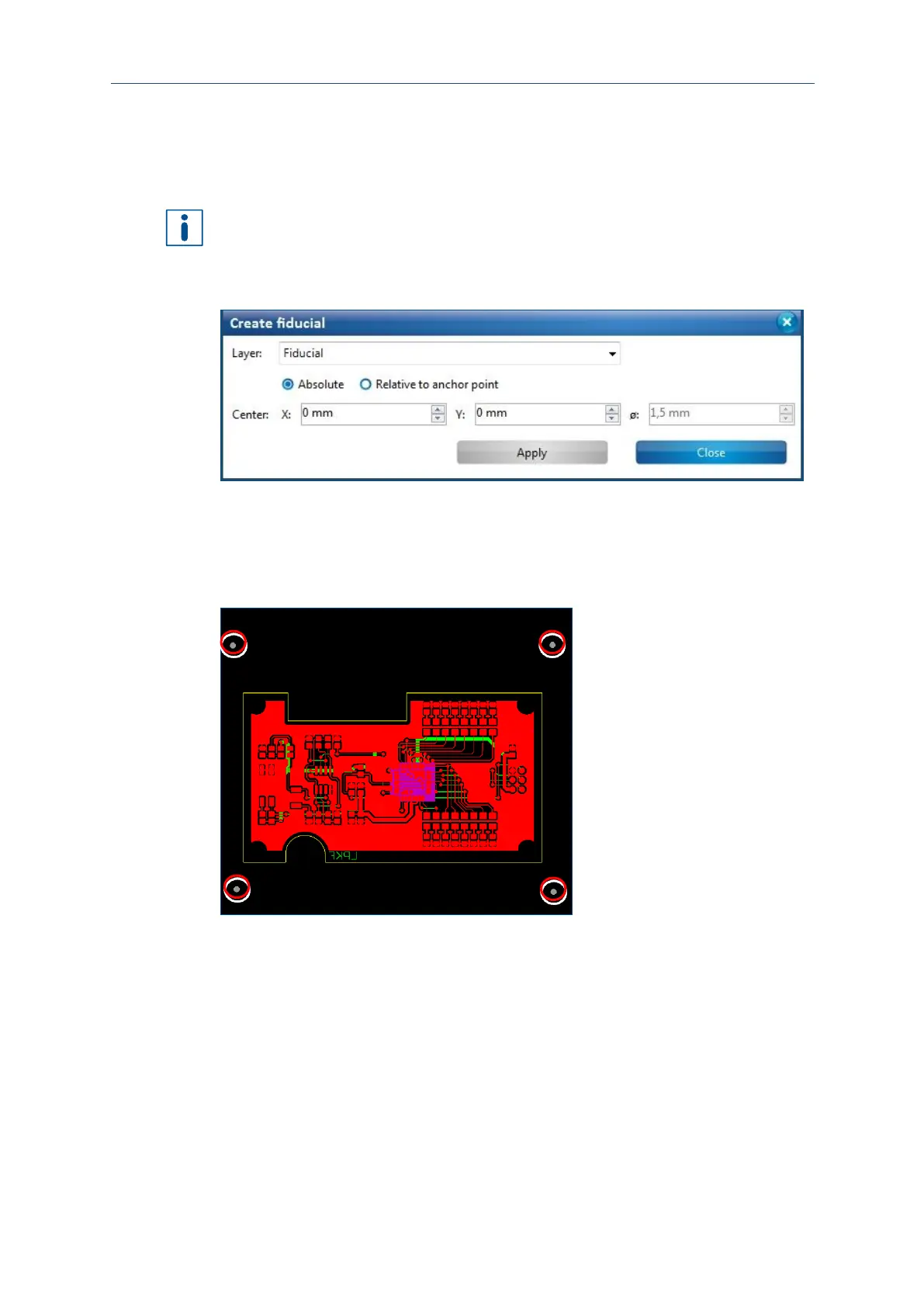

Fig. 28: Create fiducial
3. Click on the positions in the CAM view where you want to place the fiducials.
or:
Create the fiducials by entering the x and y position in the dialog.
 The view changes as follows:
Fig. 29: Four fiducials
4. Click on [Close].

The fiducials have been created.
