Operating the system
ProtoMat E34/E44
66/78
LPKF Laser & Electronics AG | V. 1.0

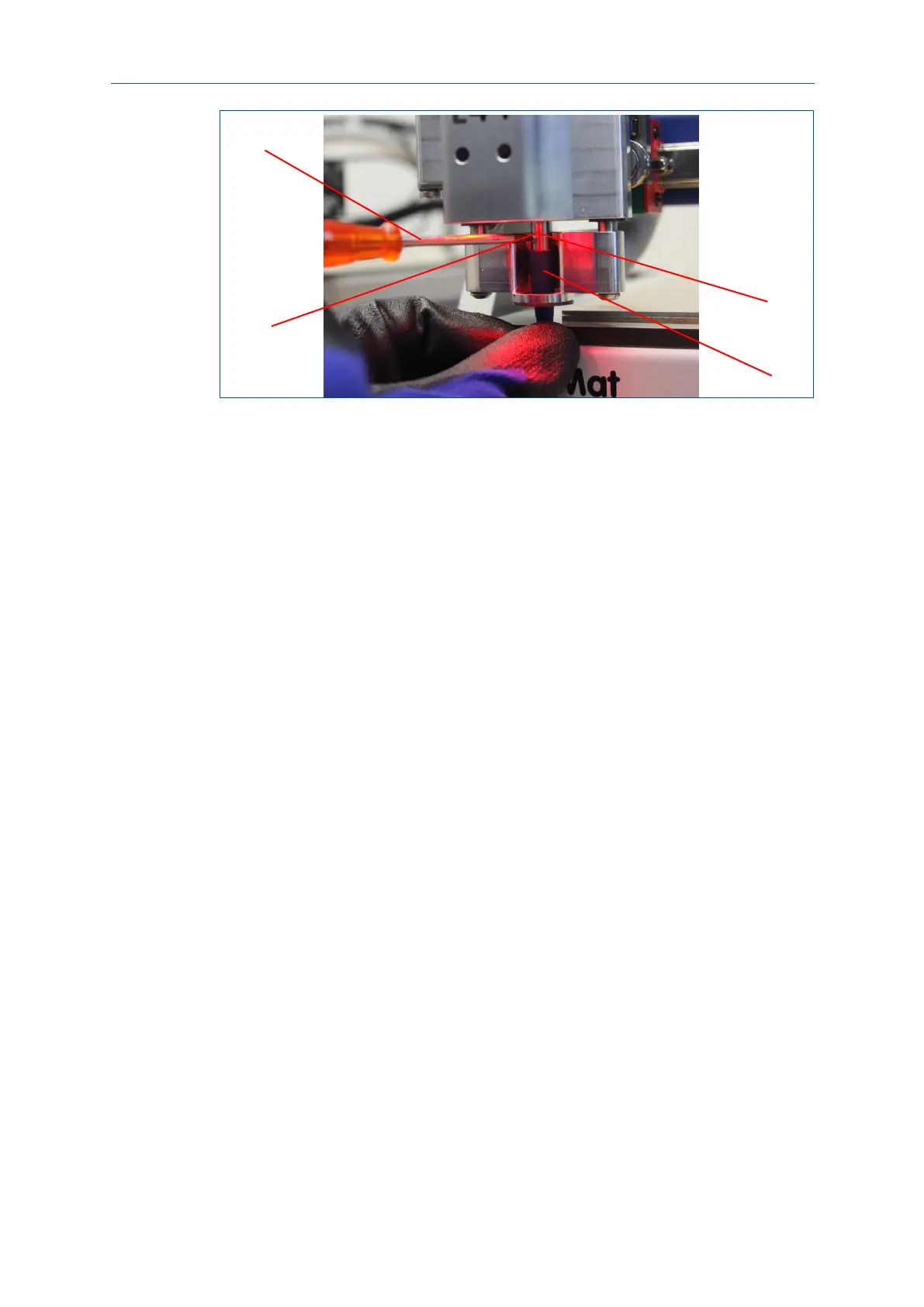

Fig. 60: Inserting a tool
1 Collet
2 Insertion tool
3 Locking screw
4 Screwdriver
5. Use the provided screwdriver to loosen the locking screw (3).
6. Insert the insertion tool (2) with the inserted tool into the collet (1).
7. Tighten the locking screw.
8. Click on [OK].

The tool has been inserted into the collet.
1
4
3
2
