LS tractor MT563 - Differential Lock Switch

3 -30
(10) Differential lock switch
 This is effective for working on a slippery ground.
If the tractor cannot go forward as one side rear
wheel is slipping, depress the clutch pedal and
press down the upper side(symbol part) of the
differential lock switch.
 If engaged, both rear wheels will rotate at a
same speed and make it possible to move the
tractor. But, it disturbs steering operation. After
escaping from the slippery ground, release the
differential lock.
 Push the lower side of the switch or press down
the brake pedals once to release the differential
lock. If the traction of rear wheels is equalized,
the lock is released automatically.
 If the differential lock does not released, i.e.
when turning to the right or left, the turning
radius is larger than normal operation, depress
the clutch pedal once and press one-side brake
pedal slightly for a second, and then the other.

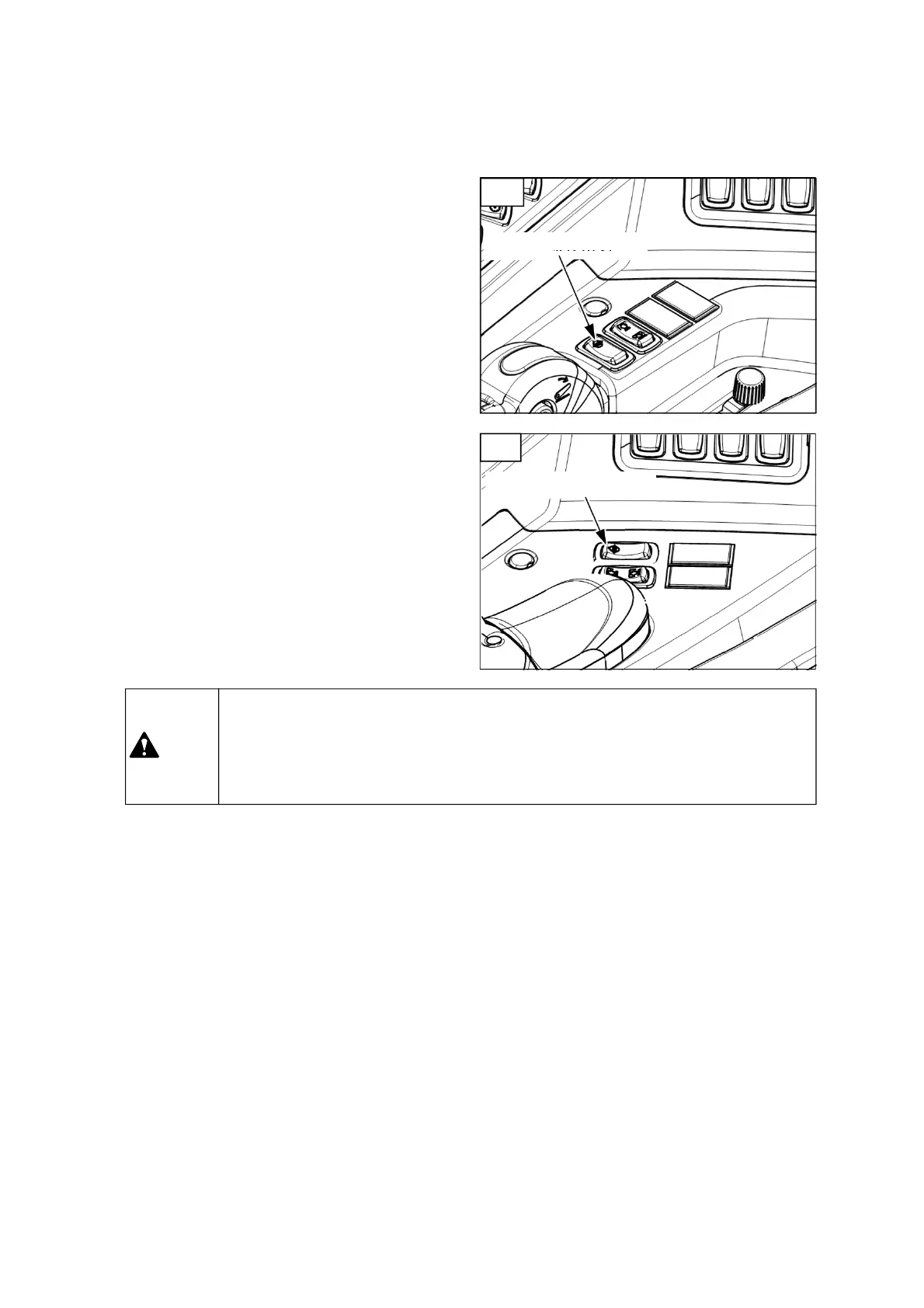

Differential lock switch
MHL
Differential lock switch
▶Do not turn the tractor while the differential lock is engaged.
▶Do not use the differential lock while driving on the road.
▶Stop or slow the tractor before engaging the differential lock.
Warning
EHL
