LS tractor MT563 User Manual
4
of 1
of 1 rating
254 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
3
-1
7

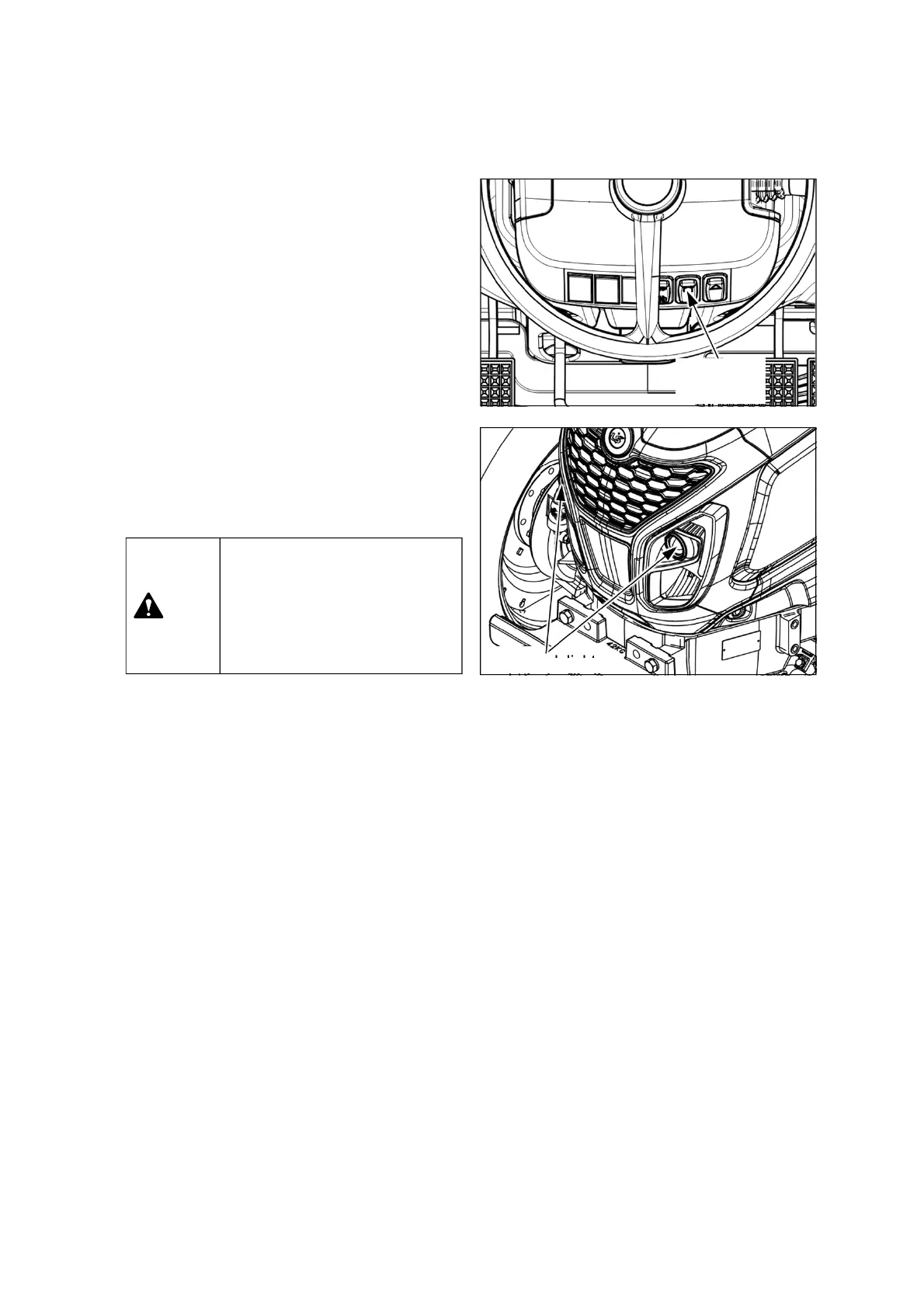

(9) Grille work light switch
This is
used to turn on/off the griller
work lights
of the front grille.
ON
-
Press the upper side(symbol part) of the
switch.
OFF
-
Press the lower side of the switch.
Grille work
Light switch
Grille
work
lights
▶
When driving on the road at
night, do not let the work lights
stay tur
ned on. It
may c
ause a
disturbance
to the driver of
the
oncoming car
.
Caution
88
90
Table of Contents
Table of Contents
11
General Notices for Safety
17
Note to the Owner - General Information
17
Before Using the Tractor
19
Manual Scope and Required Training Level
21
Metric and Imperial Units Abbreviations
23
Product Identification Number (PIN)
25
Operator's Manual Storage
27
Tractor Orientation
28
Safety Precautions (Read this for Safety before Using)
29
Notices before Using the Tractor
29
Notices When Starting Engine
33
Notices While Operating/Using the Tractor
34
Notices When Connecting Implement
37
Notices When Towing the Tractor
38
Notices When Transporting the Tractor
38
Notices When Servicing the Tractor after Work
39
Notices When Handling Diesel Fuel
40
Notices When Leaving the Tractor
41
Notices Relating to Toxic Substances
41
Tractor Stability
42
Ecology and the Environment
45
Symbols
47
Safety Decals
48
Instructional Decals
56
Long-Term Storage
59
Preparation for Storage
59
Check & Maintenance During Storage
60
Preparation for Reuse
61
Instruction for Safe Operation
63
The Name of each Part
63
Boarding and Exiting the Tractor
64
Boarding the Tractor
64
Seat Adjustment
65
Seat Belt
67
Tilting Steering Wheel
68
Ventilation (Cabin Only)
68
Exiting the Tractor
69
Safety Device
70
Hood (Bonnet)
70
Fender
70
PTO Safety Cover and Protection Cap
70
Roll-Over Protective Structure (ROPS)
71
Instruments and Controls
73
Instrument Panel and Front Controls
73
Instrument Panel
74
Key Switch
82
Throttle Pedal
82
Clutch Pedal
83
Shuttle Lever (Synchro-Shuttle)
83
Brake Pedals
84
Combination Light Switch
85
Hazard Warning Light Switch
88
Grille Work Light Switch
89
DPF Switch
90
Beacon Lamp Switch (if Fitted)
95
PTO Switch (if Fitted)
95
Right-Hand Controls and Cabin Pillar
96
Throttle Lever
96
Main Gear Shift Lever
97
Work Light Switch
98
Window Wiper&Washer Switch (Cabin Only)
99
Electrical Power Outlet Socket (Cabin Only)
100
Indoor Light (Cabin Only)
100
Audio Player (Cabin Only) (if Fitted)
100
4WD Switch
101
Parking Brake Lever
101
Differential Lock Switch
102
PTO Mode Switch (Optional)
103
PTO Switch
104
Engine Speed Cruise Control (ESC) Switch
105
Left-Hand Controls
107
Range Gear Shift Lever
107
Creeper Gear Lever (if Fitted)
108
PTO Gear Lever
108
Passenger's Seat (if Fitted)
109
Power Shuttle System (PSS) (if Fitted)
110
Power Shuttle Lever (PSS)
110
Clutch Pedal (PSS)
112
Clutch Button (PSS)
113
CAL/SEL Switch (PSS)
113
Engaging Speed +/- Switch (PSS)
114
Error Diagnosis Code (PSS)
115
Hydraulic System
117
Safety Precautions
117
Steering System
118
Hydraulic Lift Control (MHL)
119
Remote Control Lever and Quick Coupler (Optional)
122
Joystick Lever (Optional)
123
Auto Lift Control (MHL, if Fitted)
124
Hydraulic System Diagram
125
Operation and Work
127
How to Handle New Tractor
127
Check Points
127
Notices in Handling New Tractor (Engine Brake-In Procedure)
127
Engine Start and Stop
128
Engine Start
128
Start in Cold Weather
130
Engine Stop
130
How to Drive and Stop
131
Transmission Warm-Up in Cold Weather
131
How to Drive
132
Changing Speed
134
Emergency Stop
134
Stopping Tractor
135
Parking
136
Handling Turbocharger (if Fitted)
136
Transport on Public Roads (1) Safety Rules When Driving Tractor on the Roads
137
Light Operation
138
7-Pole Connector (Optional)
139
Notices When Towing the Tractor
140
Notices When Transporting the Tractor
142
Field Operations
143
Rear 3-Point Linkage
143
Power Take-Off (PTO) Operation
147
Hitch and Drawbar (Optional)
151
Technically Maximum Permissible Mass
152
Tires and Load Capacity
153
Adjusting Wheel Tracks and Tire Replacement
154
Using Front-End Loader (if Fitted)
159
Adjusting Steering Angle
162
Recommended Maximum Specification of Implements
163
Ballasting Weights (Optional)
164
Working in Hazardous Area
167
Driving Speed
168
Lubrication and Maintenance
171
General Information
171
Tightening Torque for Normal Assembly
172
Standard Torque Data for Hydraulics
174
General Specification - Diesel Fuel
177
Biodiesel Fuel
178
Refueling the Tractor
180
Change Engine Coolant to Organic Acid Technology (OAT) Coolant
181
Access for Maintenance
182
Maintenance Chart
183
Lubricants and Capacity
185
First 50 Hour Check
186
When the Warning Indicator Lights
187
Drain Water from Fuel Filter
187
Engine Oil Pressure Indicator
188
Battery Charging Indicator
188
Check before Starting (Daily Check)
189
Engine Oil
189
Fuel Tank
190
Instrument Panel & Indicators
190
Engine Coolant
191
Air Cleaner (Dry Type)
192
Cleaning of Radiator and Radiator Screen
193
Adjustment of Clutch Pedal Play
195
Adjustment of Brake Pedal Play
196
Every 50 Hour Check
197
Lubricating Grease Nipple
197
Cleaning Radiator and Radiator Screen
197
Checking Transmission Oil
198
Checking Front Axle Oil
198
Battery Check
199
Air Cleaner (Dry Type)
199
Hydraulic Hoses and Leakage
199
Cleaning Cabin Air Filters
199
Every 100 Hour Check
200
Checking and Adding Engine Oil
200
Every 300 Hour Check
201
Replacing Engine Oil and Filter
201
Replacing Hydraulic Oil Filter
202
Replacing Power Shuttle Oil Filter (if Fitted)
202
Checking Brake Oil
203
Tension Adjustment of Fan Belt
204
Toe-In
204
In-Line Pressure Filter (if Fitted)
204
Cleaning Fuel Tank
205
Every 500 Hour Check
206
Changing Front Axle Oil
206
Changing Transmission Oil
207
Replacing Fuel Filter Cartridge
208
Replacing Cabin Air Filters
209
Every 1000Hr or 1-Year Check
210
Replacing Air Cleaner Element (Dry Type)
210
Adjusting Engine Valve Clearance
211
Checking Nozzle Injection Pressure
211
Every 1500Hr or 2-Year Check
212
Replacement of Engine Coolant
212
Cleaning Emission Related Parts
215
Every 3000Hr Check
216
Cleaning Emission Related Parts
216
General Maintenance (When Required)
217
Air-Bleeding from Fuel System
217
Air-Bleeding from Brake Lines
220
Air-Bleeding from Clutch Line (Synchro-Shuttle Models Only)
220
Fuse & Main Fuse
221
Battery Handling and Notices
224
Alternator and Drive Belt - Check
228
Turn Signal Light Bulb- Replace
229
Headlight Bulb - Replace
230
Touch-Up Paint Color
231
Troubleshooting
232
Air Conditioning System (Cabin Type)
237
The Name of each Part of Cooling and Heating System
237
How to Use Air Conditioner and Heater
238
How to Operate Air Conditioner and Heater
238
Every 6 Month Check
239
Checking Refrigerant Amount
239
Cleaning Condenser and Radiator Screen
239
Checking Leakage
239
Belt Tension Adjustment
240
Cleaning and Replacing Cabin Air Filters
240
Every Year Check
241
Compressor Check
241
Control Switch Check
241
Using Cut-Off Valve (if Necessary)
242
Troubleshooting
243
System Diagram
245
4
