4 -17
1. Lift rod (RH)
2. Stabilizer
3. Lower link
4. Lift rod (LH)
5. Upper link
6. Lift rod pin
7. Top link pin
①
③
④
⑤
⑥
⑦
②

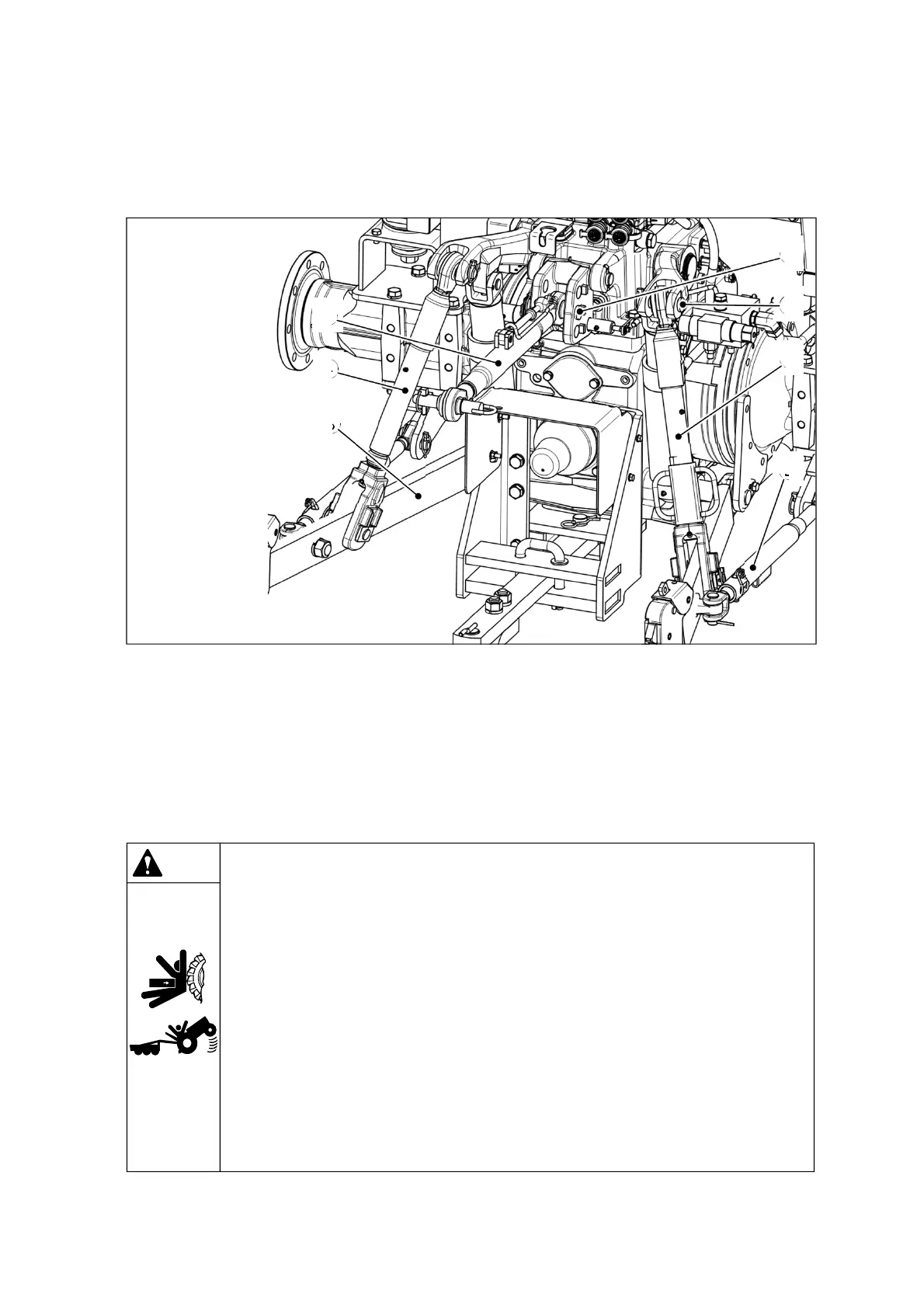

(1) Rear 3-point linkage
4-5. Field Operations
When attaching a rear implement, comply with the followings.
1. Set the implement upright on a level surface and approach the implement in reverse.
2. Stop the tractor on a adaptable attaching position and apply the parking brake.
3. Connect lower link(3) to the implement and insert the lock pin firmly. (left, right)
4. Connect upper link(5) to the implement and insert the lock pin firmly. Wide adjustable range of the
upper link provides you easier attachment.
5. Fix the implement firmly with stabilizer(2).(left, right).
6. When detaching the implement, comply with the same procedure in reverse.
Warning
▶Before attaching/detaching an implement, place the PTO switch in “OFF” position
and the PTO gear lever (if fitted) in neutral position, and apply the parking brake.
▶When attaching/detaching an implement, be sure to assemble and tighten the
connecting parts correctly.
▶If your tractor is used to tow heavy loads, always use an approved drawbar or hitch
to avoid a tipping, turnover and personal injury. Never connect the loads to the 3-
point linkage, rear axle, or other parts.
▶Never connect an implement that requires more power than capacity of your tractor.
▶Never stand between implement and tractor when connecting implement.
▶Do not change the pressure set of the relief valve arbitrarily to increase the lift
capacity of the 3-point linkage. It can cause fatal damage to the hydraulic system.
