4 -18
Lift rod (LH) Lift rod (RH)
521~635 mm
( 20.5 ~ 25.0 in. )
495~635 mm
( 19.5 ~ 25.0 in.)

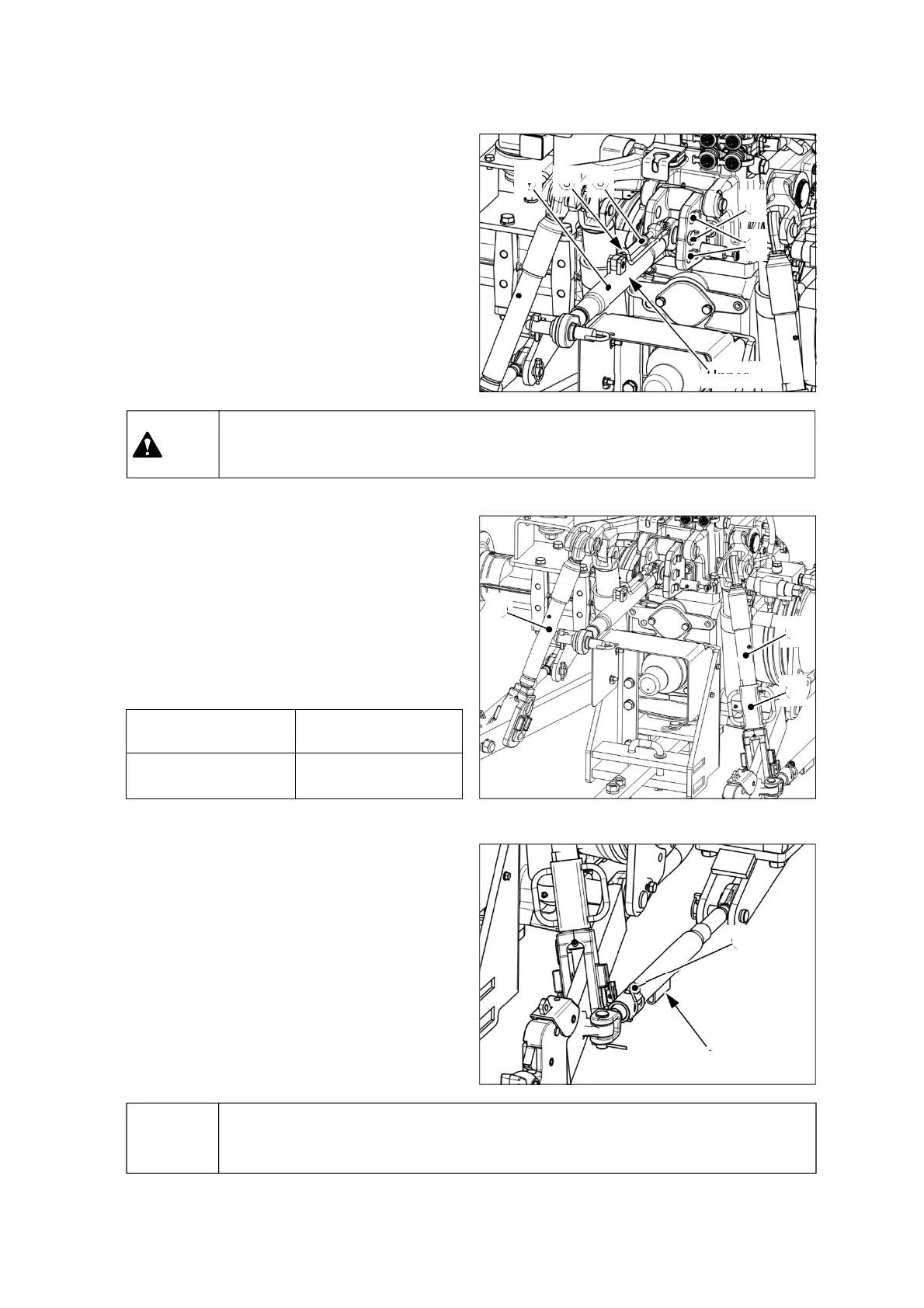

① Upper link installation and
adjustment
Select a suitable attaching hole(2) depending on
the implement.
To adjust the length of the upper link, release the
locking spring(3) and turn the sleeve(4) with
handle(6).
Fix the handle(6) with locking spring(3) after
adjusting.
Adjustment range : 550~855mm (21.7~33.7 in)
② Adjustment of lift-rod (LH/RH)
For lift-rod (LH), remove the upper lift-rod pin
and turn the upper part of the lift rod.
For lift-rod (RH),
- Lift up the handle(4) and turn it to the left or
right to adjust the length.
- Lock the lift rod handle to the lower part after
adjusting.
⑥
④
②
⑤
③
Upper link
④
③
①
▶When adjusting the stabilizer’s length, set the implement’s lateral swinging
clearance to be 20~40mm. (0.8~1.6 in.)
Notice
①
Stabilizer
③ Adjustment of stabilizer (optional)
- Check link type
Pull up the link pin(1) and turn the grip of the
stabilizer clockwise/counter-clockwise.
Insert the link pin(1) into the hole and let it
tightened firmly by locking spring.
▶ Do not adjust the length of the upper link or lift-rod over the maximum limit. It may
cause fatal injury or death by falling object.
Caution
