3 -53

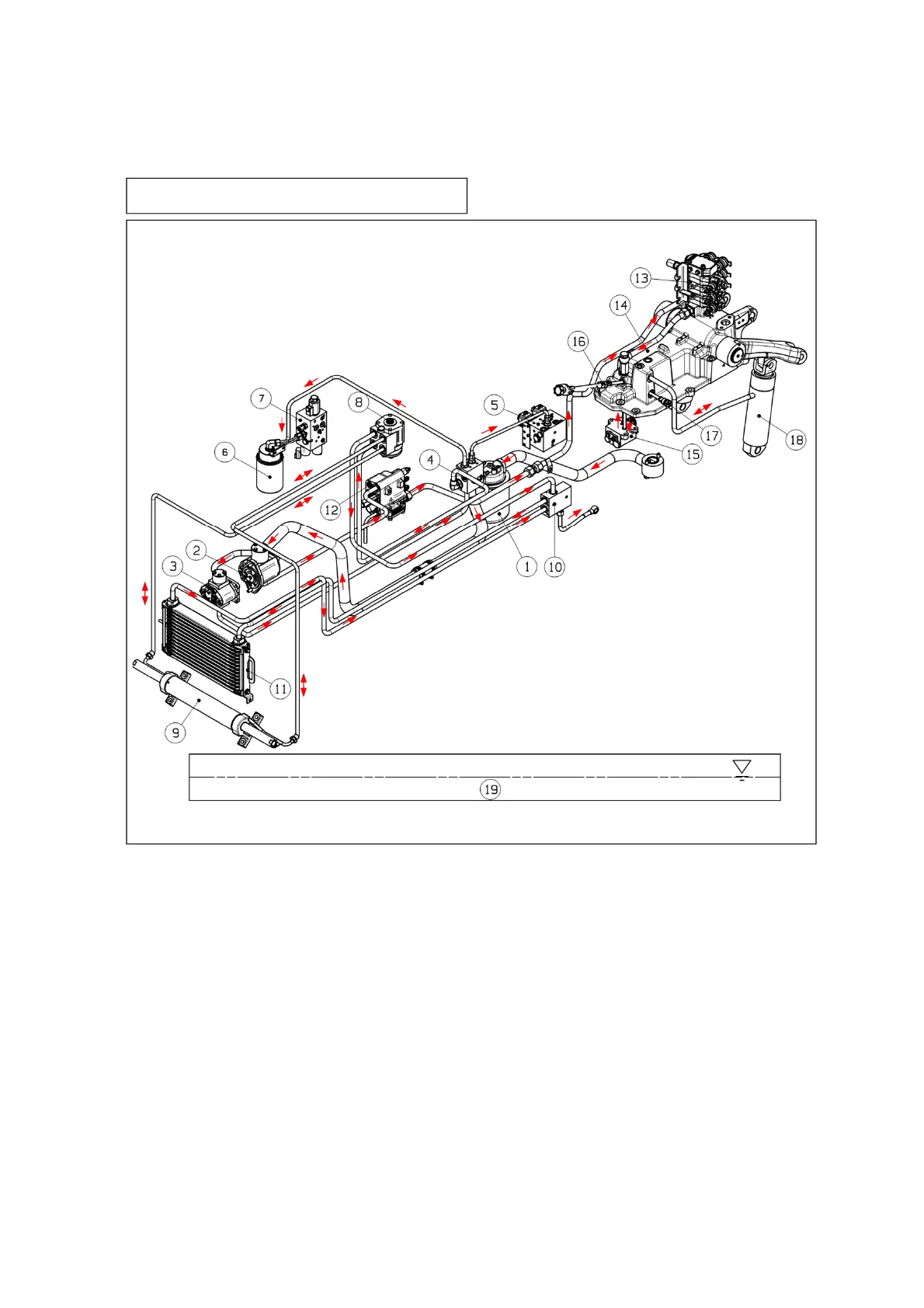

(7) Hydraulic System Diagram
1. Hydraulic oil filter
2. Hydraulic lift pump
3. Steering pump
4. Sequence valve
5. TM control valve
6. Power shuttle filter (optional)
7. Power shuttle valve (optional)
8. Steering unit
9. Steering cylinder
10. Oil cooler valve
11. Oil cooler
12. Front loader valve /
Front outlet block (optional)
13. Remote control valve
(optional)
14. Hydraulic lift housing
15. Hydraulic lift control valve
16. Down speed control valve
17. Safety valve
18. Hydraulic lift cylinder
19. Oil tank (TM case)
Mechanical Hydraulic Lift (MHL)
